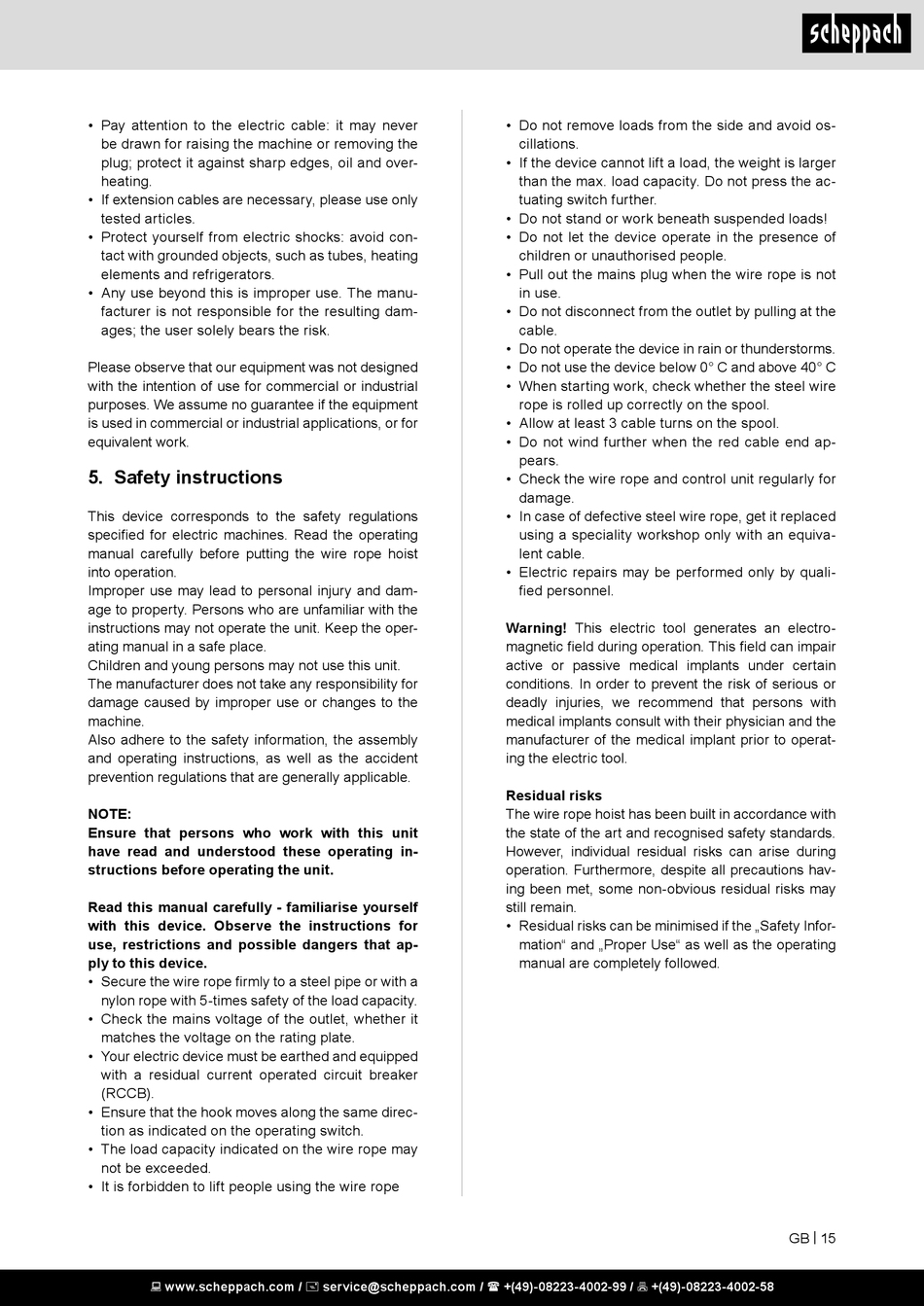

Safety Instructions - Scheppach HRS250 Original Bedienungsanleitung

• Pay attention to the electric cable: it may never
be drawn for raising the machine or removing the
plug; protect it against sharp edges, oil and over-
heating.
• If extension cables are necessary, please use only
tested articles.
• Protect yourself from electric shocks: avoid con-
tact with grounded objects, such as tubes, heating
elements and refrigerators.
• Any use beyond this is improper use. The manu-
facturer is not responsible for the resulting dam-
ages; the user solely bears the risk.
Please observe that our equipment was not designed
with the intention of use for commercial or industrial
purposes. We assume no guarantee if the equipment
is used in commercial or industrial applications, or for
equivalent work.

5. Safety instructions

This device corresponds to the safety regulations
specified for electric machines. Read the operating
manual carefully before putting the wire rope hoist
into operation.
Improper use may lead to personal injury and dam-
age to property. Persons who are unfamiliar with the
instructions may not operate the unit. Keep the oper-
ating manual in a safe place.
Children and young persons may not use this unit.
The manufacturer does not take any responsibility for
damage caused by improper use or changes to the
machine.
Also adhere to the safety information, the assembly
and operating instructions, as well as the accident
prevention regulations that are generally applicable.
NOTE:
Ensure that persons who work with this unit
have read and understood these operating in-
structions before operating the unit.
Read this manual carefully - familiarise yourself
with this device. Observe the instructions for
use, restrictions and possible dangers that ap-
ply to this device.
• Secure the wire rope firmly to a steel pipe or with a
nylon rope with 5-times safety of the load capacity.
• Check the mains voltage of the outlet, whether it
matches the voltage on the rating plate.
• Your electric device must be earthed and equipped
with a residual current operated circuit breaker
(RCCB).
• Ensure that the hook moves along the same direc-
tion as indicated on the operating switch.
• The load capacity indicated on the wire rope may
not be exceeded.
• It is forbidden to lift people using the wire rope
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Do not remove loads from the side and avoid os-
cillations.
• If the device cannot lift a load, the weight is larger
than the max. load capacity. Do not press the ac-
tuating switch further.
• Do not stand or work beneath suspended loads!
• Do not let the device operate in the presence of
children or unauthorised people.
• Pull out the mains plug when the wire rope is not
in use.
• Do not disconnect from the outlet by pulling at the
cable.
• Do not operate the device in rain or thunderstorms.
• Do not use the device below 0° C and above 40° C
• When starting work, check whether the steel wire
rope is rolled up correctly on the spool.
• Allow at least 3 cable turns on the spool.
• Do not wind further when the red cable end ap-
pears.
• Check the wire rope and control unit regularly for
damage.
• In case of defective steel wire rope, get it replaced
using a speciality workshop only with an equiva-
lent cable.
• Electric repairs may be performed only by quali-
fied personnel.
Warning! This electric tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain
conditions. In order to prevent the risk of serious or
deadly injuries, we recommend that persons with
medical implants consult with their physician and the
manufacturer of the medical implant prior to operat-
ing the electric tool.
Residual risks
The wire rope hoist has been built in accordance with
the state of the art and recognised safety standards.
However, individual residual risks can arise during
operation. Furthermore, despite all precautions hav-
ing been met, some non-obvious residual risks may
still remain.
• Residual risks can be minimised if the „Safety Infor-
mation" and „Proper Use" as well as the operating
manual are completely followed.
GB | 15
