1.5

Description of Socket X3A

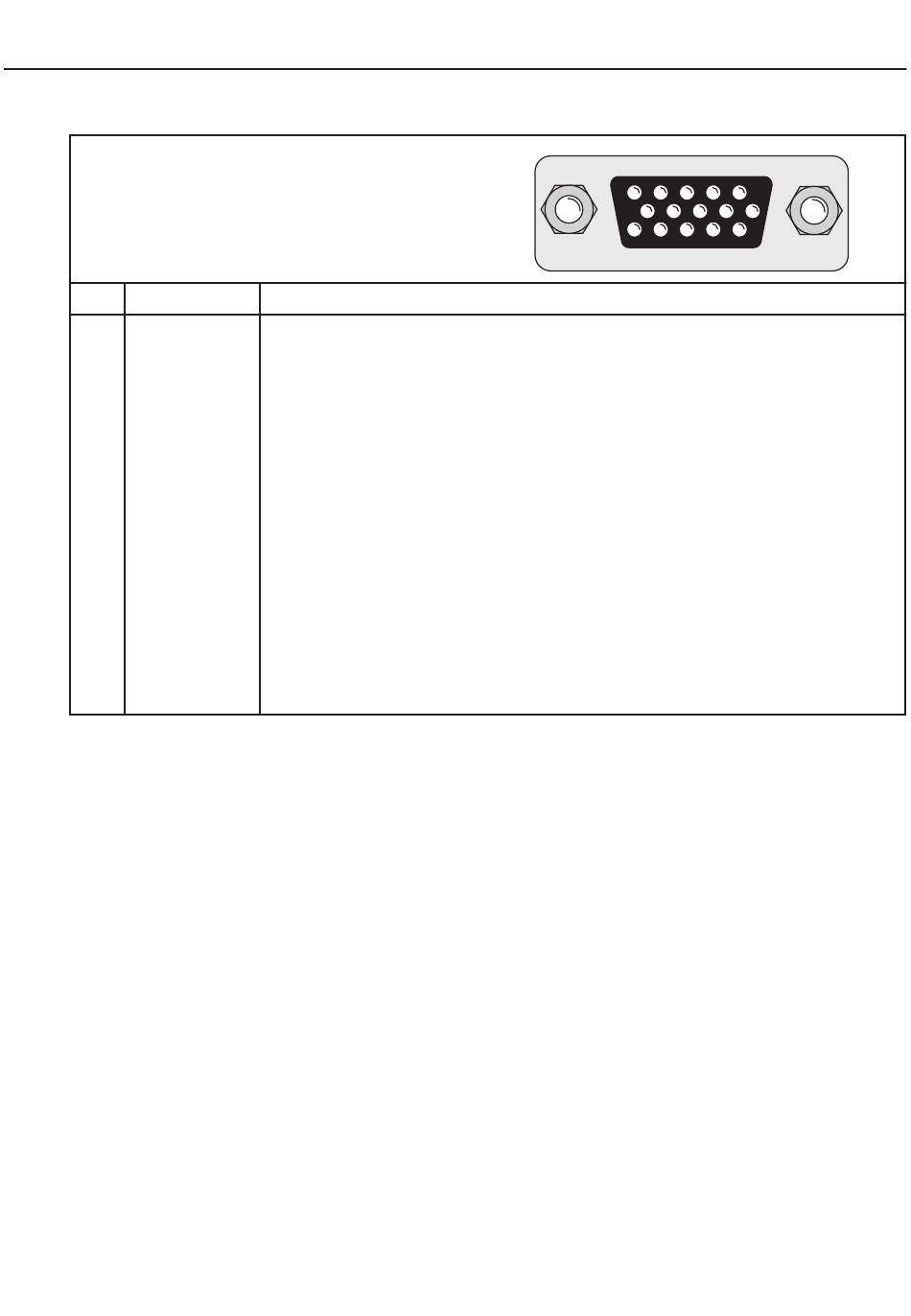

Socket X3A (top view)
PIN Name
1
2
3 REF_COS
4 REF_SIN
5
6
7
8 COS+
9 SIN+
10 +7,5 V
11
12
13 COM
14 -DATA
15 +DATA
1.6

Power supply

1.6.1 Max. Load Capacity in Dependence of Voltage Supply

Max. load capacity at +7,5 V:
The specified current is reduced by the current taken from the second interface (see
application manual Chapter 6.10).
10
Description
- -
- -
signal input A- (difference signal to COS+)
signal input B- (difference signal to SIN+)
- -
- -
- -
signal input A (absolute track for counter and direction detection)
signal input B (absolute track for counter and direction detection)
power supply for encoder
- -
- -
reference potential for power supply
data channel RS485
data channel RS485
SubD
15pole
300 mA
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
