2. Lift the extractor hood and hang it on the wall bracket.
3. Two additional 8 mm drillings are required to fix the appliance.
a) Remove the aluminium grease filter(s).

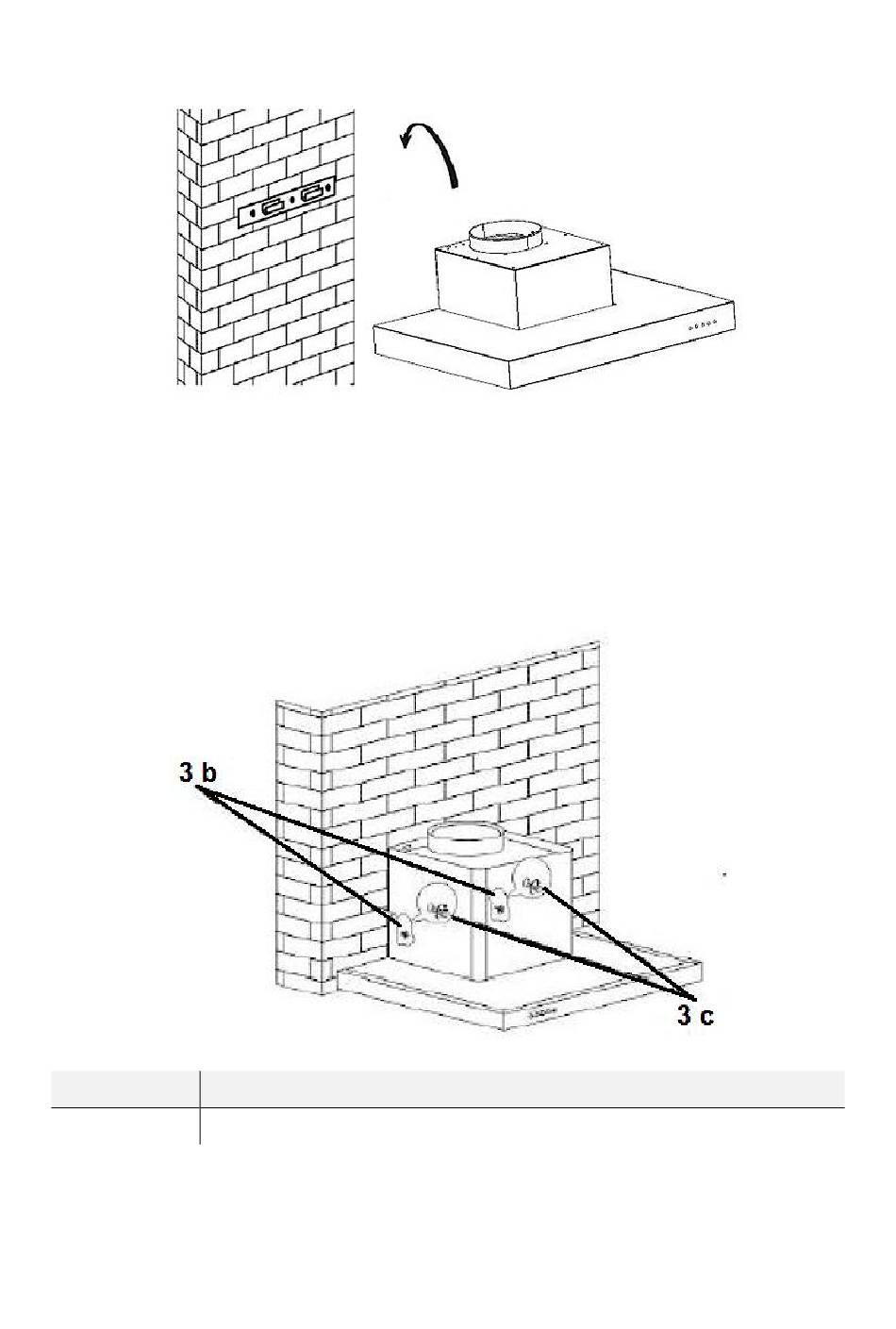

b) Mark the position of the 2 drill holes; s. fig. below.
c) Remove the extractor hood from the wall bracket.
d) Drill two Ø 8 mm holes at the marked points.
e) Insert the fixing material (dowels) into the wall.
3 b
3 c
M
ARKINGS FOR THE DRILL HOLES
S
CREWS
~ ~
43
/
DOWELS
(2x 4*30 mm)
