b. I
NSTALLATION OF THE CHIMNEY

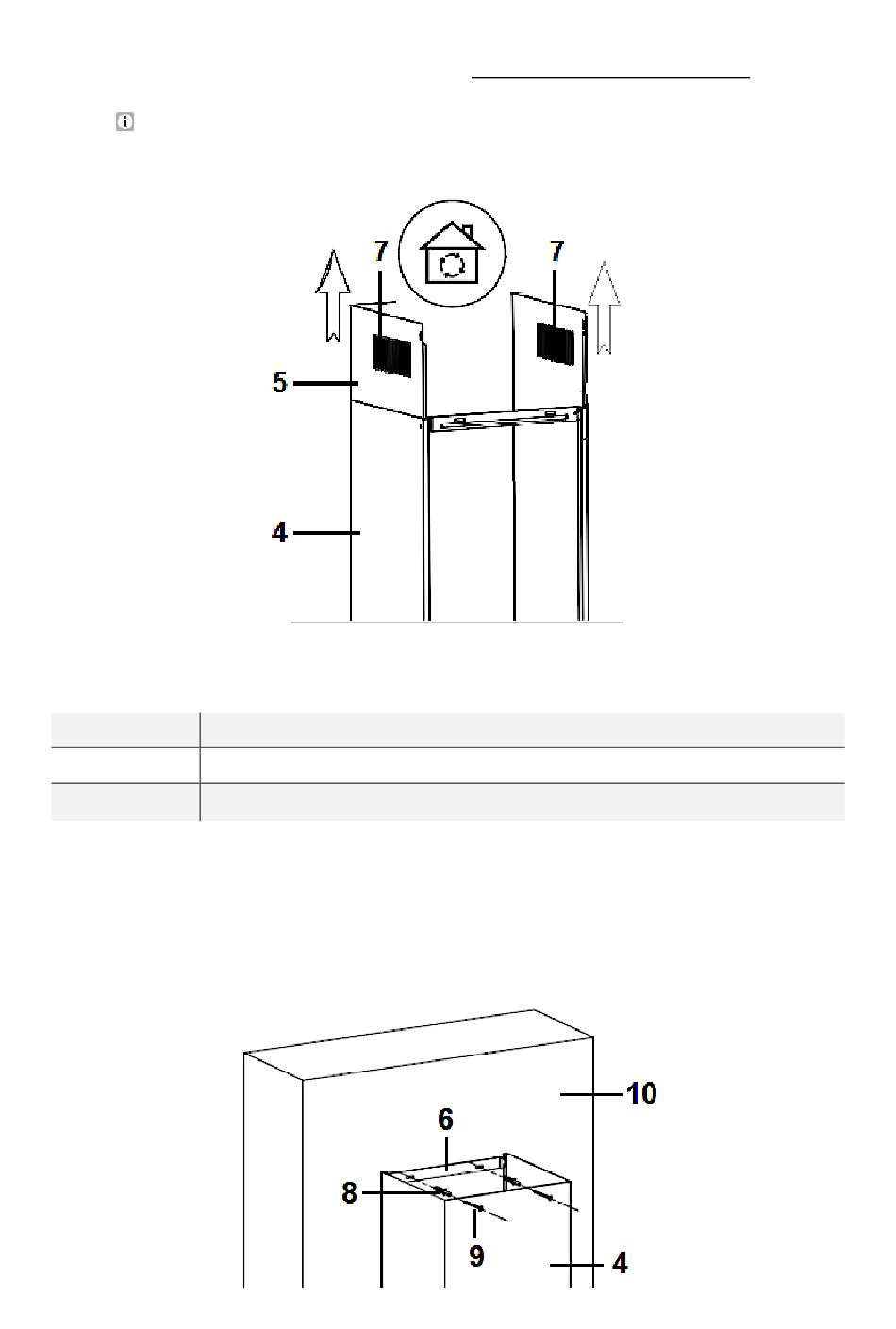

The air slots (7) of the upper chimney (5) must face upwards and not be
covered by the lower chimney (4); s. fig. below.
4
5
7
9. Place the chimney on the extractor hood.
10. Mark the position of the drill holes for the lower chimney bracket (6). Drill the
holes at the marked points. Then fix the lower chimney bracket (6) on the wall
(10) properly using the appropriate fixing material (screws: 2x 4*30 mm / 9).
Fig. similar: fig serves as an example only.
L
A
IR SLOTS
~
47
R
/
ECIRCULATION MODE
OWER CHIMNEY
U
PPER CHIMNEY
(both sides)
~
