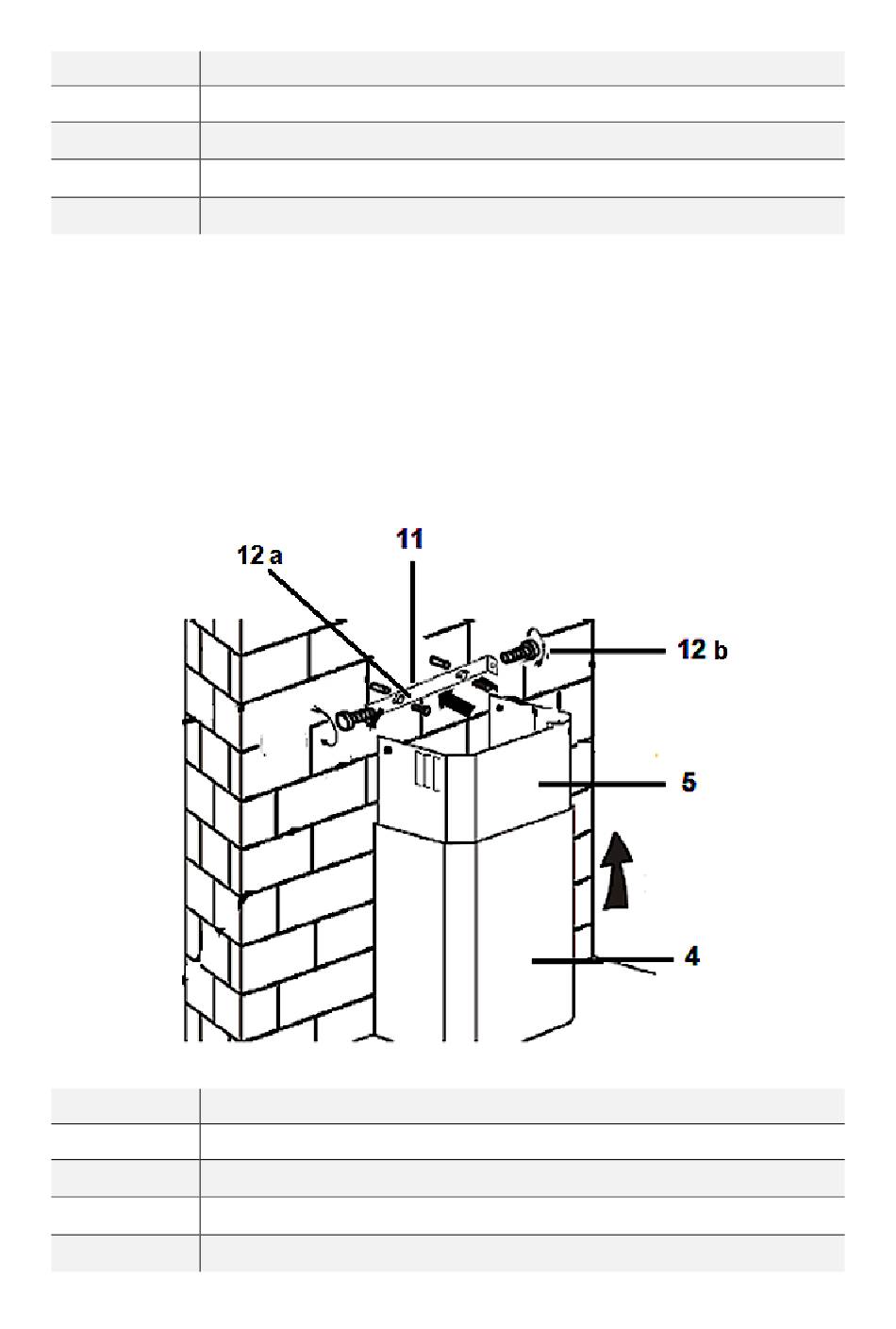

11. Pull out the upper chimney (5). Adjust the upper chimney relevant to the height
you desire; s. fig. below.
12. When you have reached your desired height, mark the drill holes for the upper
chimney bracket (11). Drill the holes to install the upper chimney bracket. Then
fix the upper chimney bracket on the wall properly using the appropriate fixing
material (screws: 2x 4*30 mm / 12 a).
13. Fix the upper chimney (5) on the chimney bracket (11) properly using 2 screws
(4*8 mm / 12 b); s. fig. below.
4
5
11
12 a
12 b
L
OWER CHIMNEY
LOWER CHIMNEY BRACKET
D
OWELS
S (2x 4*30 mm)
CREWS
W
ALL
L
OWER CHIMNEY
U
PPER CHIMNEY
U
PPER CHIMNEY BRACKET
S (2x 4*30 mm)
CREWS
S (2x 4*8 mm)
CREWS
~ ~
