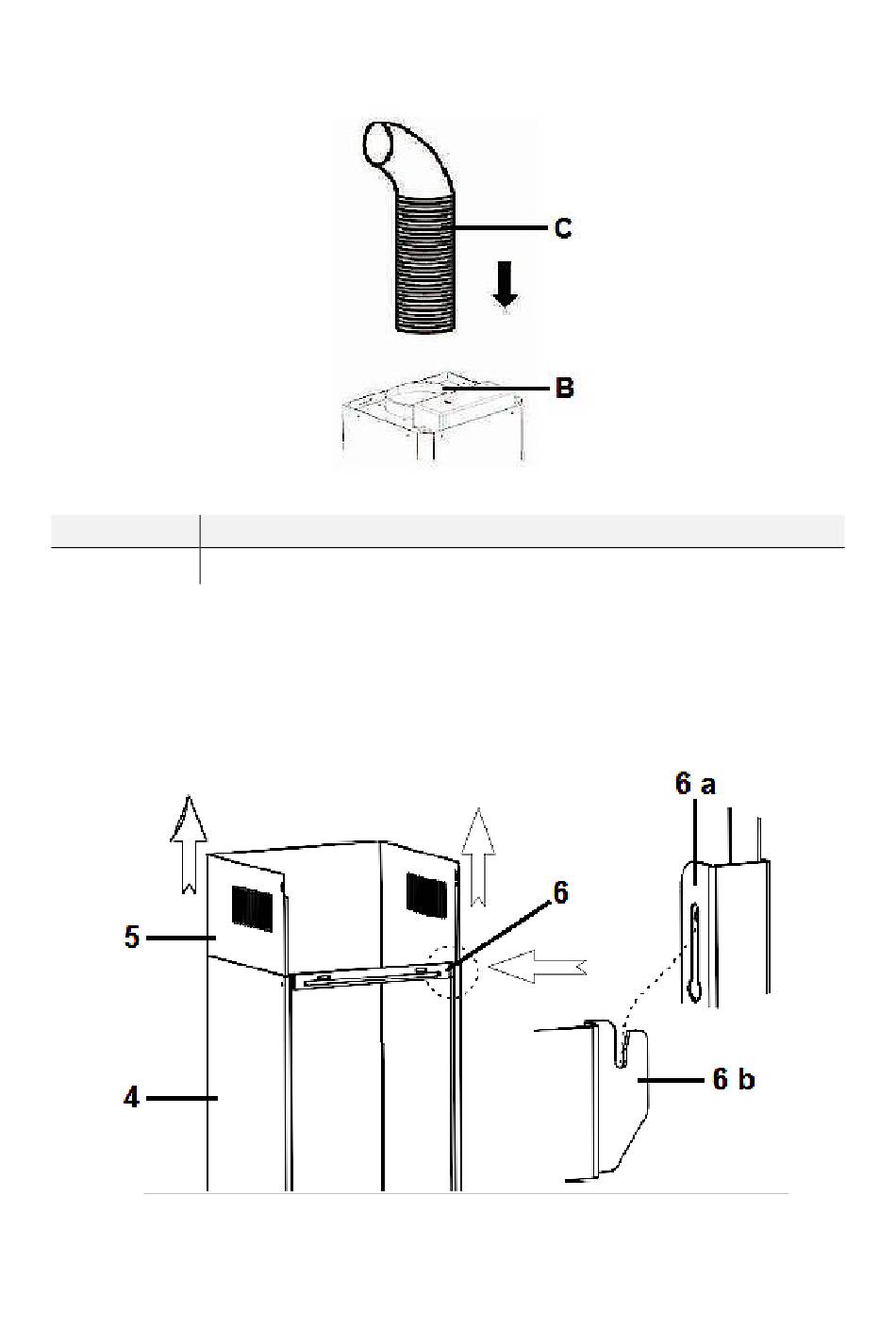

7. Install the exhaust hose on the air outlet; s. fig. below.
B
C
8. Insert the upper chimney (5) into the lower chimney (4). Hang the fixing holes
(6 a) to the fixing holders (6 b) to fix the lower chimney bracket on the lower
chimney; as described on the drawing below. Before installation, observe steps
8 a and 8 b; s. below.
Fig. similar: fig serves as an example only.
~
