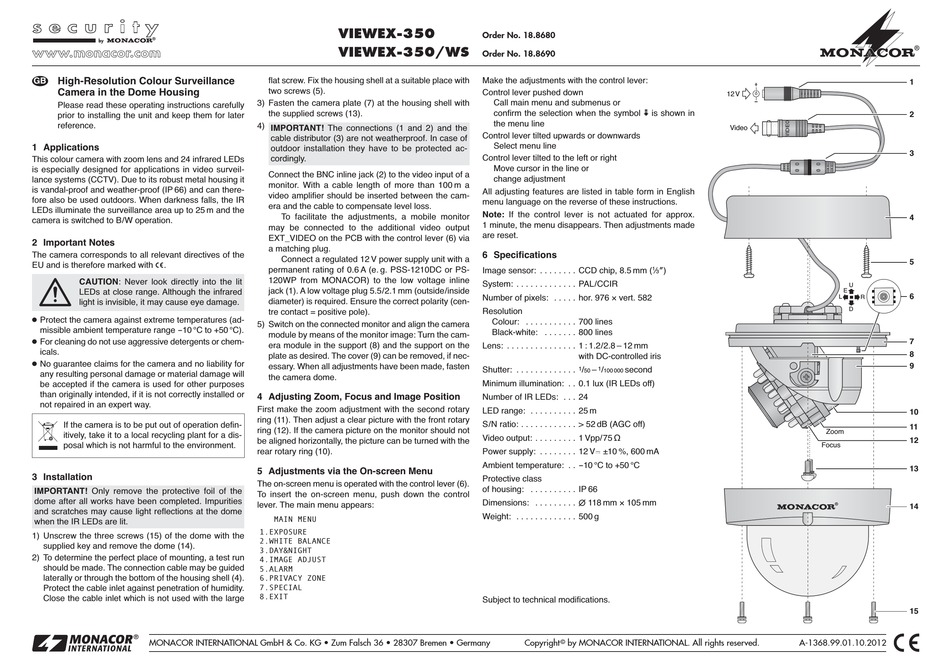

High-Resolution Colour Surveillance
Camera in the Dome Housing
Please read these operating instructions carefully
prior to installing the unit and keep them for later
reference.
1 Applications
This colour camera with zoom lens and 24 infrared LEDs
is especially designed for applications in video surveil-
lance systems (CCTV). Due to its robust metal housing it
is vandal-proof and weather-proof (IP 66) and can there-
fore also be used outdoors. When darkness falls, the IR
LEDs illuminate the surveillance area up to 25 m and the
camera is switched to B / W operation.
2 Important Notes
The camera corresponds to all relevant directives of the
EU and is therefore marked with
.
CAUTION: Never look directly into the lit
LEDs at close range. Although the infrared
light is invisible, it may cause eye damage.
G
Protect the camera against extreme temperatures (ad-
missible ambient temperature range -10 °C to +50 °C).
G
For cleaning do not use aggressive detergents or chem-
icals.
G
No guarantee claims for the camera and no liability for
any resulting personal damage or material damage will
be accepted if the camera is used for other purposes
than originally intended, if it is not correctly installed or
not repaired in an expert way.
If the camera is to be put out of operation defin-
itively, take it to a local recycling plant for a dis-
posal which is not harmful to the environment.
3 Installation
IMPORTANT! Only remove the protective foil of the
dome after all works have been completed. Impurities
and scratches may cause light reflections at the dome
when the IR LEDs are lit.
1) Unscrew the three screws (15) of the dome with the
supplied key and remove the dome (14).
2) To determine the perfect place of mounting, a test run
should be made. The connection cable may be guided
laterally or through the bottom of the housing shell (4).
Protect the cable inlet against penetration of humidity.
Close the cable inlet which is not used with the large
®
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
VIEWEX-350
VIEWEX-350/ WS
flat screw. Fix the housing shell at a suitable place with
two screws (5).
3) Fasten the camera plate (7) at the housing shell with
the supplied screws (13).
4)
IMPORTANT! The connections (1 and 2) and the
cable distributor (3) are not weatherproof. In case of
outdoor installation they have to be protected ac-
cordingly.
Connect the BNC inline jack (2) to the video input of a
monitor. With a cable length of more than 100 m a
video amplifier should be inserted between the cam-
era and the cable to compensate level loss.
To facilitate the adjustments, a mobile monitor
may be connected to the additional video output
EXT_VIDEO on the PCB with the control lever (6) via
a matching plug.
Connect a regulated 12 V power supply unit with a
permanent rating of 0.6 A (e. g. PSS-1210DC or PS-
120WP from MONACOR) to the low voltage inline
jack (1). A low voltage plug 5.5 / 2.1 mm (outside / inside
diameter) is required. Ensure the correct polarity (cen-
tre contact = positive pole).
5) Switch on the connected monitor and align the camera
module by means of the monitor image: Turn the cam-
era module in the support (8) and the support on the
plate as desired. The cover (9) can be removed, if nec-
essary. When all adjustments have been made, fasten
the camera dome.
4 Adjusting Zoom, Focus and Image Position
First make the zoom adjustment with the second rotary
ring (11). Then adjust a clear picture with the front rotary
ring (12). If the camera picture on the monitor should not
be aligned horizontally, the picture can be turned with the
rear rotary ring (10).
5 Adjustments via the On-screen Menu
The on-screen menu is operated with the control lever (6).
To insert the on-screen menu, push down the control
lever. The main menu appears:
MAIN MENU
1.EXPOSURE
2.WHITE BALANCE
3.DAY&NIGHT
4.IMAGE ADJUST
5.ALARM
6.PRIVACY ZONE
7.SPECIAL
8.EXIT
Order No. 18.8680
Order No. 18.8690
Make the adjustments with the control lever:
Control lever pushed down
Call main menu and submenus or
confirm the selection when the symbol
is shown in
the menu line
Control lever tilted upwards or downwards
Select menu line
Control lever tilted to the left or right
Move cursor in the line or
change adjustment
All adjusting features are listed in table form in English
menu language on the reverse of these instructions.
Note: If the control lever is not actuated for approx.
1 minute, the menu disappears. Then adjustments made
are reset.
6 Specifications
Image sensor: . . . . . . . . CCD chip, 8.5 mm (
1
⁄
")
3
System: . . . . . . . . . . . . . PAL / CCIR
Number of pixels: . . . . . hor. 976 × vert. 582
Resolution
Colour: . . . . . . . . . . . 700 lines
Black-white: . . . . . . . 800 lines
Lens: . . . . . . . . . . . . . . . 1 : 1.2 / 2.8 – 12 mm
with DC-controlled iris
Shutter: . . . . . . . . . . . . .
/
–
/
second
1
1
50
100 000
Minimum illumination: . . 0.1 lux (IR LEDs off)
Number of IR LEDs: . . . 24
LED range: . . . . . . . . . . 25 m
S / N ratio: . . . . . . . . . . . . > 52 dB (AGC off)
Video output: . . . . . . . . . 1 Vpp/ 75 Ω
Power supply: . . . . . . . . 12 V ±10 %, 600 mA
Ambient temperature: . . -10 °C to +50 °C
Protective class
of housing: . . . . . . . . . . IP 66
Dimensions: . . . . . . . . . ∅ 118 mm × 105 mm
Weight: . . . . . . . . . . . . . 500 g
Subject to technical modifications.
Copyright
©
by MONACOR INTERNATIONAL. All rights reserved.
12 V
Video
U
E
L
R
D
Zoom
Focus
A-1368.99.01.10.2012
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
