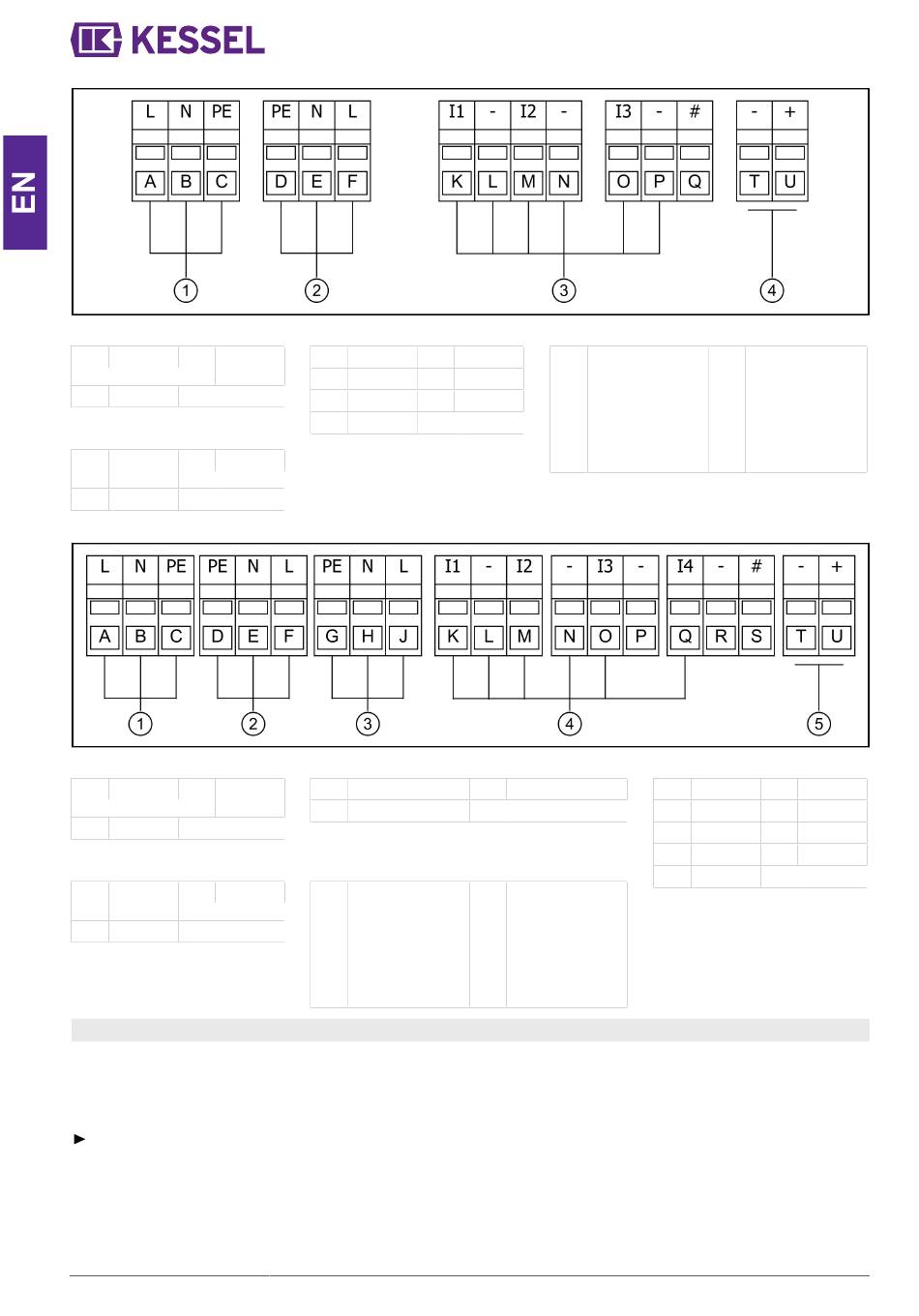

Connection diagram (Mono)
(1) Voltage
(A) Brown (C) Green/
yellow
(B) Blue
(2) Wastewater pump
(D) Green/ (F) Brown
yellow
(E) Blue
Connection diagram (Duo Tronic)
(1) Voltage
(A) Brown (C) Green/
yellow
(B) Blue
(2) Wastewater pump
(D) Green/ (F) Brown
yellow
(E) Blue
4.10 Mount the accessory parts
The terminal block "Alarm" has been preset for connection of the audible alarm unit. If a potential-free contact is to be used,
the terminal block must be cleared for this (see "Potential-free contact" section).
Prepare housing and cable duct (as explained in Chap. (see "Connect the probe"). Use the outside right cable duct.
Remote signal generator
Connect the remote signal generator (art. no. 20162) as shown on the connection diagram.
30 / 116
(3) Float switch
(K) Yellow (O) Grey
(L) White (P) Green
(M) Pink (Q) Not used
(N) Brown
(3) Wastewater pump (Duo)
(G) Green/yellow (J)
(H) Blue
(5) Alarm
(T) Connection for (U)
external remote
signal genera-
tor/potential-free
contact (option-
ally retrofittable
Art.No. 80074)
(4) Alarm
(T) Connection for
external remote
signal genera-
tor/potential-free
contact (option-
ally retrofittable
Art.No. 80074)
(4) Float switch
Brown (K)
(L)
(M)
(N)
(O)
Connection for
external remote
signal genera-
tor/potential-free
contact (option-
ally retrofittable
Art.No. 80074)
(U) Connection for
external remote
signal genera-
tor/potential-free
contact (option-
ally retrofittable
Art.No. 80074)
Yellow (P) Not used
White (Q) Green
Pink (R) Not used
Brown (S) Not used
Grey
