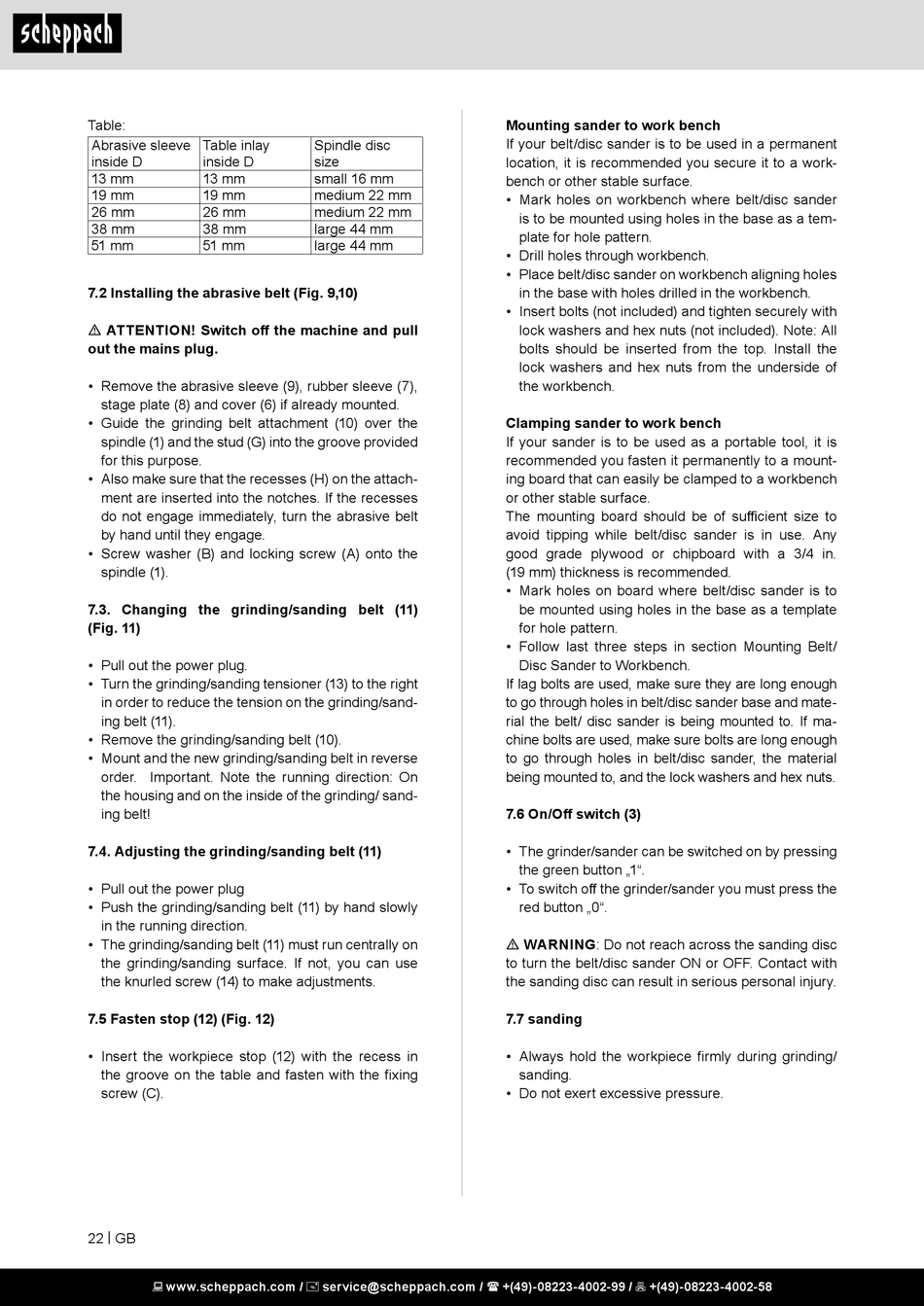

Table:
Abrasive sleeve Table inlay
inside D inside D
13 mm 13 mm
19 mm 19 mm
26 mm 26 mm
38 mm 38 mm
51 mm 51 mm
7.2 Installing the abrasive belt (Fig. 9,10)
m ATTENTION! Switch off the machine and pull
out the mains plug.
• Remove the abrasive sleeve (9), rubber sleeve (7),
stage plate (8) and cover (6) if already mounted.
• Guide the grinding belt attachment (10) over the
spindle (1) and the stud (G) into the groove provided
for this purpose.
• Also make sure that the recesses (H) on the attach­
ment are inserted into the notches. If the recesses
do not engage immediately, turn the abrasive belt
by hand until they engage.
• Screw washer (B) and locking screw (A) onto the
spindle (1).
7.3. Changing the grinding/sanding belt (11)
(Fig. 11)
• Pull out the power plug.
• Turn the grinding/sanding tensioner (13) to the right
in order to reduce the tension on the grinding/sand­
ing belt (11).
• Remove the grinding/sanding belt (10).
• Mount and the new grinding/sanding belt in reverse
order. Important. Note the running direction: On
the housing and on the inside of the grinding/ sand­
ing belt!
7.4. Adjusting the grinding/sanding belt (11)
• Pull out the power plug
• Push the grinding/sanding belt (11) by hand slowly
in the running direction.
• The grinding/sanding belt (11) must run centrally on
the grinding/sanding surface. If not, you can use
the knurled screw (14) to make adjustments.
7.5 Fasten stop (12) (Fig. 12)
• Insert the workpiece stop (12) with the recess in
the groove on the table and fasten with the fixing
screw (C).
22 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Spindle disc
size
small 16 mm
medium 22 mm
medium 22 mm
large 44 mm
large 44 mm
Mounting sander to work bench
If your belt/disc sander is to be used in a permanent
location, it is recommended you secure it to a work­
bench or other stable surface.
• Mark holes on workbench where belt/disc sander
is to be mounted using holes in the base as a tem­
plate for hole pattern.
• Drill holes through workbench.
• Place belt/disc sander on workbench aligning holes
in the base with holes drilled in the workbench.
• Insert bolts (not included) and tighten securely with
lock washers and hex nuts (not included). Note: All
bolts should be inserted from the top. Install the
lock washers and hex nuts from the underside of
the workbench.
Clamping sander to work bench
If your sander is to be used as a portable tool, it is
recommended you fasten it permanently to a mount­
ing board that can easily be clamped to a workbench
or other stable surface.
The mounting board should be of sufficient size to
avoid tipping while belt/disc sander is in use. Any
good grade plywood or chipboard with a 3/4 in.
(19 mm) thickness is recommended.
• Mark holes on board where belt/disc sander is to
be mounted using holes in the base as a template
for hole pattern.
• Follow last three steps in section Mounting Belt/
Disc Sander to Workbench.
If lag bolts are used, make sure they are long enough
to go through holes in belt/disc sander base and mate­
rial the belt/ disc sander is being mounted to. If ma­
chine bolts are used, make sure bolts are long enough
to go through holes in belt/disc sander, the material
being mounted to, and the lock washers and hex nuts.
7.6 On/Off switch (3)
• The grinder/sander can be switched on by pressing
the green button „1".
• To switch off the grinder/sander you must press the
red button „0".
m WARNING: Do not reach across the sanding disc
to turn the belt/disc sander ON or OFF. Contact with
the sanding disc can result in serious personal injury.
7.7 sanding
• Always hold the workpiece firmly during grinding/
sanding.
• Do not exert excessive pressure.
