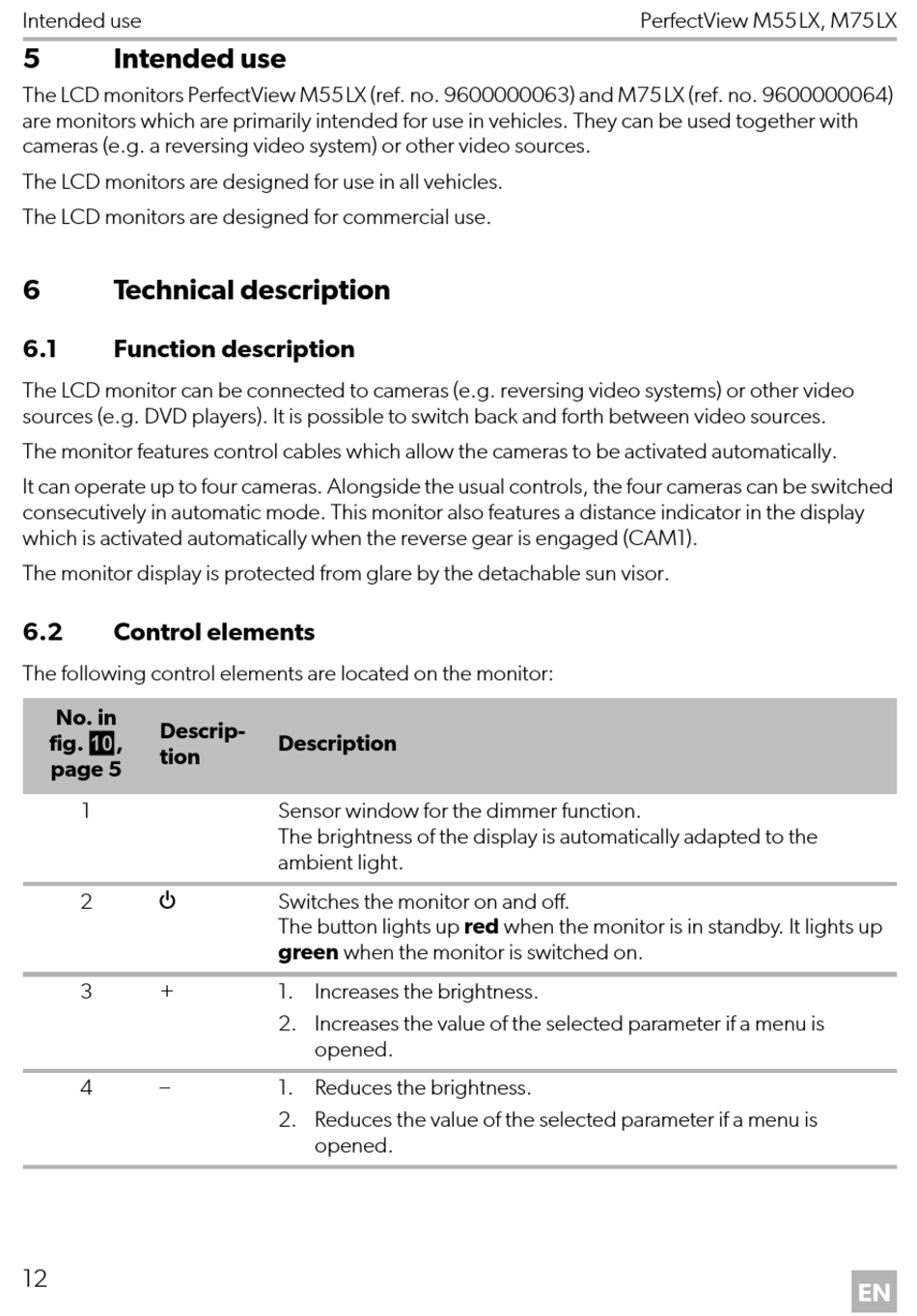

Intended use

5 Intended use
The LCD monitors PerfectView M55LX (ref. no. 9600000063) and M75LX (ref. no. 9600000064)
are monitors which are primarily intended for use in vehicles. They can be used together with
cameras (e.g. a reversing video system) or other video sources.
The LCD monitors are designed for use in all vehicles.
The LCD monitors are designed for commercial use.
6

Technical description

6.1

Function description

The LCD monitor can be connected to cameras (e.g. reversing video systems) or other video
sources (e.g. DVD players). It is possible to switch back and forth between video sources.
The monitor features control cables which allow the cameras to be activated automatically.
It can operate up to four cameras. Alongside the usual controls, the four cameras can be switched
consecutively in automatic mode. This monitor also features a distance indicator in the display
which is activated automatically when the reverse gear is engaged (CAM1).
The monitor display is protected from glare by the detachable sun visor.
6.2

Control elements

The following control elements are located on the monitor:
No. in
Descrip-
fig. 0,
tion
page 5
1
P
2
3 +
4 –
12
Description
Sensor window for the dimmer function.
The brightness of the display is automatically adapted to the
ambient light.
Switches the monitor on and off.
The button lights up red when the monitor is in standby. It lights up
green when the monitor is switched on.
1. Increases the brightness.
2. Increases the value of the selected parameter if a menu is
opened.
1. Reduces the brightness.
2. Reduces the value of the selected parameter if a menu is
opened.
