SAFETY INFORMATION
2.7

Hazard warnings and operational safety

2.8

Repairs

3

Product description

3.1

Device view

8
Tasks
Operation of the device for
the specific application
Please observe the safety notes and the warnings listed here and in other chapters
of these operating instructions to reduce the possibility of risks to health and avoid
dangerous situations.
The product is a replacement device. The device is not intended to be repaired. Interfer‐
ence with or modifications to the device on the part of the customer will invalidate any
warranty claims against SICK AG.
1
2
3

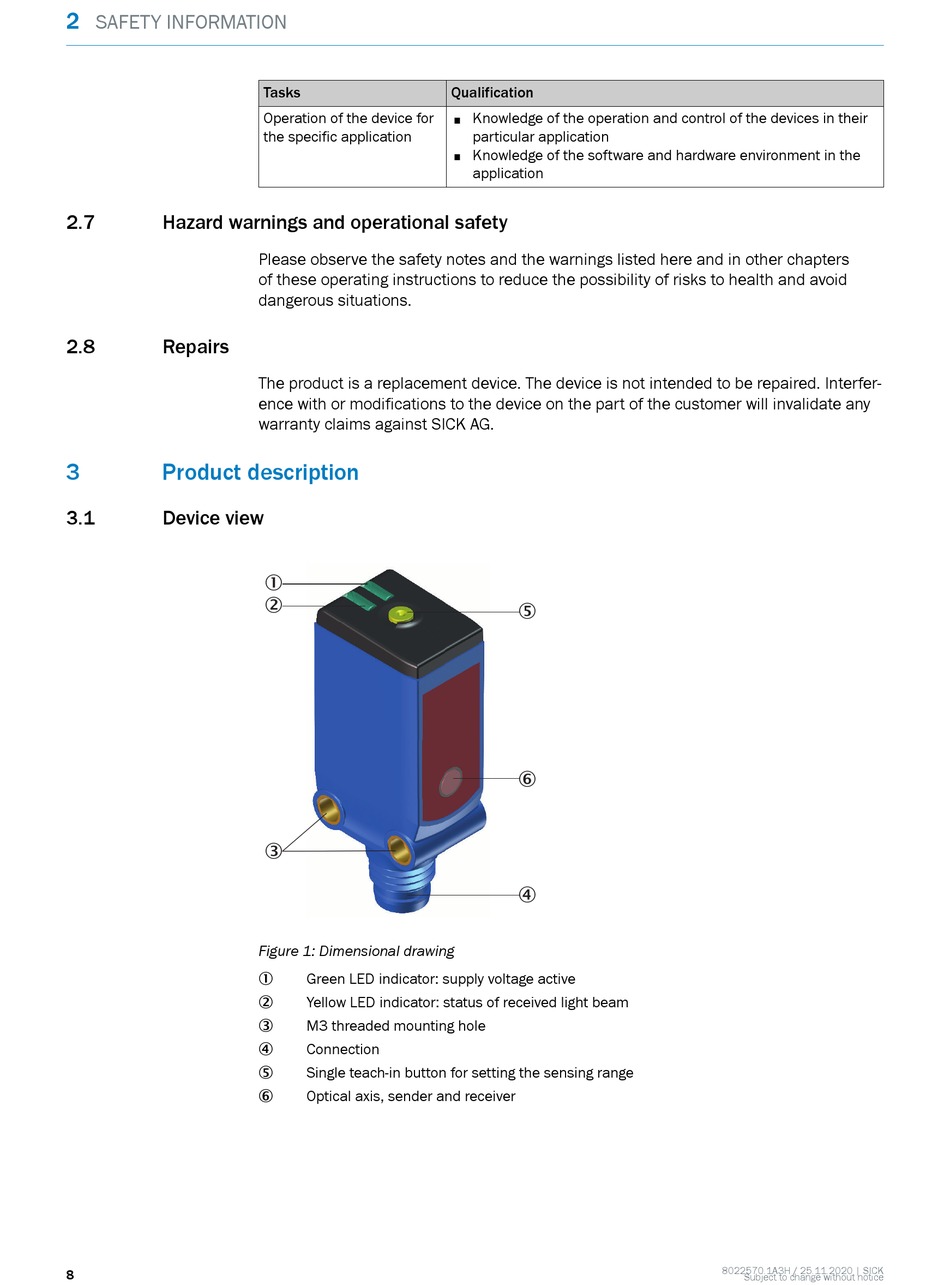

Figure 1: Dimensional drawing
Green LED indicator: supply voltage active
1
Yellow LED indicator: status of received light beam
2
M3 threaded mounting hole
3
Connection
4
Single teach-in button for setting the sensing range
5
Optical axis, sender and receiver
6
Qualification
Knowledge of the operation and control of the devices in their
■
particular application
Knowledge of the software and hardware environment in the
■
application
5
6
4
