10.2

Dimensional drawings

12.2
(0.48)
1
2
M8
3 4
5

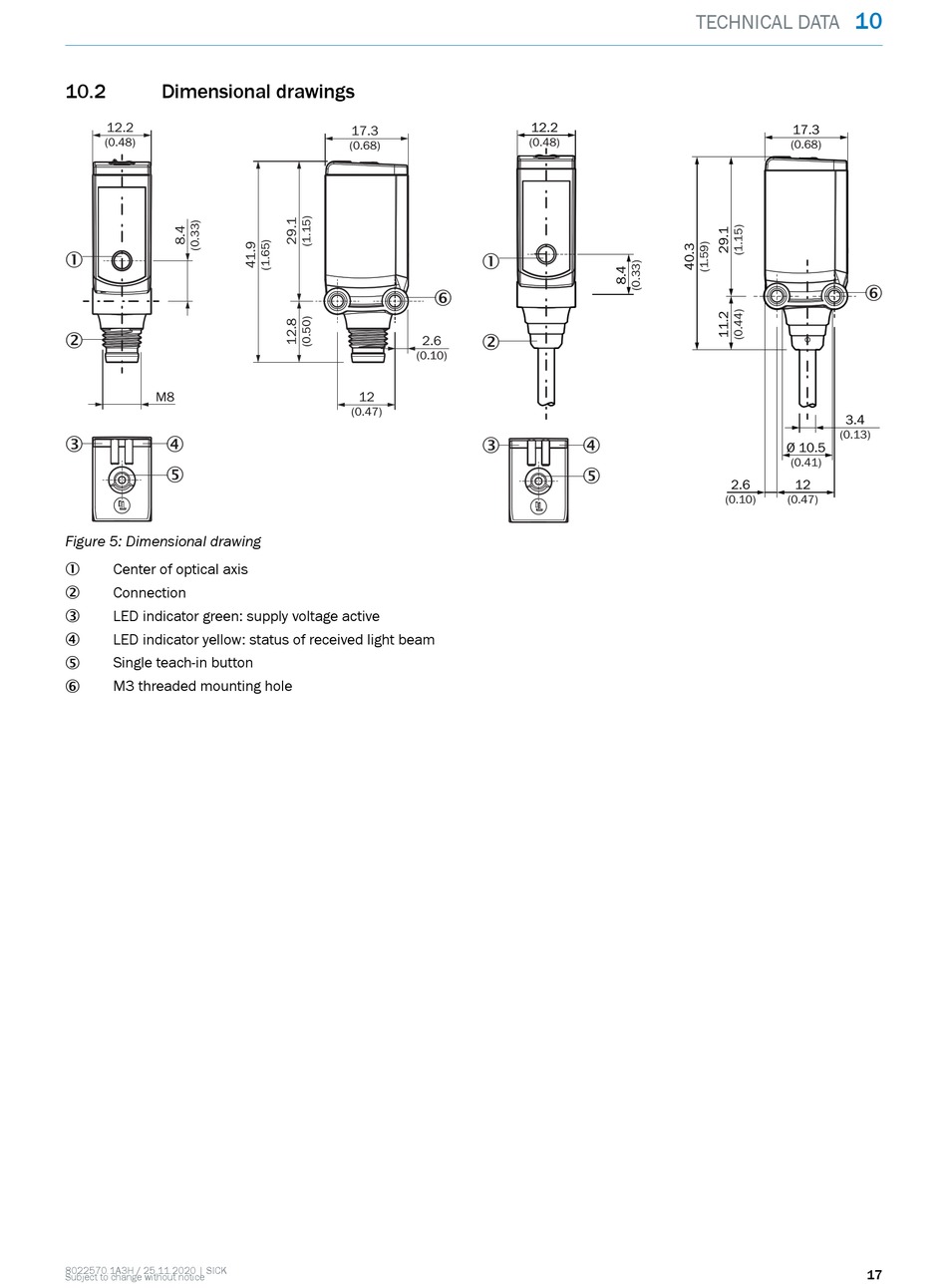

Figure 5: Dimensional drawing
Center of optical axis
1
Connection
2
LED indicator green: supply voltage active
3
LED indicator yellow: status of received light beam
4
Single teach-in button
5
M3 threaded mounting hole
6
8022570.1A3H / 25.11.2020 | SICK
Subject to change without notice
17.3
(0.68)
1
6
2
2.6
(0.10)
12
(0.47)
3
TECHNICAL DATA
12.2
(0.48)
4
5
10
17.3
(0.68)
6
3.4
(0.13)
Ø 10.5
(0.41)
2.6 12
(0.10) (0.47)
