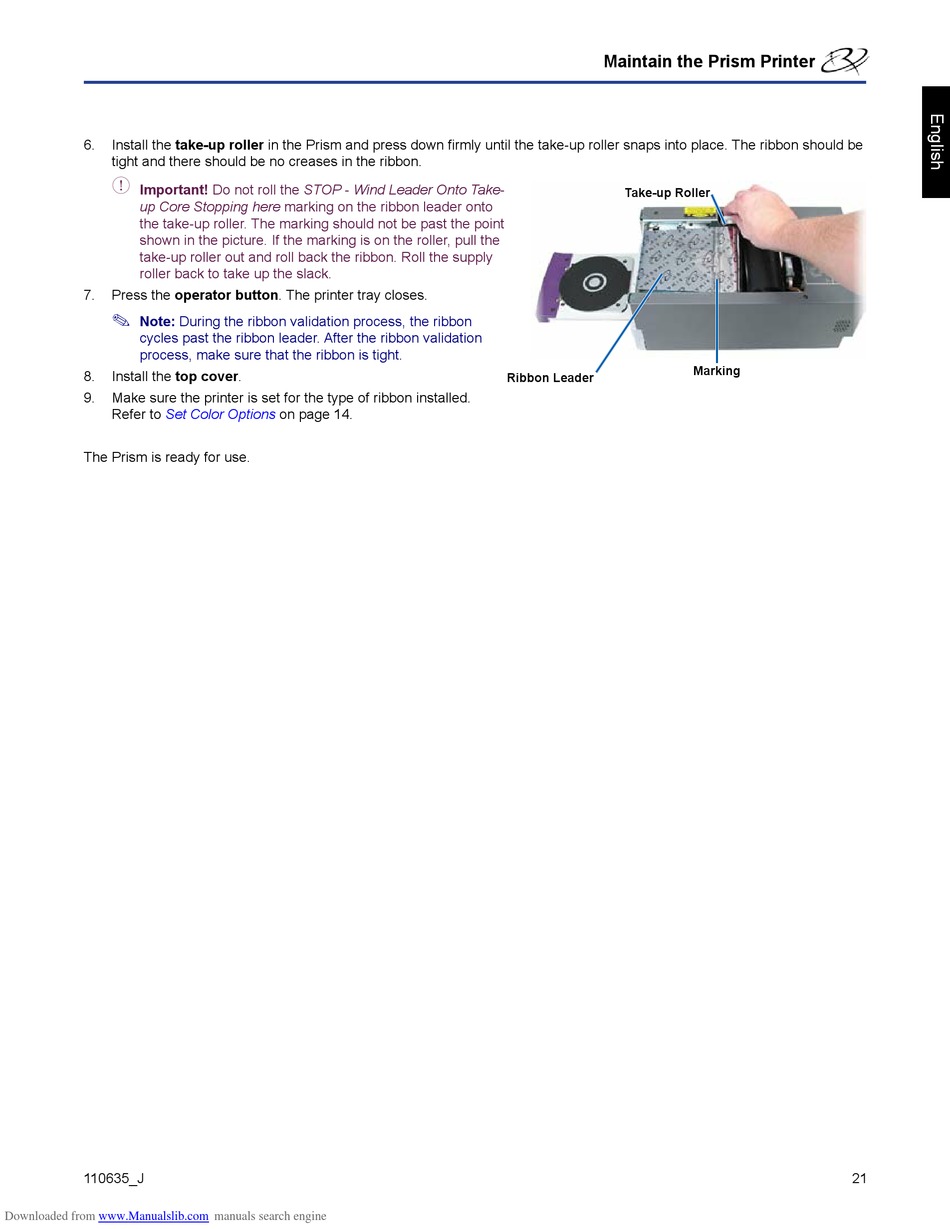

6. Install the take-up roller in the Prism and press down firmly until the take-up roller snaps into place. The ribbon should be
tight and there should be no creases in the ribbon.
-
Important!
up Core Stopping here marking on the ribbon leader onto
the take-up roller. The marking should not be past the point
shown in the picture. If the marking is on the roller, pull the
take-up roller out and roll back the ribbon. Roll the supply
roller back to take up the slack.
7. Press the operator button. The printer tray closes.

Note: During the ribbon validation process, the ribbon
cycles past the ribbon leader. After the ribbon validation
process, make sure that the ribbon is tight.
8. Install the top cover.
9. Make sure the printer is set for the type of ribbon installed.
Refer to Set Color Options
The Prism is ready for use.
110635_J
Downloaded from www.Manualslib.com
Do not roll the STOP - Wind Leader Onto Take-
on page 14.
manuals search engine
Maintain the Prism Printer
Take-up Roller
Ribbon Leader
Marking
