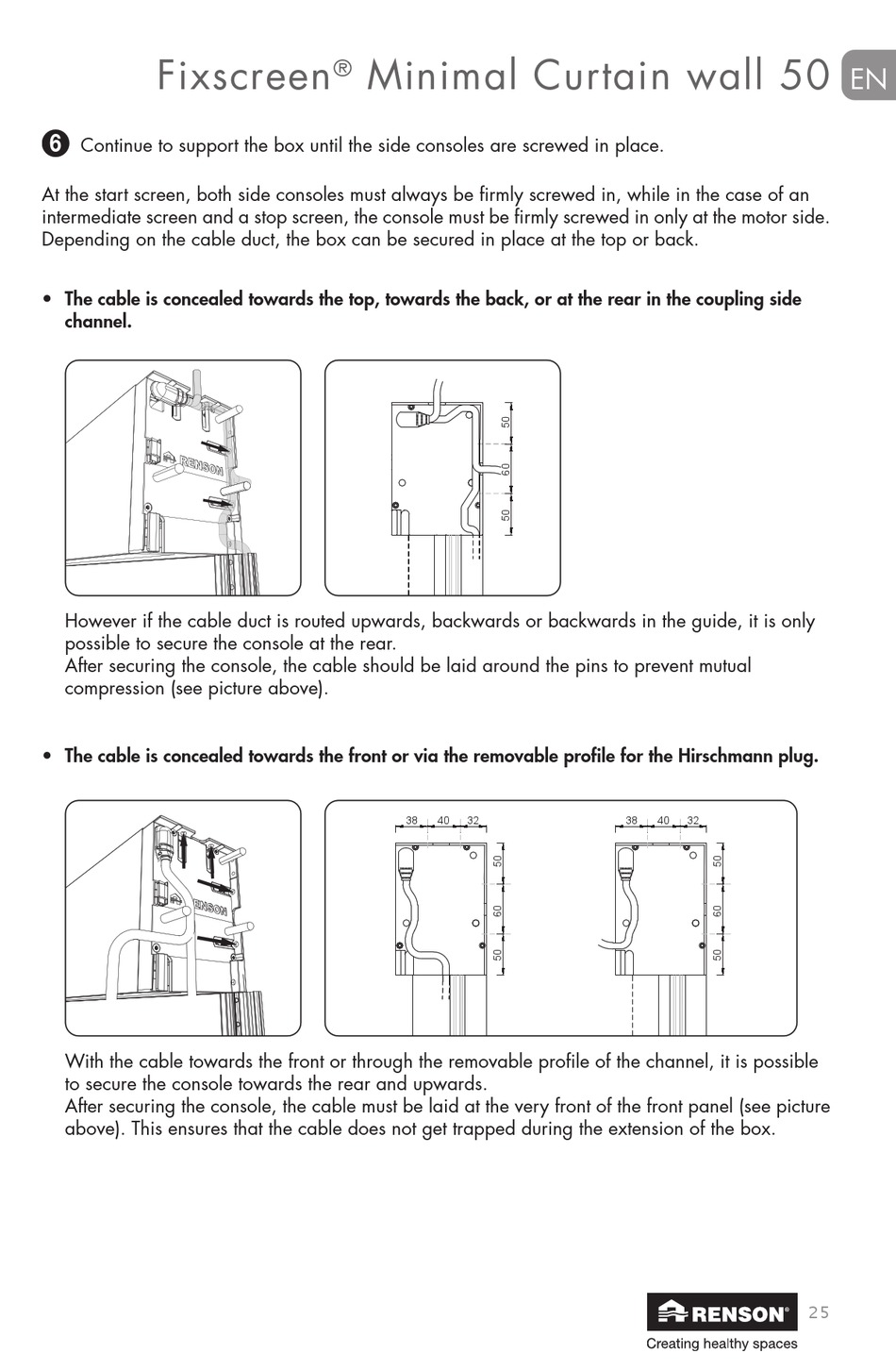

Renson Fixscreen Minimal Curtain wall 50 Montageanleitung Seite 25

114
6
Continue to support the box until the side consoles are screwed in place.
At the start screen, both side consoles must always be firmly screwed in, while in the case of an
intermediate screen and a stop screen, the console must be firmly screwed in only at the motor side.
4
Depending on the cable duct, the box can be secured in place at the top or back.
• The cable is concealed towards the top, towards the back, or at the rear in the coupling side
channel.
110
However if the cable duct is routed upwards, backwards or backwards in the guide, it is only
possible to secure the console at the rear.
After securing the console, the cable should be laid around the pins to prevent mutual
compression (see picture above).
• The cable is concealed towards the front or via the removable profile for the Hirschmann plug.
With the cable towards the front or through the removable profile of the channel, it is possible
to secure the console towards the rear and upwards.
After securing the console, the cable must be laid at the very front of the front panel (see picture
above). This ensures that the cable does not get trapped during the extension of the box.
110
