GeoMax Zoom70 Kurzanleitung Seite 14

Instrument com-
ponents part 2 of
2

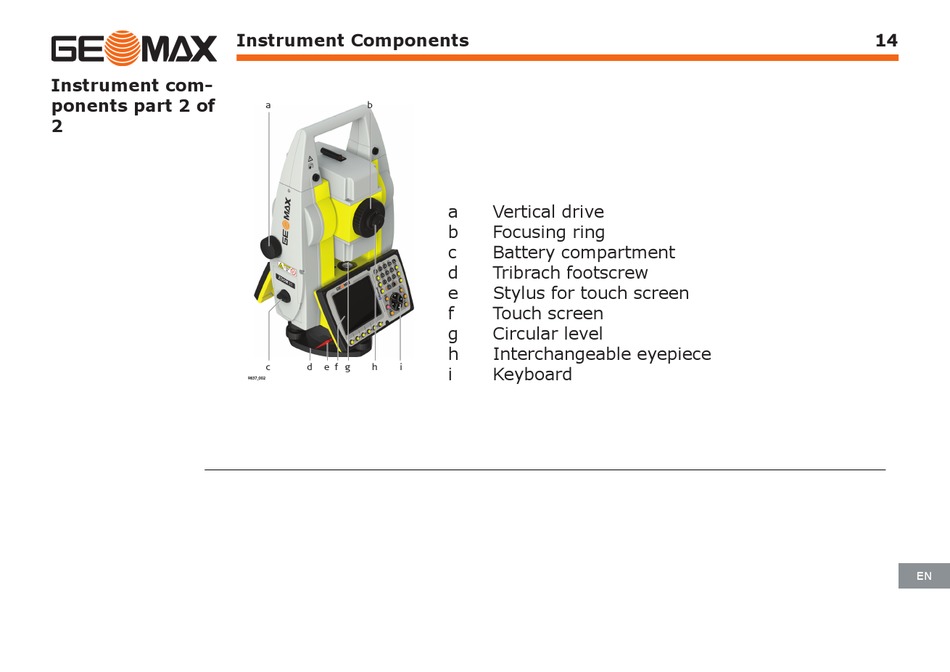

Instrument Components
a b
c d e f g h i
9837_002
a Vertical drive
b Focusing ring
c Battery compartment
d Tribrach footscrew
e Stylus for touch screen
f Touch screen
g Circular level
h Interchangeable eyepiece
i Keyboard
14
en
