2 mm displacement sensor system series ds821
EN
Instruction

6 Disassembly

Observe the safety information in chapter Safety!
Follow reverse order for disassembly:
6.1

Disconnecting the connecting plugs

see "Connection via extension cable" on page 49
6.2

Driver disassembly

6.2.1 Disassembling driver with assembly adapter on hat-rail

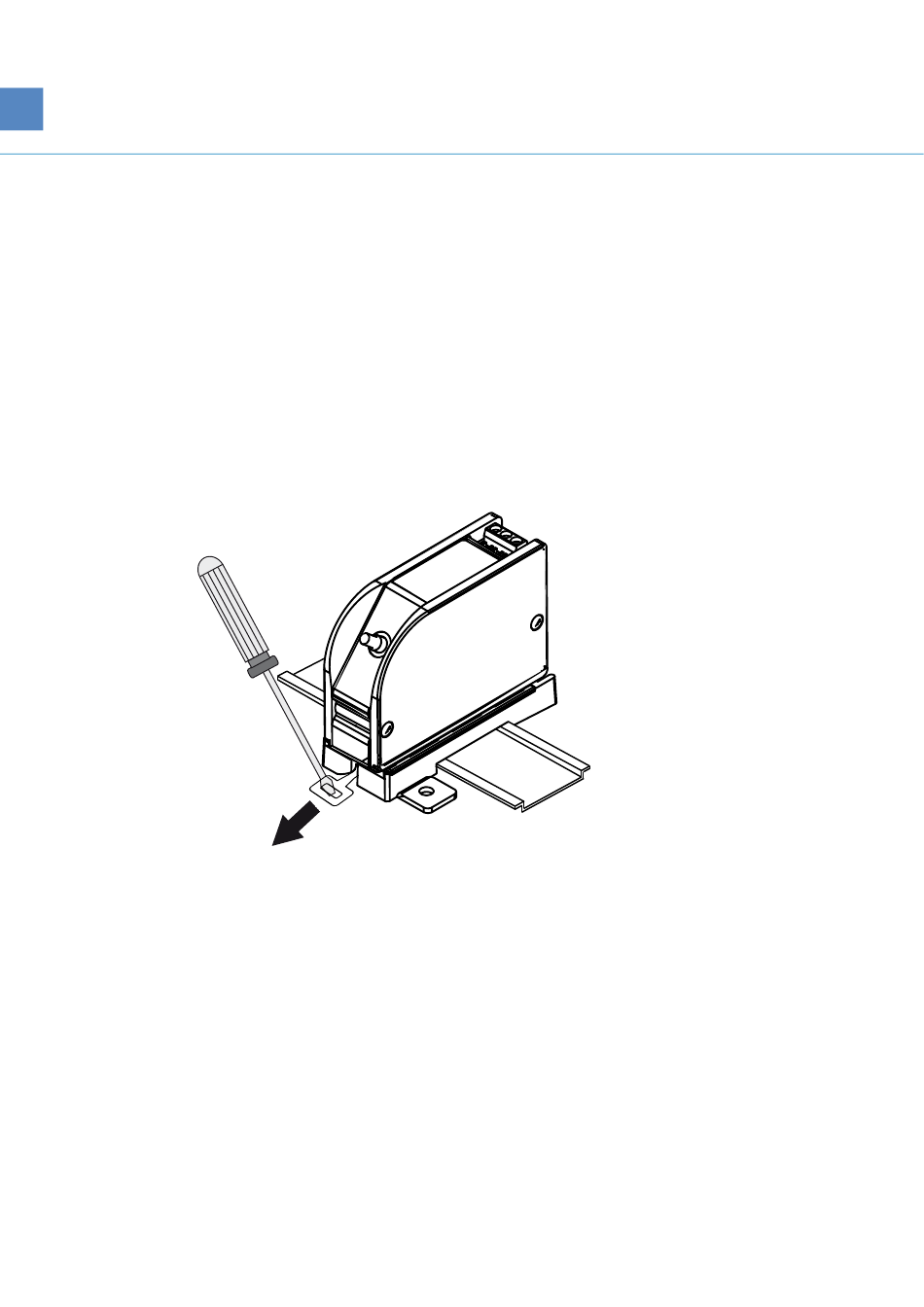

1. Use a screwdriver to pull the tab forward and vertically lift off the adapter containing the
driver.
2. To remove the assembly adapter, push the adapter's tappet (opposite of mounting tab)
downward and slide off the driver.

6.2.2 Disassembling driver with assembly adapter, screw-mounted

1. Remove screws
2. Remove assembly adapter
6.3

Replacing displacement sensor system components

1. Switch off voltage.
2. Replace the individual components with equivalent components.
3. Check that all parts of the displacement sensor system have been reconnected correctly.
4. Switch on voltage.
l
54 © Brüel & Kjaer Vibro GmbH / 2 mm ds821/14.9.20/technical specifications subject to change/C105227.001/V02
| Disassembly
