Assembly Instruction - Energetics POWER RUN 1060HRC Aufbauanleitung

Assembly instruction

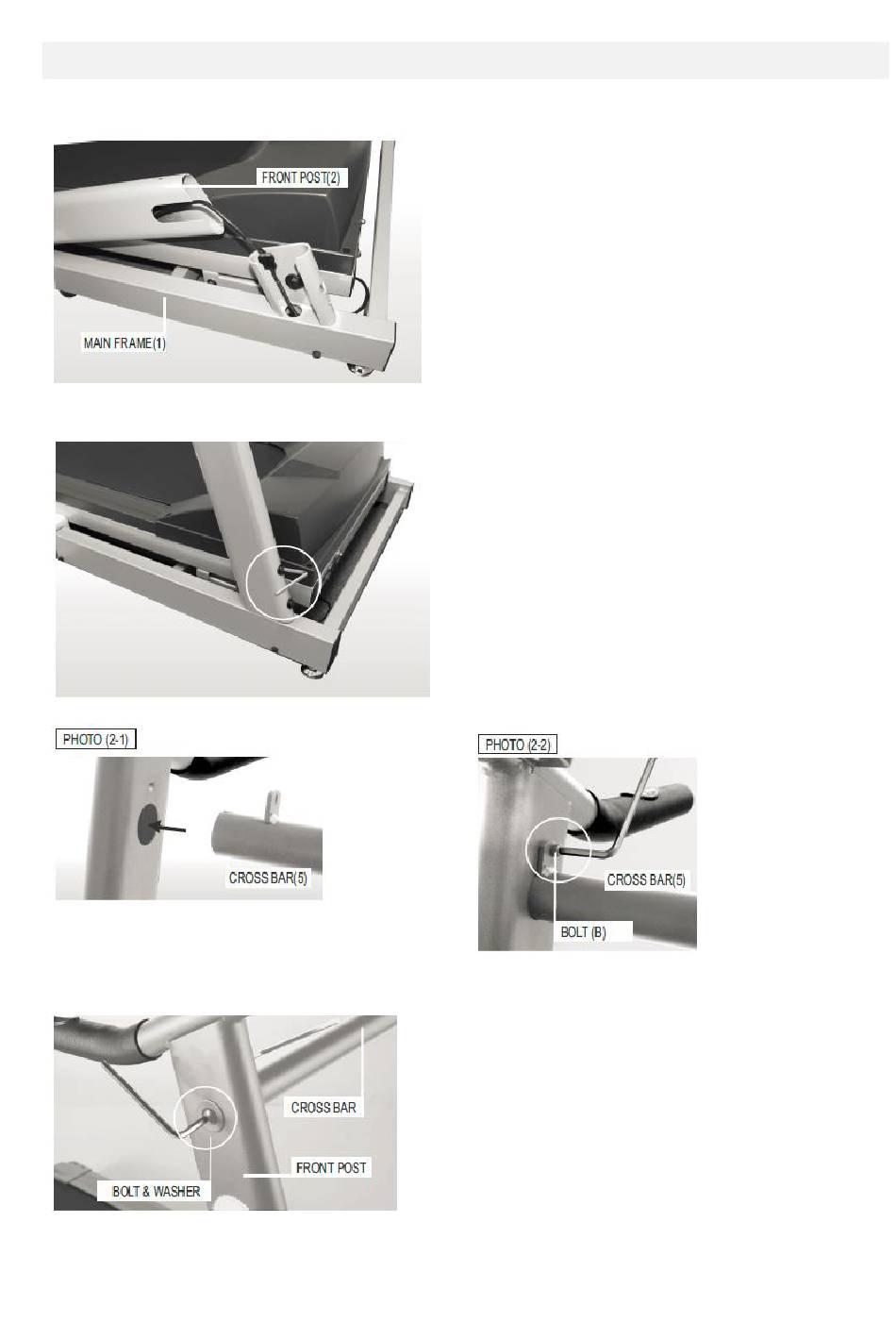

Step 1
Step 2
Step 3
Please note there are 2 Front Posts (2) for right and
left. The post for the right side is with cable inside.
Well connect the cable from the bottom of right
post to the cable from Main Frame (1), then insert
this right post onto the U-bracket on the right side
of Main Frame. Also insert another post onto the
left side of Main Frame.
Use Bolt & Washer (C) to fix Front Posts to the U-
brackets. But do not tighten the bolts yet.
2-1: Attach Cross Bar (5) to two inner sides on both
Front Posts (2) as photo shown. Please be careful
not to scratch the paint off.
2-2: Use Bolt (B) to fix Cross Bar (5) onto Front
Posts (2).
Use Bolt & Washer (A) to go through 2
Front Posts (2) to fix.
11
