OPERATING INSTRUCTIONS
ASSEMBLING THE VACUUM CLEANER
NOTICE
Always disconnect the plug out of the electrical outlet before assembling or
removing accessories!
1. Connecting flexible hose to vacuum cleaner
Insert the flexible hose into the air intake opening of the vacuum cleaner.
Push until you hear a click - fitting into the correct position (Fig. 1). To remove the
flexible hose, press the lock button and remove the hose.
The suction force can be manually adjusted on the hose handle. Slider closed -
more suction force.
Slider open - less suction force.
2. Attaching the telescopic tube to the hose extension
Slide the telescopic tube onto the hose extension and turn slightly.
3. Extending the telescopic tube
Press the plastic latch and pull the smaller tube out.
4. Attaching the floor nozzle to the telescopic tube
Insert the telescopic tube into the floor nozzle and turn slightly. The flap (Fig.
2) is used to switch the floor nozzle to brushing (for smooth floors) or smooth
vacuuming (for carpets).
ACCESSORIES
The following accessories are included in the package for each type of appliance:
VP5240: A, B, D, F, G, H, I, J (see product description)
VP5241: A, C, D, E, G, H, I, J (see product description)
VP5242: A, C, E, G, H, I, J (see product description)
USING THE VACUUM CLEANER
Before using the vacuum cleaner, make sure that the filters and dust container are correctly positioned and fixed.
Unwind the appropriate cord length. The yellow mark on the power cord indicates the ideal length. Do not unwind the
power cord past the red mark!
1. Insert the plug into the wall outlet.
2. Press the power switch to turn on the vacuum cleaner.
3. After vacuuming, turn off the appliance and unplug it from the wall outlet.
4. To wind the power cord, press the cord winding button. Hold the power cord with the other hand to prevent it from
twisting around.
VP5240 | VP5241 | VP5242
EN

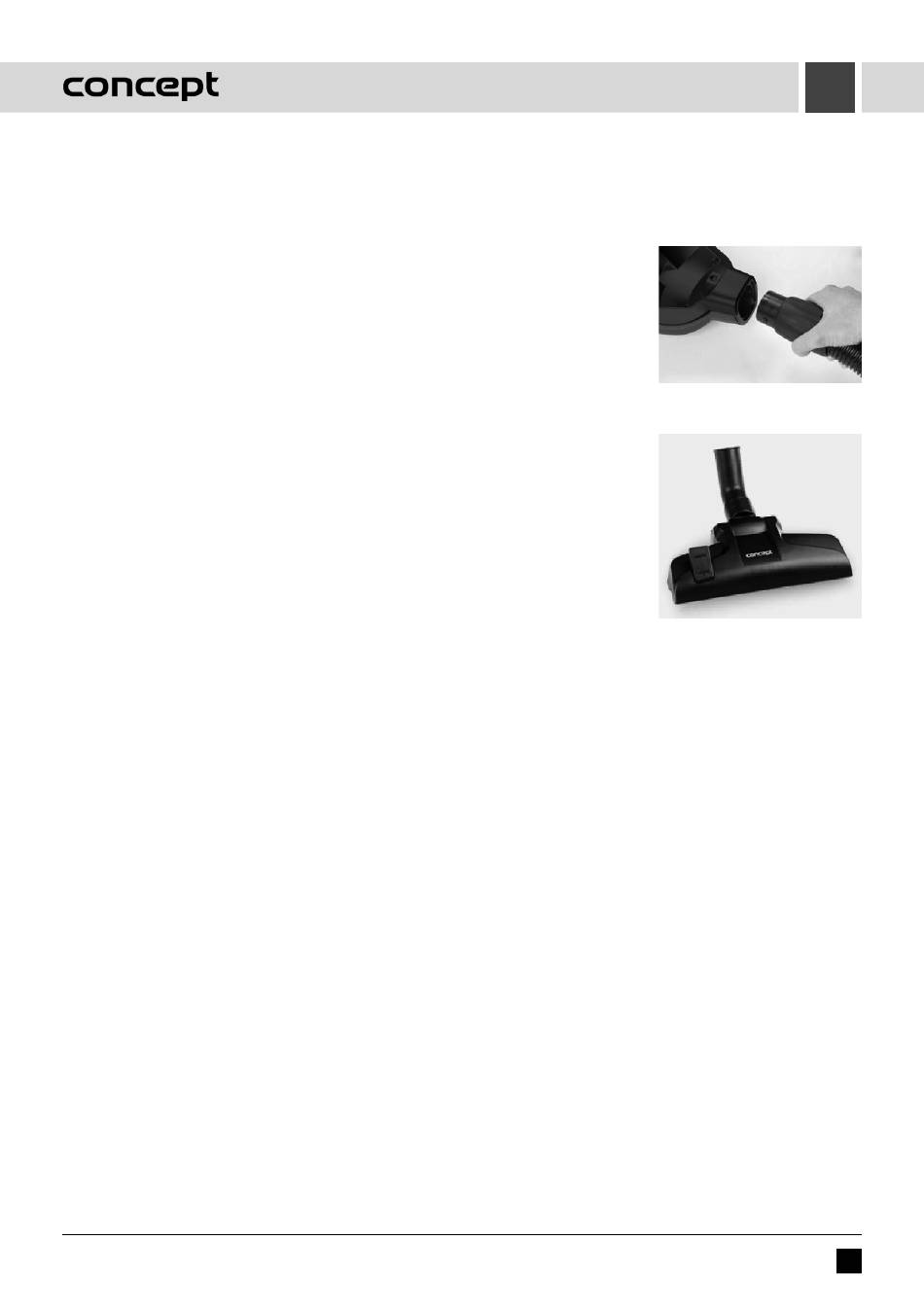

Fig. 1
