4. Product introduction

Control CUE is a series of complete control cabinets with a built-
in Grundfos CUE frequency converter and all necessary electrical
components.
With the startup guide in the frequency converter, you can quickly
set central parameters and put the frequency converter into
operation.
The frequency converter quickly adapts the pump speed to the
actual demand if it is connected to a sensor or an external control
signal.
If the pump speed exceeds the rated speed, the
pump will be overloaded.
Do not use the Control CUE in connection with a
Grundfos motor protection device as MP 204.
The sub components in the control cabinet are only described in
these instructions when they are important for the operation of
the CUE frequency converter unit.
The following documentation is supplied with the cabinet:
• safety instructions for the CUE frequency converter
• installation and operating instructions for the frequency
converter for the given size
• additional instructions, if any (for example CIU 200, 260 or
280)
• functional profile for the frequency converter
• circuit diagram for the Control CUE.
6

4.1 Nameplate

Type:
1
Model: 2
Mains: 3
4
Order No.:
5 A Icc:
In:
No. I
8
min
Pumps: A
QR
IP Class: 9
code
Weight: 10 kg
12
MADE IN GERMANY
DK - 8850 - Bjerringbro - Denmark

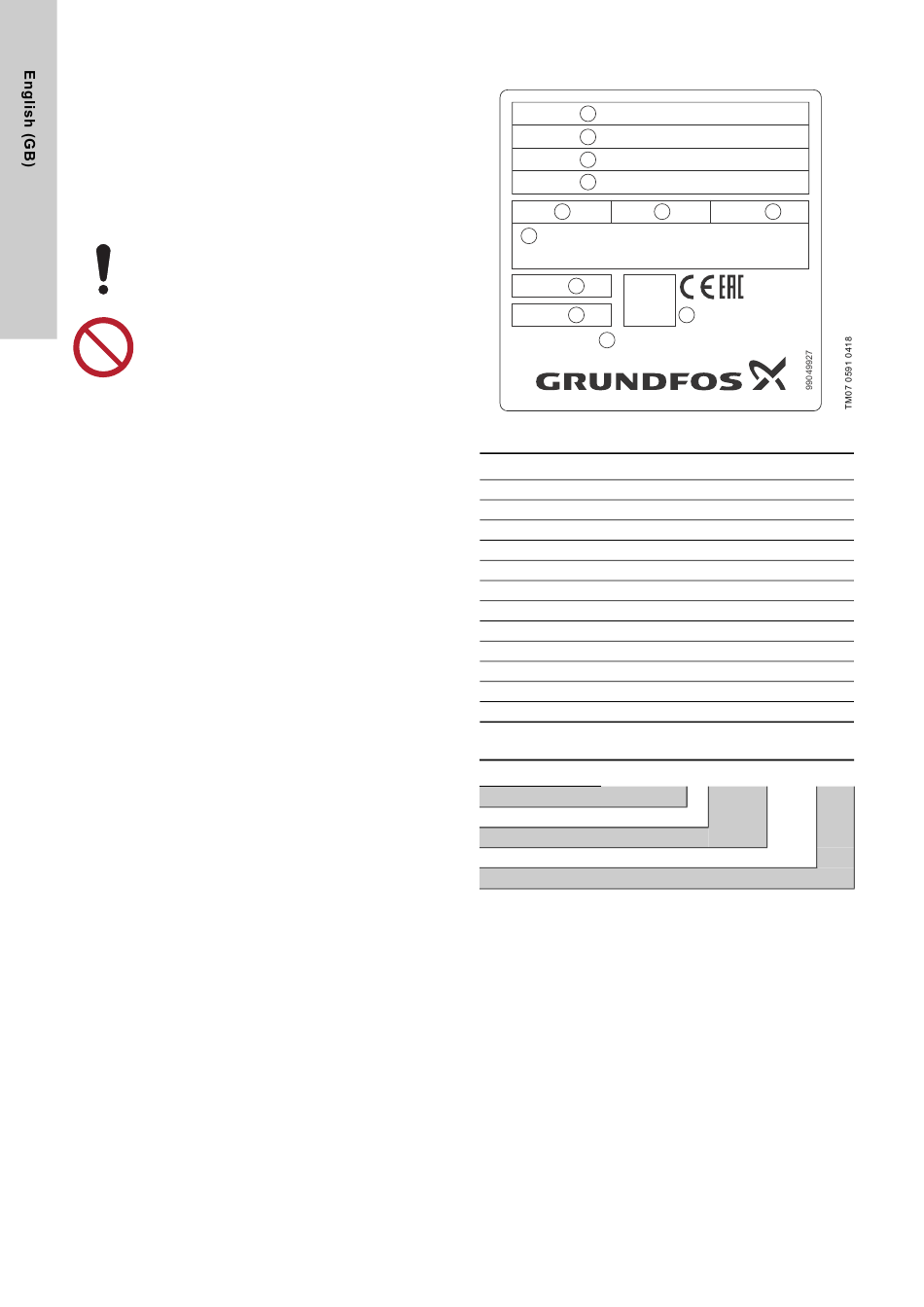

Fig. 1 Control CUE nameplate
Pos. Description
1

Type key

2 Model
3 Mains voltage
4 Order number
5 Nominal current [A]
6 Mains supply voltage [V]
7 Maximum ambient temperature [°C]
8 Specific data for the pump
9 Enclosure class
10 Weight
11 QR code
12 Country code for production
4.2 Type key
Control CUE 1x 1 - 1.6 A 3 x 400 IP54
Type range
Number of pumps
Current range of pumps
Voltage supply
Panel enclosure
6 kA 7
T : °C
ambmax
I Starting Method
max
A CUE
