Remote control

10
The WCC 103BT is supplied with a remote control for controlling (opening and closing) the window actuators, which are connected
to the MotorController.
The remote control has an operation range up too 50m outside and 10m inside.
Physical barriers such as walls, cabinets etc. will reduce the operation range.
Button and key functions on the remote control
#1 #2
#4 #5
#7 #8
Button and key function overview
A short blink on the remote control's green LED indicates that the command from the remote control to the MotorController has
been received by the MotorController.
A short blink on the remote control's red LED indicate that the command from the remote control to the MotorController has not
been received by the MotorController.
10.1

Before use

The remote control is supplied with 2 x AAA batteries, which must be inserted before use.
Furthermore, the remote control and the MotorController must be paired with each other before the remote control can operate the
actuators connected to the MotorController.

10.1.1 Pairing of remote control and MotorController

To avoid any disturbances the remote control must be held close to the MotorController during pairing. Only activate pairing mode
on one MotorController at the time, otherwise, the remote control will pair with the MotorController with the strongest Bluetooth
signal.
A remote control can only be paired with one MotorController.
MotorController
1. Activate pairing mode on MotorControlleren by pressing K5 (Bluetooth pairing button) on the MotorControlleren.
Remote control
The remote control differs between two different presses; a short and a long press.
The short press is used for normal/daily operation, meaning control of the window actuators. The long press is used for the pairing
process.
Short press: the press lasts max. 3 sec.
Long press: the press lasts min. 3 sec.
Activate pairing mode on the remote control, by pressing simultaneously on key #3 and #9 – see above "Button and key
1.
function overview". The press must be a long press on both keys meaning min. 3 sec.
When the remote control is in pairing mode it starts blinking first red and then green double blinks.
2. As the remote control only can be paired with one MotorController, the remote control automatically deletes any previously
paired MotorControllers before it starts the pairing process with the desired MotorController.
3. The remote control starts a scanning process to identify the desired MotorController, which also must be the one closest to
the remote control.
On the remote control, the scanning is indicated by the green LED, which every second blinks two short blinks.
4. a) The LED on the remote control blinks one long green blink. The pairing process was a success, the remote control and
the MotorController is now paired.
b) The LED on the remote control blinks one long red blink. The pairing process failed.

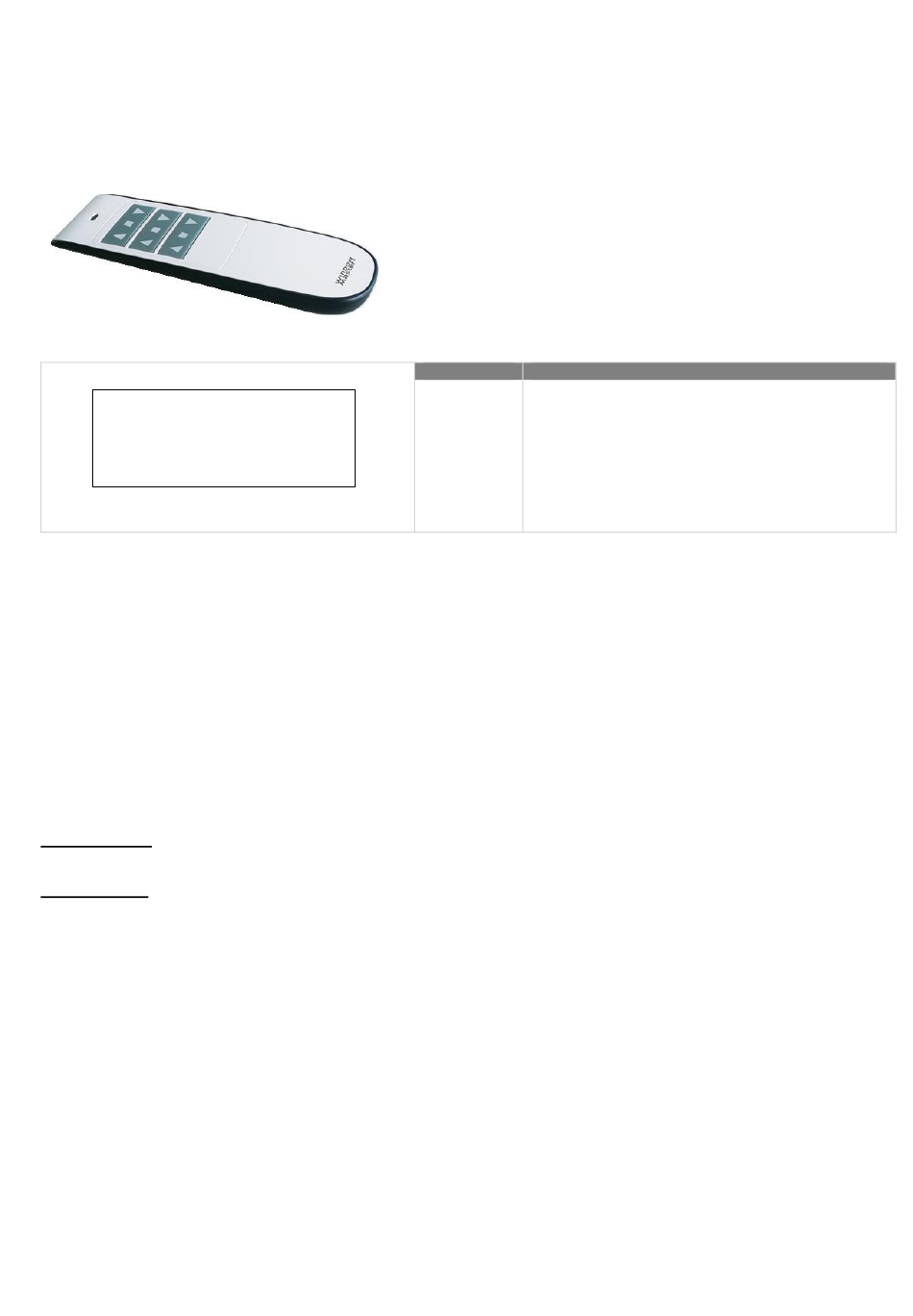

The remote control has 3 buttons, each with 3 keys (functions) –
OPEN, STOP and CLOSE.
However, when paired with the WCC 103BT, it is only the top and
bottom button which are working, meaning the middle button does not
have any function.
Key number
#1
#3
#2
#6 #3
#9
#4
#5
#6
#7
#8
#9
11
Function
Open Actuators connected to motor line #1 open
Stop Actuators connected to motor line #1 stop
Close Actuators connected to motor line #1 close
No function with WCC 103BT
No function with WCC 103BT
No function with WCC 103BT
Open All actuators connected to WCC 103BT open
Stop All actuators connected to WCC 103BT stop
Close All actuators connected to WCC 103BT close
