Status And Troubleshooting Via Led On The Motorcontroller; Commissioning And Test Run; Motorcontroller Fully Installed, Without Operating Power - Window Master WCC 103BT Installationsanleitung

The pairing process succeeded:
The MotorController and remote control are now ready for use. Carry out a test run, if this is the MotorController's first pairing,
see section "Commissioning and test run".
The pairing process failed:
- Ensure that the batteries are inserted correctly into the remote control.
- Ensure that the MotorControllere has been connected to 230V and that pairing mode is activated.
Ensure that MotorController and remote control – during the pairing process – are close to each other and that there are
-
no disturbances between them, such as walls, furniture etc.
- Replace the batteries in the remote control.
- Repeat the pairing process.
If the pairing process continues to fail please contact your local WindowMaster office.

Status and troubleshooting via LED on the MotorController

11
In the event of failure/error of the MotorController one or more diodes will light and/or blink.
On the WCC 103BT there are 3 diodes - 2 green and 1 yellow - that can indicate errors on the MotorController.
Irrespective which diode lights or blinks, the indicator is based on a 3.2 second sequence that is repeated continuously. Each
sequence is defined by 32 x 0.1 second time segments.
If there are several errors on the MotorController simultaneously they are displayed by priority, i.e. error messages for the most
critical failures are shown first and repeated until the failure is remedied. Then error number two is shown, which likewise is
repeated until the error is remedied etc. The following overview shows the most frequently occurring errors, if an error other than
those listed below is indicated, contact WindowMaster.

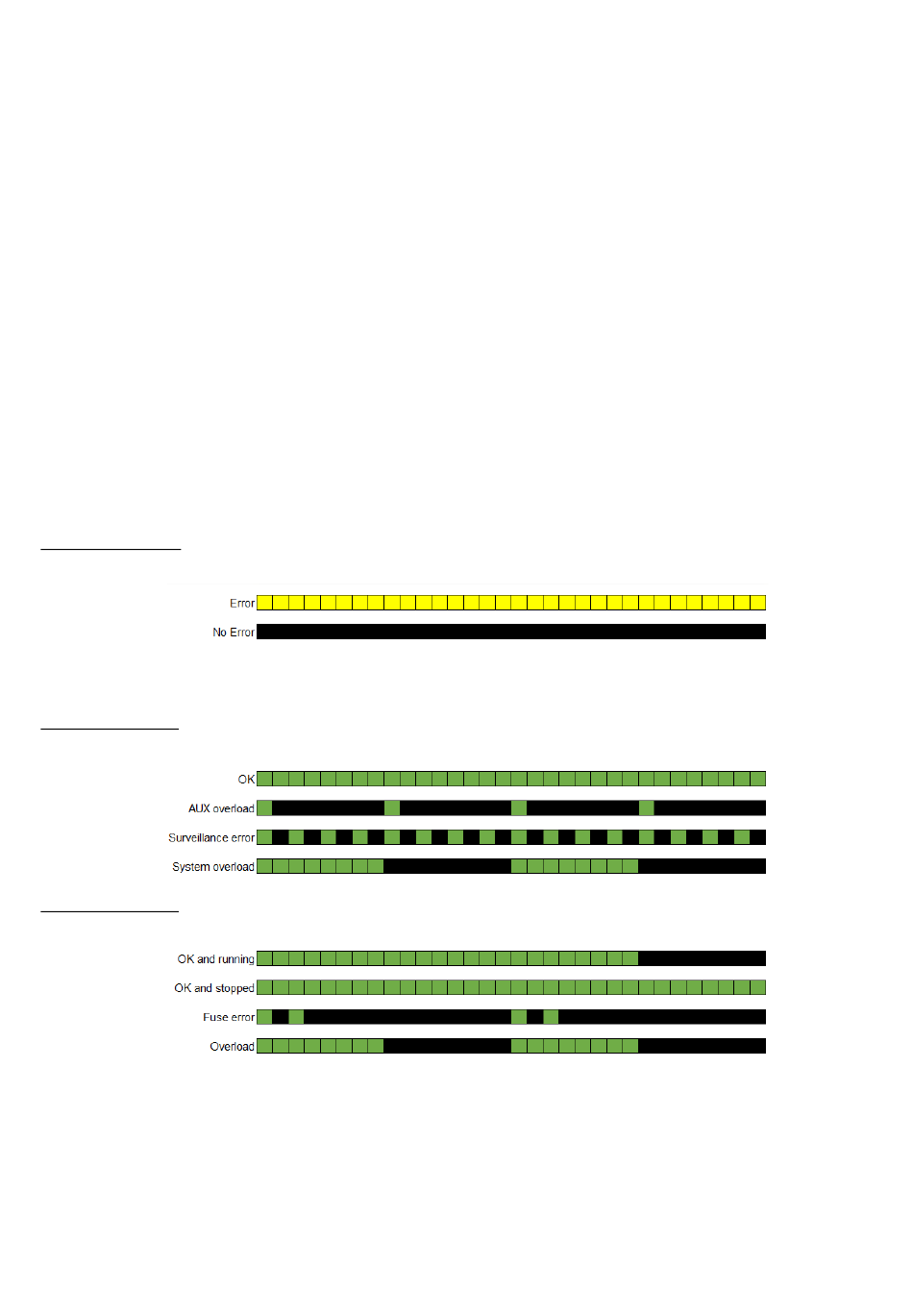

Yellow diode – LED 1
If the yellow diode lights, this indicates an error on the MotorController.
Black = diode off
Error indicator on the yellow diode is a total errors indicator. Detailed information on the error type can be decoded on the green
diode.
Green diode – LED 2
If the green diode LED 2 (closest to X10) blinks, this indicates the error on the MotorController.
Black = diode off
Green diode – LED 4
The green diode LED 4 (furthest from X10) indicates status of or error on the motor line.
Black = diode off

Commissioning and test run

12
In the event of error messages, refer to chapter "Status and troubleshooting via LED".
12.1

MotorController fully installed, without operating power

1. Check all mechanical and electrical components for damage.
2. Check all screw and plug connections for tightness and/or firm seating.
3. Check that all external components are installed; check polarity for the ±24V actuators
12
