DAC basic/classic
12.11.1
The angle settings required on the machine, e.g. "low needle setting" or "thread lever up" are saved in the control
unit. A reference position is required to establish a relationship between the position sensor information and the
actual mechanical position. The reference position may be different depending on the parameter settings, normally
"Point at which the needle penetrates the stitch plate(EP)"
The reference position must be set:
on first commissioning
after replacing the control unit
after replacing the motor or the incremental sensor.
Installation
Switch on, push P- and
Reset- button together
Parameter t 08 10
Push foot pedal forward
until Ref.POS
appears in the Display
Adjust Ref.- Position
with handwheel
button
Downloaded from
www.Manualslib.com

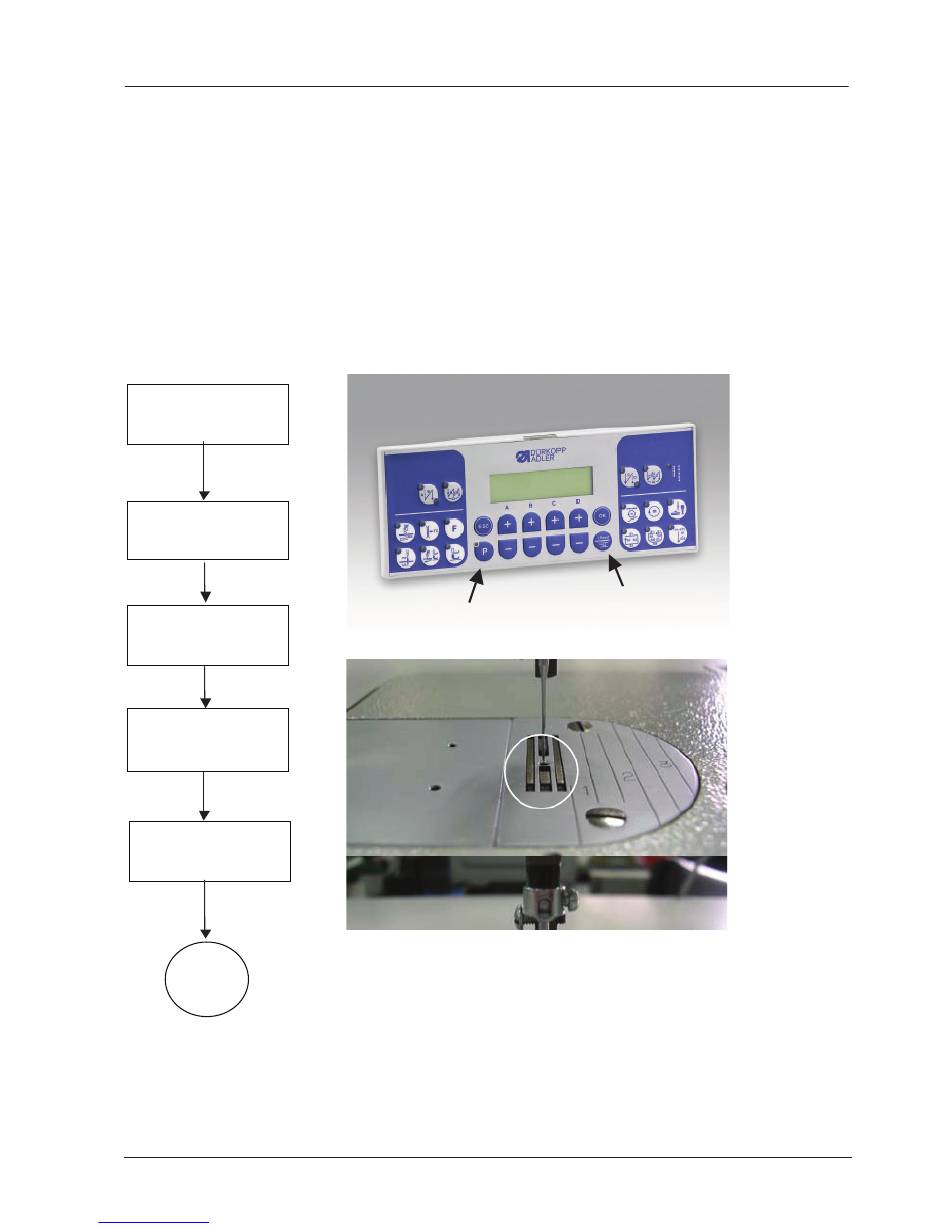

Setting the reference positions
press
OK
manuals search engine
Setting the basic functions
56
© 2010 Dürkopp Adler AG
