Installation Instructions:
Step 1:

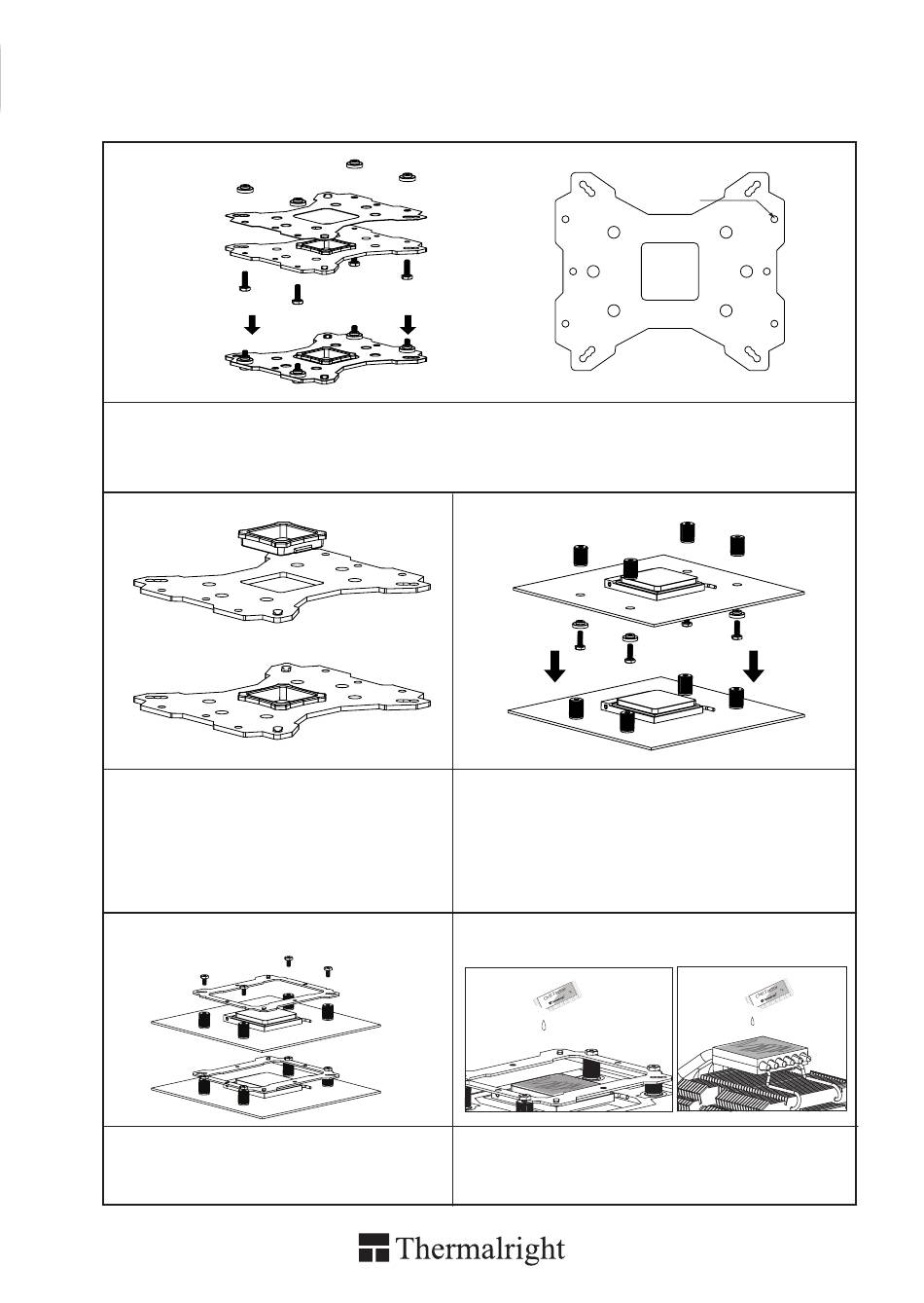

Step 1 : Backplate Installation
Choose the platform (AMD) you are in use. Make four M3L10 Screw Pillars go through the Metal Back
Plate and the Mylar film from bottom towards top. And then place the Metal Back Plate on the table. Put
the four Washers (for AMD) around the Screw Pillars.
Step 2:
Step 2 : Back Plate Cap
Note: When installing on an AMD platform,
please first insert the Back Plate Cap into the
opening on the Metal Back plate, make sure
you have the Cap facing downwards.
Step 4:
1
3
Step 4 : Place the Anchoring Mount on the
Screw Nuts. Use the four M3L6 screws to fix
the Anchoring Mount on to the Screw Nuts.
7
4
2
Step 3:
1
3
Step 3 : Install the four screw pillars.
Take one M3L10 screw and put one washer for AMD
around the screw pillar. Snap it through one of holes
around CPU socket from bottom towards top. Cap
the screw pillar with the screw nut included and then
tighten up. Now repeat this installation for the other
three screw pillars in a criss-cross pattern.
Step 5:
Step 5 : Applying Thermal Paste
Apply the Chill Factor to the base of the Heatsink
and the surface of the CPU evenly.
AMD
4
2
