XR-1X
Rod adjustment screws

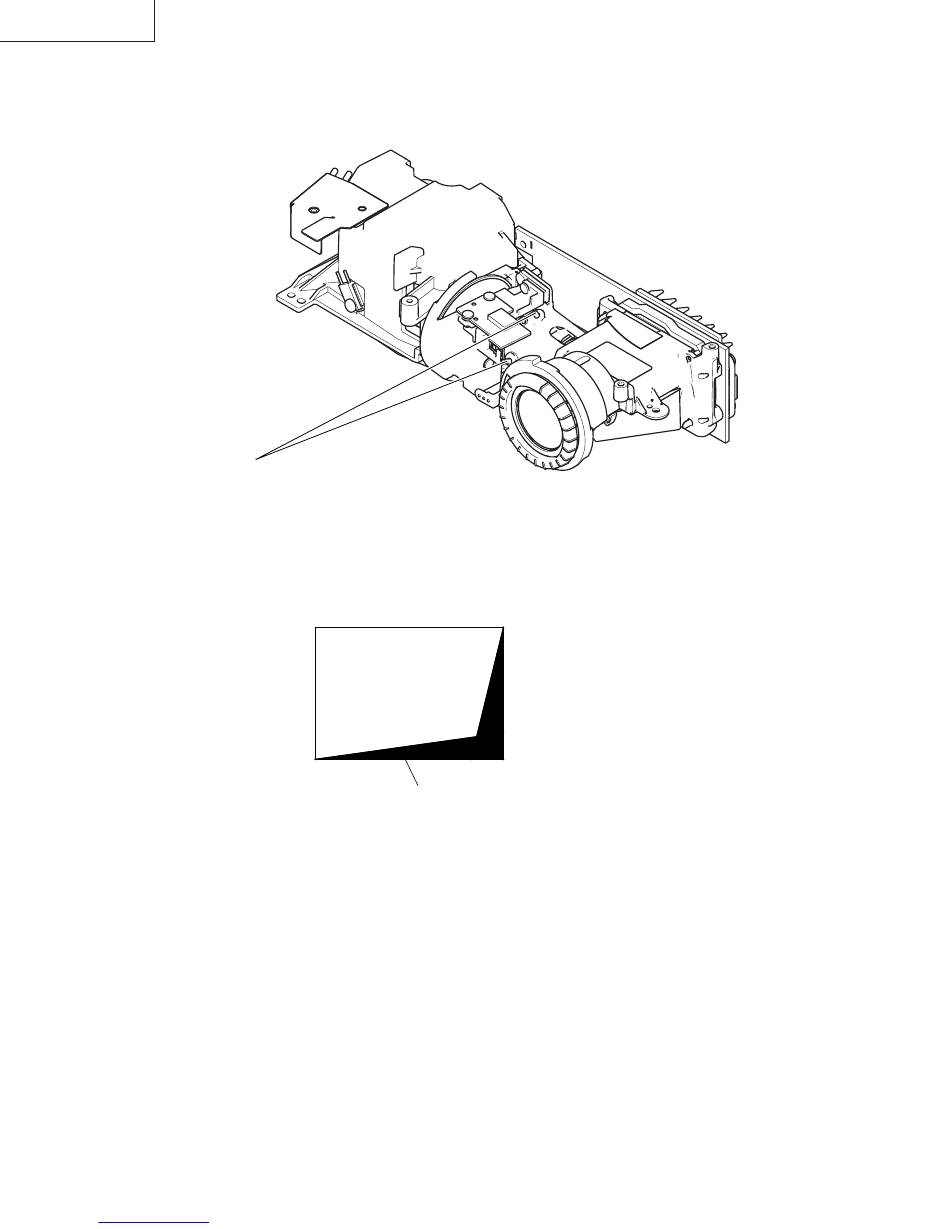

If shading as in Figure 1 appears on a screen after replacing DMD, adjust the DMD lighting range by turning two rod
adjustment screws of the optical engine.
Shading
Fig. 1
26
