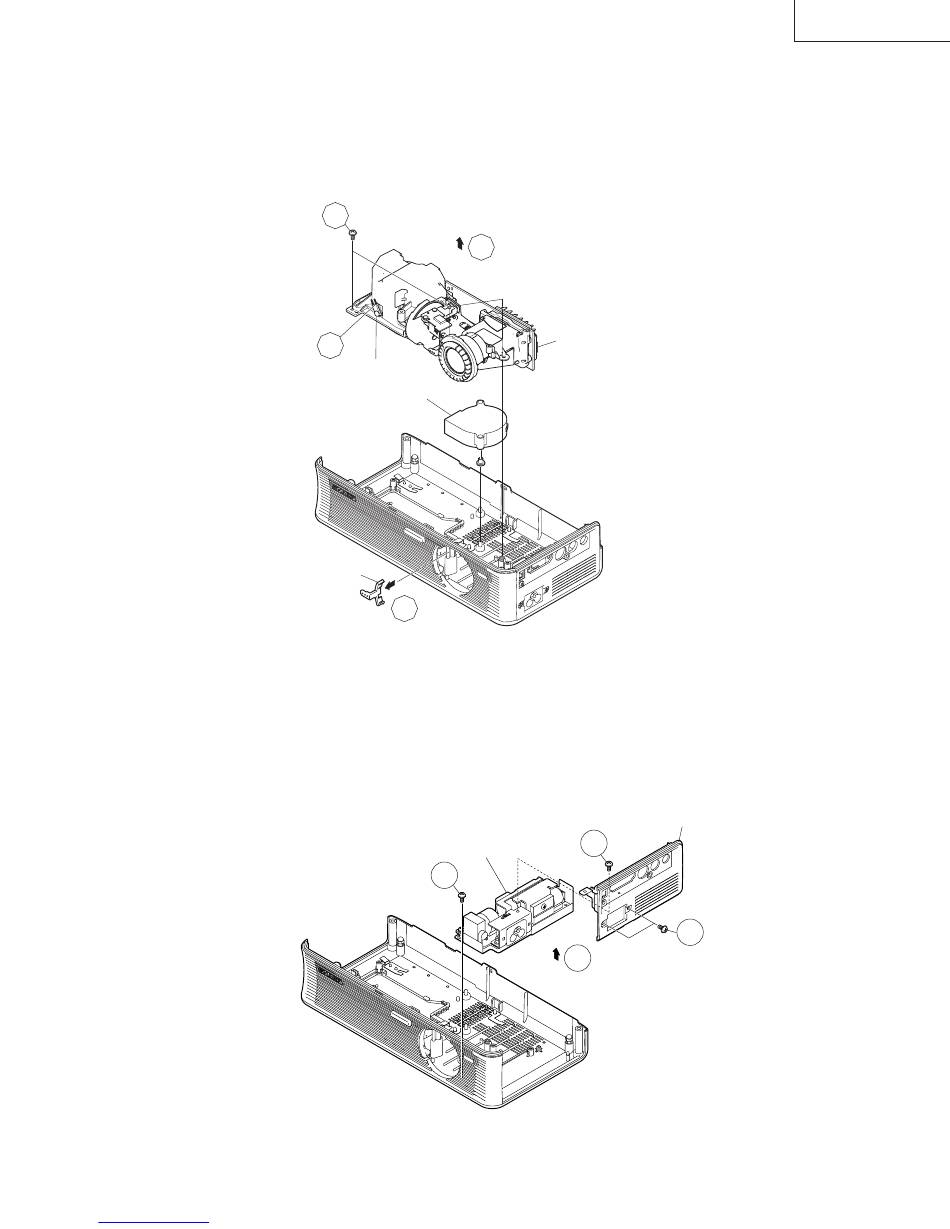

5. Removing the optical mechanism unit
5-1. Pull out the ZOOM lever.
5-2. Remove 2 mechanism unit fixing screws.
5-3. Disconnect the relay connector for the thermal fuse.
5-4. Lift off the mechanism unit.
6. Removing the inlet PWB unit and the terminal panel
6-1. Remove the inlet PWB unit fixing screw.
6-2. Lift off the terminal panel and the PWB unit at the same time.
6-3. Remove 2 fixing screws for AC inlet (terminal panel side) to detach the unit and the panel.
Downloaded from
www.Manualslib.com
5-2
5-3
Thermal fuse
ZOOM lever
manuals search engine
5-4
Optical mechanism unit
Fan
5-1
Inlet PWB unit
6-1
6-2
21
Terminal panel
6-3
6-3
XR-1X
