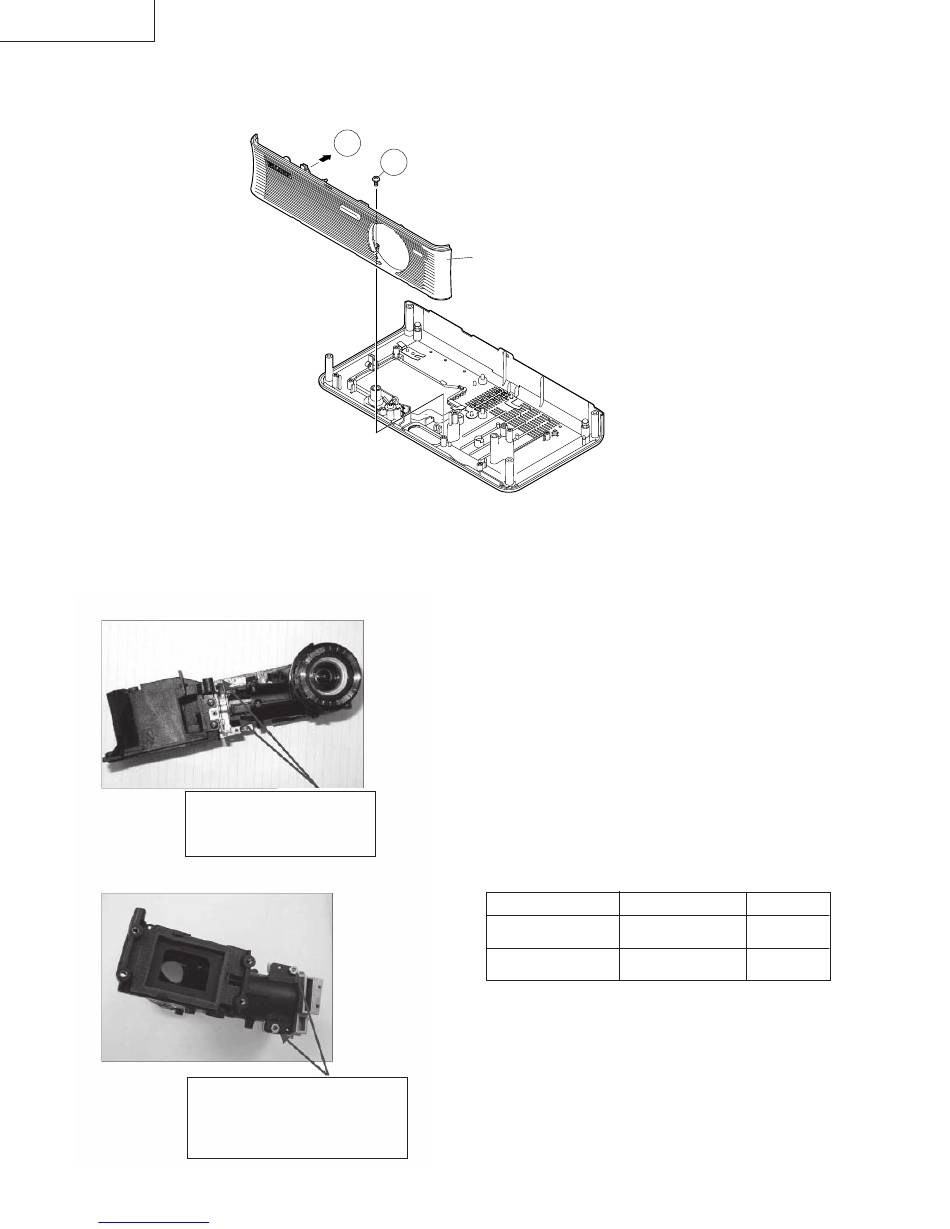

7. Removing the front body
7-1. Remove the front body fixing screw.
7-2. Remove the lead wire of the wire holder and detach the front body.
● Solution when screws for the optical mechanism unit are stripped
If the screw (LX-BZA507WJFN) is stripped during servicing, discard the screw (LX-BZA507WJFN) and secure with
the screw (XBBS92506000) and the nut (XNESN25-02000).
1. Under ordinary conditions
2. Solution when screws are stripped
Downloaded from www.Manualslib.com
7-2
Screw:LX-BZA057WJFN
Screw torque:
0.20+/-0.03Nm
Nut:M2.5(XNESN25-02000)
Screw:XBBS925P06000
Screw torque:
0.29+/-0.03Nm
manuals search engine
7-1
Front body
Part No.
XNESN25-02000
XBBS925P06000
22
Description Cord
Nut AB
Screw AA
