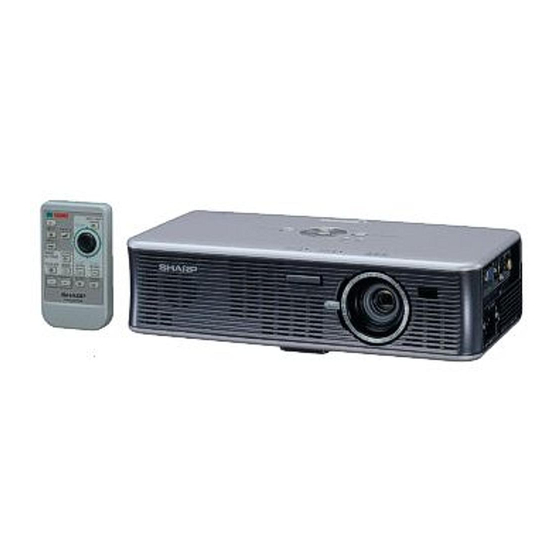

Sharp XR-1X Serviceanleitung
Vorschau ausblenden Andere Handbücher für XR-1X:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

In the interests of user-safety (Required by safety regulations in some countries) the set should be re-
stored to its original condition and only parts identical to those specified should be used.
Im lnteresse der Benutzersicherheit (erforderliche Sicherheitsregeln in einigen Ländern) muß das Gerät in seinen
Originalzustand gebracht werden. Außerdem dürfen für die spezifizierten Bauteile nur identische Teile verwendet
werden.
SHARP CORPORATION
Downloaded from
www.Manualslib.com
manuals search engine
SERVICE MANUAL
SERVICE-ANLEITUNG
MODEL
MODELL
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
PROJECTOR
PROJEKTOR
XR-1X
XR-1X
S74Y5XR-1X///

Werbung

loading

Inhaltszusammenfassung für Sharp XR-1X

  • Seite 1 XR-1X SERVICE MANUAL SERVICE-ANLEITUNG S74Y5XR-1X/// PROJECTOR PROJEKTOR MODEL XR-1X MODELL In the interests of user-safety (Required by safety regulations in some countries) the set should be re- stored to its original condition and only parts identical to those specified should be used.
  • Seite 2: Inhaltsverzeichnis

    XR-1X CONTENTS Page Page • SPECIFICATIONS ..........3 • BLOCK DIAGRAM .......... 86 • IMPORTANT SERVICE SAFETY • OVERALL WIRING DIAGRAM ....... 88 NOTES (for USA) ..........4 • DESCRIPTION OF SCHEMATIC DIAGRAM .. 90 • NOTE TO SERVICE PERSONNEL ....6 •...
  • Seite 3: Specifications

    XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 4: Important Service Safety Notes (For Usa)

    XR-1X IMPORTANT SERVICE SAFETY NOTES (for USA) Ë Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and servicing guidelines as follows: » Use an AC voltmeter with sensitivity of 5000 ohm per WARNING volt., or higher, sensitivity to measure the AC voltage...
  • Seite 5 XR-1X - M E M O - Downloaded from www.Manualslib.com manuals search engine...
  • Seite 6: Note To Service Personnel

    XR-1X NOTE TO SERVICE NOTE POUR LE PERSONNEL PERSONNEL D’ENTRETIEN 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6...
  • Seite 7 XR-1X 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6...
  • Seite 8 XR-1X WARNING: High brightness light source, do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly in to the beam of light. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO MOISTURE OR WET LOCATIONS.
  • Seite 9 1-800-8-BATTERY or your local recycling center. If you are located outside the United States, contact your local authorities for information concerning proper disposal and/ or recycling of this battery. SHARP’s involvement in this program is part of our commitment to protecting our environment and conserving natural resources.
  • Seite 10 XR-1X Precautions for using lead-free solder 1 Employing lead-free solder "PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
  • Seite 11 XR-1X - M E M O - Downloaded from www.Manualslib.com manuals search engine...
  • Seite 12: Operation Manual

    XR-1X Operation Manual Downloaded from www.Manualslib.com manuals search engine...
  • Seite 13 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 14 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 15 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 16 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 17 XR-1X Connection Pin Assignments Downloaded from www.Manualslib.com manuals search engine...
  • Seite 18: Dimensions

    XR-1X DIMENSIONS Units: inches(mm) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 19: Removing Of Major Parts

    XR-1X REMOVING OF MAJOR PARTS 1. Removing the lamp door and the lamp unit 1-1. Loosen the lamp fixing screw. Lift off the lamp door. 1-2. Remove 2 lamp unit fixing screws to detach the lamp unit. Lamp unit Lamp door 2.
  • Seite 20 XR-1X 3. Removing the main PWB 3-1. Remove the fixing screw for S-VIDEO terminal (terminal side). 3-2. Remove 2 hex head screws fixing D-SUB 15-pin terminal (terminal side). 3-3. Remove 4 main PWB fixing screws. 3-4. Remove 9 connectors from the main PWB.
  • Seite 21 XR-1X 5. Removing the optical mechanism unit 5-1. Pull out the ZOOM lever. 5-2. Remove 2 mechanism unit fixing screws. 5-3. Disconnect the relay connector for the thermal fuse. 5-4. Lift off the mechanism unit. Optical mechanism unit Thermal fuse ZOOM lever 6.
  • Seite 22 XR-1X 7. Removing the front body 7-1. Remove the front body fixing screw. 7-2. Remove the lead wire of the wire holder and detach the front body. Front body ● Solution when screws for the optical mechanism unit are stripped If the screw (LX-BZA507WJFN) is stripped during servicing, discard the screw (LX-BZA507WJFN) and secure with the screw (XBBS92506000) and the nut (XNESN25-02000).
  • Seite 23: Resetting The Total Lamp Timer

    The lamp life (percentage) can be checked with the on-screen display. ■ Purchase a replacement lamp of type AN-XR1LP from your place of purchase, nearest Sharp Projector Dealer or Service Center.
  • Seite 24 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 25: The Optical Unit Outline

    XR-1X THE OPTICAL UNIT OUTLINE Layout for proper setup of the optical components and parts (top view) (Schematic diagram) Projection lens Illumination lenses Color wheel Lamp Reflection mirror Field lens Item Function Lamp Light source. DC high-pressure mercury lamp. Color wheel Splits light from the light source into R, G, B and W through a color filter.
  • Seite 26 XR-1X Rod adjustment screws If shading as in Figure 1 appears on a screen after replacing DMD, adjust the DMD lighting range by turning two rod adjustment screws of the optical engine. Shading Fig. 1 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 27: Electrical Adjustment

    XR-1X ELECTRICAL ADJUSTMENT Adjusting point Adjusting conditions Adjusting procedure » Make the following settings. EEPROM 1. Turn on the power (with the initialization Press S2551 to call the process mode and execute lamp on) and warm up the "SS2" on SS menu.
  • Seite 28 XR-1X Adjusting point Adjusting conditions Adjusting procedure Auto keystone 1. Select the following group Check that the K-SENS value is 0 ± 3. initialization and subjects. Check that keystone is caused by tilting the unit. Group : ADJUST CW/Auto KS...
  • Seite 29 XR-1X Adjusting point Adjusting conditions Adjusting procedure Adjustment of 1. Select the following group 1. Check the fixed value. Video color and subject. Fixed value : 116 saturation Group : CONFIRM/VIDEO Subject : V-COLOR RGB tone 1. Feed the SMPTE pattern 1.
  • Seite 30 XR-1X PFC output voltage adjustment when replacing parts in the power supply unit When parts located on the block A, B, or C in the power supply unit are replaced, readjust PFC output voltage. [Procedure] 1. Set the volume (VR711) at the center position.
  • Seite 31 XR-1X Power Circuit Downloaded from www.Manualslib.com manuals search engine...
  • Seite 32 XR-1X Ref.No. Parts Code Description A Block IC711 98ENZUSYIC7110 FA5501AN-TE1 Diode D713 98ENZUSYD71300 MA152WA Capacitors C715 98ENZUSYC71500 0.01 50V C716 98ENZUSYC71600 470p 50V C717 98ENZUSYC71700 0.47 25V C718 98ENZUSYC71500 0.01 50V C719 98ENZUSYC71900 0.22 50V Resistors R724 98ENZUSYR72400 22k 1/4W...
  • Seite 33 XR-1X 1. Calling and quitting the process mode with the control keys on this model. ∗ Although it is possible for the process OUT to exit using the process menu, the IN/OUT toggle command is also available considering the existing specification.
  • Seite 34 XR-1X » Adjustment mode process menu 1st Layer 2nd Layer Default ADJUST CW/Auto KS CW-INDEX K-SENS AD/DLP R-CONT G-CONT B-CONT R-GAIN G-GAIN B-GAIN VIDEO V-CONT SS3 (EU) SS4 (US) SS5 (JPN) SS6 (CHINA) CONFIRM R-BRIGHT G-BRIGHT B-BRIGHT C-R-OS C-B-OS R-BLK...
  • Seite 35 XR-1X 1st Layer 2nd Layer Default INFO VERSION MODEL VER. PATTERN RGB50 CORSS STEP COLOR LAMP CURRENT Current operating time HISTORY1 History 1 (latest) HISTORY2 History 2 HISTORY3 History 3 HISTORY4 History 4 TOTAL Total operating time TEMP/FAN TEMP1 TEMP2...
  • Seite 36: Troubleshooting Table

    XR-1X TROUBLESHOOTING TABLE Checking the basic operation Has SC2551 come off or is Does the power LED light Fully insert the connector. it loose? up or flash in red or green? Does the set function with its keys or the remote Go to "Main PWB check".
  • Seite 37 XR-1X Main PWB check Is 6 V applied to TL1703 Go to "Checking the power and 13 V to TL1704? unit". Check IC1732 and Is approx. 6 V applied to peripheral circuits. TL1732? Is 1.5 V applied to Check IC1731 and TL1731? peripheral circuits.
  • Seite 38 XR-1X DMD system check Check SC2502 for breakage and solder crack and peripheral resistance for solder crack. Check SC9102 for breakage and solder crack. Is there any vertical stripe (block noise) on the Is the screen all black? Poor contact between Formatter PWB and DMD unit.
  • Seite 39 XR-1X Checking the power unit Is 6 V applied to pins (3) and (4) of the connector CN711? Is 13 V applied to pin (7) of Check peripheral circuits of the connector CN711? IC712. Does the lamp turn on? Check the main PWB.
  • Seite 40 XR-1X Is the connector CN702 Securely insert the connectors. fully inserted? Are connectors CN701 and CN702 fully inserted? Securely insert the connectors. Is AC voltage between 100 Replace F701. − 240 V applied to both ends of C701? Is the bimetal broken? Replace the bimetal switch.
  • Seite 41 XR-1X Checking the lamp light-up Go to "Check when the Does the lamp turn on lamp turns off soon after when the power is turned turning on". Securely insert the Is the lamp tight in the connectors. socket? Is the discharging sound Replace the lamp.
  • Seite 42 XR-1X Check when the lamp turns off soon after turning on Have connectors P1702, P1711, P1712, and P1713 Securely insert the come off or are they connectors. loose? Is each cooling fan Check the cooling fan. rotating? Check peripheral circuits of Is approx.
  • Seite 43 XR-1X Component signal check Send component signals of 1080i (or 720P) from INPUT 1. Use buttons on the main unit or the remote control to select INPUT 1. Is image displayed normally? Are picture signals sent to Check connection of...
  • Seite 44 XR-1X Checking the RGB signals Send RGB signals from INPUT 1. Use buttons on the main unit or the remote control to select INPUT 1. Is image displayed normally? Check connection of Are picture signals sent to FB3011, FB3012, and TL3002, TL3003, and FB3013.
  • Seite 45 XR-1X S-VIDEO (INPUT 2) VIDEO (INPUT 3) check check Send S-VIDEO signal from Send VIDEO signal from INPUT 2. Use buttons on INPUT 3. Use buttons on the main unit or the remote the main unit or the remote control to select INPUT 2.
  • Seite 46: Spezifikationen

    XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 47: Hinweise Für Das Wartungspersonal

    XR-1X HINWEISE FÜR DAS WARTUNGSPERSONAL 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6...
  • Seite 48 XR-1X Vorsichtsmaßregeln für bleifreien Lötzinn 1 Verwendung von bleifreiem Lötzinn Bei den Platinen für dieses Modells wird bleifreies Lot verwendet. Das Symbol LF kennzeichnet bleifreies Lot und findet sich an den Platinen und in den Wartungshandbüchern. Der Buchstabe hinter LF bezieht sich auf die Art des bleifreien Lots.
  • Seite 49: Bedienungsanleitung

    XR-1X Bendienungsanleitung Downloaded from www.Manualslib.com manuals search engine...
  • Seite 50 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 51 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 52 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 53 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 54 XR-1X Pin-Belegung Downloaded from www.Manualslib.com manuals search engine...
  • Seite 55: Abmessungen

    XR-1X ABMESSUNGEN Einheiten:Zoll(mm) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 56: Entfernen Der Hauptteile

    XR-1X ENTFERNEN DER HAUPTTEILE 1. Ausbau der Lampentür und der Lampeneinheit 1-1. Die Lampen-Befestigungsschraube lösen, dann die Lampentür abheben. 1-2. Die beiden Lampeneinheits-Befestigungsschrauben entfernen, dann die Lampeneinheit abnehmen. Lampeneinheit Lampentür 2. Ausbau des oberen Gehäuses 2-1. Die vier Befestigungsschrauben für das obere und das untere Gehäuse entfernen.
  • Seite 57 XR-1X 3. Ausbau der Hauptleiterplatte 3-1. Die Befestigungsschraube für die S-VIDEO-Klemme (Klemmenseite) entfernen. 3-2. Die beiden Sechskantschrauben zur Befestigung der D-SUB-15-Stift-Klemme (Klemmenseite) entfernen. 3-3. Die vier Hauptleiterplatten-Befestigungsschrauben entfernen. 3-4. Die acht Anschlüsse aus der Hauptleiterplatte entfernen. 3-5. Die Hauptleiterplatte in querer Richtung von der Klemmentafelseite abheben.
  • Seite 58 XR-1X 5. Ausbau der optischen Laufwerkeinheit 5-1. Den ZOOM-Hebel herausziehen. 5-2. Die drei Befestigungsschrauben für die optische Laufwerkeinheit entfernen. 5-3. Den Relaisanschluss für die Temperatursicherung entfernen. 5-4. Die Laufwerkeinheit abheben. Optischen Laufwerkeinheit Temperatursicherung Gebläse ZOOM-Hebel 6. Ausbau der Netzanschluss-Leiterplatteneinheit und der Klemmentafel 6-1.
  • Seite 59 XR-1X 7. Ausbau des vorderen Gehäuses 7-1. Die Befestigungsschraube für das vordere Gehäuse entfernen. 7-2. Den Leitungsdraht des Drahthalters abtrennen, dann das vordere Gehäuse abnehmen. Vordere Gehäuse ● Lösung, wenn die Schrauben für die optische Lautwerk-Einkeit überdreht sind Wenn bei Wartungsarbeiten die Schraube (LX-BZA507WJFN) überdreht ist, diese (LX-BZA507WJFN) wegwerfen, und mit der Schraube (XBBS92506000) und Mutter (XNESN25-02000) sichern.
  • Seite 60: Rückstellen Des Lampenbetriebszeit-Timers

    Sie eine deutliche Verschlechterung der Bild- und Farbqualität feststellen. Die Lampenlebensdauer (Prozentsatz) kann auf der Bildschirmanzeige überprüft werden. ■ Erwerben Sie über einen Sharp-Projektor-Händler oder Kundendienstbetrieb in Ihrer Nähe eine Lampe des Typs AN-XR1LP. ■ Die Warnanzeigen (ON/STANDBY-Taste, Lampen-Anzeige und Temperatur-Warnanzeige) auf dem Projektor weisen auf Funktionsstörungen hin.
  • Seite 61 XR-1X Wartungsanzeige Problem Ursache Mögliche Lösung Normal Anormal Tempera- Die interne • Blockierter • Stellen Sie den Projektor so tur- Temperatur ist Belüftungseinlass auf, dass er ordnungsge- leuchtend Warnan- (Standby) ungewöhnlich mäß belüftet wird. zeige hoch. • Defekter Lüfter • Bringen Sie den Projektor •...
  • Seite 62: Beschreibung Der Optik-Einheit

    XR-1X BESCHREIBUNG DER OPTIK-EINHEIT Erläuterungen für das korrekte Setup der optischen Komponenten und Baugruppen (An- sicht von oben) (Schematische Darstellung) Projektionslinse Beleuchtungslinsen Farbrad Lampe Reflektorspiegel Stab Feldlinse Objekt Funktion Lampe Lichtquelle. Gleichstrom-Hochdruck-Quecksilberlampe Farbrad Teilt durch den Farbfilter das Licht aus der Lichtquelle in R, G, B und W auf.
  • Seite 63 XR-1X Stabeinstellschrauben Wenn eine Abschattung (siehe Abbildung 1) nach dem Auswechseln von DMD auf dem Bildschirm erscheint, die beiden Stabeinstellschrauben am optischen Motor drehen, um den Beleuchtungsbereich von DMD einzustellen. Abschattung Abb. 1 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 64: Elektrische Einstellung

    XR-1X ELEKTRISCHE EINSTELLUNG Nr. Einstellgegenstand Einstellbedingungen Einstellverfahren EEPROM wird 1. Die folgenden Einstellungen vornehmen: 1. D e n N e t z s c h a l t e r initialisiert S2551 drücken, um den Bearbeitungsmodus einschalten und das Gerät aufzurufen und "SS2"...
  • Seite 65: Dlp

    XR-1X Nr. Einstellgegenstand Einstellbedingungen Einstellverfahren sRGB- 1. Ein RGB-Grausignal mit 50% 1. S-G-OS und S-B-OS einstellen, sodass die Weißbalance- zuführen (XGA 60Hz). folgenden Werte erhalten werden: Einstellung 2. Die folgenden Gruppen und x-Wert: 313 ± 5 Positionen wählen: y-Wert: 329 ± 5...
  • Seite 66: V-Color

    XR-1X Nr. Einstellgegenstand Einstellbedingungen Einstellverfahren Video- 1. Die folgenden Gruppen und 1. Den Festwert überprüfen. farbsättigungs- Positionen wählen: Einstellwert : 116 Einstellung Gruppe: CONFIRM/VIDEO Position: V-COLOR Einstellung der 1. Das SMPTE-Testbildsignal 1. Sich vergewissern, daß die 100- und 95%- RGB-Farbton- zuführen.
  • Seite 67 XR-1X Nr. Einstellgegenstand Einstellbedingungen Einstellverfahren USB- 1. Mit einem USB-Kabel an 1. Überprüfen, dass der Fortschaltbetrieb (vor-/ Betriebsprüfung einen PC anschließen. rückwärts) auf dem PC-Bildschirm mit Hilfe der Fernbedienung möglich ist. Ausgabe- 1. Die folgenden Einstellung vornehmen: Einstellwerte Prozeß-Einstellung Einstellung der Fernbedienung...
  • Seite 68 XR-1X Stromversorgungseinheit Downloaded from www.Manualslib.com manuals search engine...
  • Seite 69 XR-1X Ref. Nr. Teilecode Beschreibung Blöcke A IC711 98ENZUSYIC7110 FA5501AN-TE1 Diode D713 98ENZUSYD71300 MA152WA Kondensatoren C715 98ENZUSYC71500 0.01 50V C716 98ENZUSYC71600 470p 50V C717 98ENZUSYC71700 0.47 25V C718 98ENZUSYC71500 0.01 50V C719 98ENZUSYC71900 0.22 50V Widerstände R724 98ENZUSYR72400 22k 1/4W...
  • Seite 70 XR-1X 1. Aktivieren und Deaktivieren des Prozeßmodus unter Verwendung der Steuertasten dieses Modells. ∗ Für den Prozess OUT ist es möglich, unter dem Prozessmenü zu verlassen, jedoch ist auch der IN/OUT- Umschaltbefehl mit Rücksicht auf die vorhandene Spezifikation verfügbar. 1-1. Aktivieren und Deaktivieren Mit nicht angezeigtem Menü...
  • Seite 71 XR-1X Prozeßmenü 1 1. Schicht 2. Schicht Voreinstellung ADJUST CW/Auto KS CW-INDEX K-SENS AD/DLP R-CONT G-CONT B-CONT R-GAIN G-GAIN B-GAIN VIDEO V-CONT SS3 (EU) SS4 (US) SS5 (JPN) SS6 (CHINA) CONFIRM R-BRIGHT G-BRIGHT B-BRIGHT C-R-OS C-B-OS R-BLK G-BLK B-BLK S-R-OS...
  • Seite 72: Version Model Ver

    XR-1X 1. Schicht 2. Schicht Voreinstellung INFO VERSION MODEL VER. PATTERN RGB50 CORSS STEP COLOR LAMP CURRENT Aktuelle Betriebszeit HISTORY1 Historie 1 (neuest) HISTORY2 Historie 2 HISTORY3 Historie 3 HISTORY4 Historie 4 TOTAL Gesamte Betriebszeit TEMP/FAN TEMP1 TEMP2 FAN0 FAN1...
  • Seite 73: Fehlersuchtabelle

    XR-1X FEHLERSUCHTABELLE Überprüfung der grund- legenden Funktionen Ist die POWER LED Ist SC2551 abgegangen NEIN Den Anschluss fest eingeschaltet, oder blinkt oder lose? einsetzen. sie rot oder grün? NEIN Kann das Gerät mit der Mit dem Abschnitt NEIN Einschalttaste oder über "Überprüfung der...
  • Seite 74 XR-1X Überprüfung der Hauptleiterplatte Mit dem Abschnitt Liegt 6 V an TL1703 an NEIN "Überprüfung des und 13 V an TL1704? Netzteils" fortfahren. NEIN IC1732 und die peripheren Liegt ca. 6 V an TL1732 Schaltkreise überprüfen. NEIN NEIN Liegt 3.3V am Stift (1) Liegt 1.5 V an TL1731...
  • Seite 75 XR-1X Überprüfung des DMD-Systems SC2502 auf Beschädigung und Lötbruch sowie die peripheren Widerstände auf Lötbruch überprüfen. SC9102 auf Beschädigung und Lötbruch überprüfen. Erscheint vertikaler Streifen (Blockrauschen) auf dem Bildschirm? NEIN NEIN Ist der gesamte Bildschirm schwarz? Schlechter Anschluss zwischen Formatter-...
  • Seite 76 XR-1X Überprüfen des Netzteils Liegt 6 V an den Stiften (3) NEIN und (4) des CN711- Anschlusses an? Liegt 13 V am Stift (7) des NEIN Die peripheren Schaltkreise CN711-Anschlusses an? von IC712 überprüfen. NEIN Leuchtet die Lampe? Die Hauptleiterplatte überprüfen.
  • Seite 77 XR-1X NEIN Ist der CN702-Anschluss Die Anschlüsse fest einsetzen. fest eingesetzt? Sind der CN701- und der NEIN CN702-Anschluss fest Die Anschlüsse fest einsetzen. eingesetzt? Liegt ein NEIN Wechselspannung (100 - F701 ersetzen. 240 V) an den beiden Enden von C701 an?
  • Seite 78 XR-1X Überprüfung der Lampenfunktion Mit dem Abschnitt "Überprüfung beim Leuchtet die Lampe einmal Erlöschen der Lampe nach der Einschaltung? sofort nach dem Leuchten" fortfahren. NEIN Die Anschlüsse fest Ist die Lampenfassung einsetzen. locker? NEIN Wird das Entladungsgeräusch (hohe Die Lamp auswechseln.
  • Seite 79 XR-1X Überprüfung beim Erlöschen der Lampe sofort nach dem Leuchten Sind die Anschlüsse P1702, P1711, P1712 und Die Anschlüsse fest P1713 abgegangen oder einsetzen. lose? NEIN NEIN Jedes Kühlgebläse Läuft jedes Kühlgebläse? überprüfen. NEIN Die peripheren Schaltkreise Liegt ca. 3 V an TL1723 von Q1711 überprüfen.
  • Seite 80 XR-1X Überprüfung des Komponentensignals Aus INPUT1 die Komponentensignale von 1080i (oder 720P) senden. Mit Tasten auf dem Hauptgerät oder der Fernbedienung INPUT1 wählen. Wird das Bild normal Ende angezeigt? NEIN Wird ein Bildsignal an Den Anschluss von FB3011, NEIN TL3002, TL3003 bzw.
  • Seite 81 XR-1X Überprüfung des RGB-Signals Aus INPUT1 die RGB- signale senden. Mit Tasten auf dem Hauptgerät oder der Fernbedienung INPUT1 wählen. Wird das Bild normal Ende angezeigt? NEIN Den Anschluss von Wird ein Bildsignal an NEIN TL3002, TL3003 bzw. FB3011, FB3012 und TL3004 gesendet? FB3013 überprüfen.
  • Seite 82 XR-1X VIDEO (Eingang 3) Überprüfung von S- überprüfen. VIDEO (Eingang 2) Das S-VIDEO-Signal von Das VIDEO-Signal von INPUT2 senden. Mit den INPUT3 senden. Mit den Tasten an dem Hauptgerät Tasten an dem Hauptgerät oder der Fernbedienung oder der Fernbedienung INPUT2 wählen.
  • Seite 83 XR-1X - M E M O - Downloaded from www.Manualslib.com manuals search engine...
  • Seite 84: Chassis Layout

    XR-1X CHASSIS LAYOUT / CHASSIS-ANORDNUNG Downloaded from www.Manualslib.com manuals search engine...
  • Seite 85 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 86: Block Diagram

    XR-1X BLOCK DIAGRAM / BLOCKSCHALTBILD POWER BALLAST UNIT R/C Front R/C Rear S+,S- Power Suppliies Sound AUDIO-IN Audio AMP AUDIO 3.3VA MUTE M62334 SCL5,SDA5 DC-DC 1.5V ZOOMLED ADJLED DC-DC 3.3V GPIO USBDN/P 4.6V 2.5V PWRGOOD RGB(15pin) R,G,B SCL,SDA PROM SCL,SDA EDID5V 3.3V...
  • Seite 87 XR-1X +/-/UP/DN/ENT/MENU POWER(G/R) MB88346 TEMP(R) Tilt Sence TEMP0 Temp. sence A966 TEMP1 FAN_VCC(12V) FAN1 Ctrl CONT1 FAN2 Ctrl CONT2 GPIO GPIO FAN3 Ctrl 50MHz Temp. FANLOCK Sence FAN1 Leaf SW FAN2 FAN3 SENSOR GPIO UNIT Photo Sensor CWINDEX Comparator 3.3V...
  • Seite 88: Overall Wiring Diagram

    XR-1X OVERALL WIRING DIAGRAM / GESAMTSCHALTPLAN THERMISTOR RH-HXA015WJPZ Downloaded from www.Manualslib.com manuals search engine...
  • Seite 89 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 90: Description Of Schematic Diagram

    XR-1X DESCRIPTION OF BESCHREIBUNG DES SCHEMATIC DIAGRAM SCHEMATISCHEN SCHALTPLANS VOLTAGE MEASUREMENT CONDITION: SPANNUNGSMESSUNGEN: 1. Voltages at test points are measured at the 1. Spannungen an den Prüfpunkten werden bei einer supply voltage of AC 220V. Signals are fed by a color Netzspannung von 220V gemessen, Signale werden für die Wartung mit einem Farbbalken-Signal generator...
  • Seite 91: Waveforms

    XR-1X WAVEFORMS / WELLENFORMEN 1 TL1706 2 TL3521 3 TL1722 MAIN(8/8) L-POW/SYNC MAIN(5/8) CWY1 MAIN(8/8) CWINDEX H:5msec/div H:500µsec/div H:5msec/div V:1V/div V:2V/div V:1V/div 4 IC3005(30) 5 IC3005(31) 6 IC3005(66) MAIN(1/8) HS_TE8200 MAIN(1/8) VS_TE8200 MAIN(1/8) GHS H:20µsec/div H:5msec/div H:20µsec/div V:1V/div V:1V/div V:1V/div...
  • Seite 92 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-1/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 93 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 94 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-2/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 95 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 96 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-3/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 97 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 98 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-4/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 99 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 100 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-5/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 101 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 102 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-6/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 103 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 104 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-7/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 105 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 106 XR-1X Ë MAIN UNIT / HAUPTEINHEIT-8/8 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 107 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 108 XR-1X Ë FORMATTER UNIT / FORMATTER-EINHEIT-1/3 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 109 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 110 XR-1X Ë FORMATTER UNIT / FORMATTER r-EINHEIT-2/3 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 111 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 112 XR-1X Ë FORMATTER UNIT / FORMATTER -EINHEIT-3/3 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 113 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 114 XR-1X Ë KEY UNIT / TASTE-EINHEIT Downloaded from www.Manualslib.com manuals search engine...
  • Seite 115 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 116 XR-1X Ë POWER BALLAST UNIT / NETZTEILEINHEIT AC INLET UNIT / AC-EINGANGS-EINHEIT Downloaded from www.Manualslib.com manuals search engine...
  • Seite 117 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 118 XR-1X Ë PHOTOSENSOR UNIT / PHOTO-SENSOR-EINHEIT Downloaded from www.Manualslib.com manuals search engine...
  • Seite 119: Printed Wiring Board Assemblies

    XR-1X PRINTED WIRING BOARD ASSEMBLIES LEITERPLATTENEINHEITEN AC INLET Unit (Component Side) AC-EINGANGS-EINHEIT (Bestückungsseite) AC INLET Unit (Wiring Side) AC-EINGANGS-EINHEIT (Leiterbahnseite) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 120 XR-1X MAIN Unit (Side-A) HAUPT-einheit (Seite-A) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 121 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 122 XR-1X MAIN Unit (Side-B) HAUPT-einheit (Seite-B) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 123 XR-1X Downloaded from www.Manualslib.com manuals search engine...
  • Seite 124 XR-1X FORMATTER Unit (Side-A) FORMATTER -einheit (Seite-A) FORMATTER Unit (Side-B) FORMATTER -einheit (Seite-B) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 125 XR-1X POWER BALLAS Unit (Side A) POWER BALLAST Unit (Side B) NETZTEeinheit (Seite-A) NETZTEeinheit (Seite-B) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 126 XR-1X KEY Unit (Side-A) KEY Unit (Side-B) TASTE-einheit (Seite-A) TASTE-einheit (Seite-B) PHOTOSENSOR Unit (Side-A) PHOTOSENSOR Unit (Side-B) PHOTO-SENSOR-einheit (Seite-A) PHOTO-SENSOR-einheit (Seite-B) Downloaded from www.Manualslib.com manuals search engine...
  • Seite 127: Parts Listł Electrical Parts

    3. ERSATZTEIL NR. 4. BESCHREIBUNG For location of SHARP Parts Distributor, 5. KODE 6. QUANTITÄT Please call Toll-Free; 1-800-BE-SHARP in CANADA: Contact SHARP Electronics of Canada Limited Phone (416) 890-2100. ★ MARK: SPARE PARTS-DELIVERY SECTION ★ MARKIERUNG : ERSATZTEILE-LIEFERUNG ★ ★...
  • Seite 128 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKC416FMF5 L3306 VPD9M1R5JR77NY J Peaking 1.5µH L3351 VPD9M1R0JR57NY J Peaking 1µH MAIN UNIT (Continued) L3352 VPD9M1R8JR84NY J Peaking 1.8µH L3361 VPD9M1R0JR57NY J Peaking 1µH L3362 VPD9M1R8JR84NY J Peaking 1.8µH...
  • Seite 129 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKC416FMF5 C2552 VCCCCY1HH101JY J 100p Ceramic C2553 VCCCCY1HH101JY J 100p Ceramic MAIN UNIT (Continued) C2554 VCCCCY1HH101JY J 100p Ceramic C2555 VCCCCY1HH101JY J 100p Ceramic C2556 VCCCCY1HH101JY J 100p Ceramic C2015 VCKYCY1EF104ZY J 0.1...
  • Seite 130 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKC416FMF5 R1703 VRS-CY1JF103JY J 10k 1/16W Metal Oxide R1704 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide MAIN UNIT (Continued) R1705 VRS-CY1JF100JY J 10 1/16W Metal Oxide...
  • Seite 131 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKC416FMF5 R3020 VRS-CH1JF101JY J 100 1/16W Metal Oxide R3021 VRS-CY1JF470JY J 47 1/16W Metal Oxide MAIN UNIT (Continued) R3022 VRS-CY1JF102JY J 1k 1/16W Metal Oxide R3023 VRS-CJ1JF332JY J 3.3k 1/16W Metal Oxide...
  • Seite 132 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code FB2202 RBLN-0210TAZZY J Ferrite Bead DUNTKC416FMF5 FB2203 RBLN-0210TAZZY J Ferrite Bead MAIN UNIT (Continued) FB2204 RBLN-0210TAZZY J Ferrite Bead FB2205 RBLN-0210TAZZY J Ferrite Bead FB2501 RBLN-0006TAZZY...
  • Seite 133 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKC432WEF5 MISCELLANEOUS PARTS P1101 QPLGN0363TAZZY J Plug, 3Pin (CW) KEY UNIT (Continued) QCNW-C221WJQZ J Lead Relay Wire DIODES AND LED'S DUNTKC618WEF0 D2601 RH-PX0196TAZZY J LED (RED), TEMP...
  • Seite 134 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code RDENCA075WJZZ C729 98ENZUSYC71300 J 1000p 50V C730 98ENZUSYC73000 J 33 POWER/BALLAST UNIT C731 98ENZUSYC73100 J 0.01 630V å C732 98ENZUSYC73200 J 4700p AC250V INTEGRATED CIRCUITS å...
  • Seite 135 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code RDENCA075WJZZ RUNTKA079WJZZ POWER/BALLAST UNIT(Continued) AC Inlet UNIT CP711 98ENZUSYF70200 J Fuse, 1A/AC250V DIODES, THERMISTER AND ABZOBER CP712 98ENZUSYF70101 J Fuse, 4A/AC250V å DB701 98ENZUSYDB7010 J D10XB60 CN711 98ENZUSYCN7110 J Connector, 8 Pin å...
  • Seite 136: Ł Cabinet And Mechanical Parts

    DBDYFA012WEF0 J Front Body Ass'y Not Available 3-1-1 – Front Body — 3-1-2 GCOVAA769WJSA J R/C Cover 3-1-3 HiNDPB101WJSB J "SHARP" Logo Plate 3-1-4 PSLDPA021WJ00 J Light Shield GLEGPA025WJKB J Adjuster (Front) LHLDZA362WJKA J Speaker Holder XEBSN26P08000 J Screw, x4...
  • Seite 137 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code CABINET AND MECHANICAL PARTS 1-1-6 1-1-7 1-1-1 1-1-9 1-1-3 1-1-8 1-1-2 1-1-10 1-2-2 1-2-6 1-2-5 1-2-4 1-1-4 1-2-3 1-2-1 4 4-1 4-1-1 5 5-1 5-1-3...
  • Seite 138 XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code OPTICAL MECHANISM PARTS Not Available – Optic Mechanisum Ass'y — CDUC-A052WEF0 J Lamp House Ass'y CFiLWA074WJ01 J Color Wheel AN-XR1LP – Lamp Ass'y, Option article —...
  • Seite 139 XR-1X ★ ★ Ref. No. OPTICS MECHANISM PARTS Part No. Description Code Ref. No. Part No. Description Code 8-15 8-14 8-12 8-11 8-10 8-13 8-11 8-16 8-11 IC9501 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 140: Supplied Accessories

    XR-1X ★ ★ Ref. No. Part No. Description Code Ref. No. Part No. Description Code PACKING PARTS SUPPLIED ACCESSORIES (NOT REPLACEMENT ITEM) GCASNA011WJZZ J Soft Case SPAKCB437WJZZ – Packing Case — QACCBA015WJPZ J AC Cord for UK, SPAKFA461WJZZ – Accessories Case —...
  • Seite 141: Packing Of The Set

    XR-1X ★ ★ Ref. No. PACKING OF THE SET / VERPACKEN DES GERÄTS Part No. Description Code Ref. No. Part No. Description Code Operation manual Polyethylene bag (TiNS-B148WJN1) (SSAKA0160CEZZ) CD ROM (UDSKAA045WJZZ) AC Cord Button Batteries (QACCBA015WJPZ Guarantee Card for UK Hong Kong...
  • Seite 142 XR-1X COPYRIGHT © 2004 BY SHARP CORPORATION ALL RIGHTS RESERVED. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.
