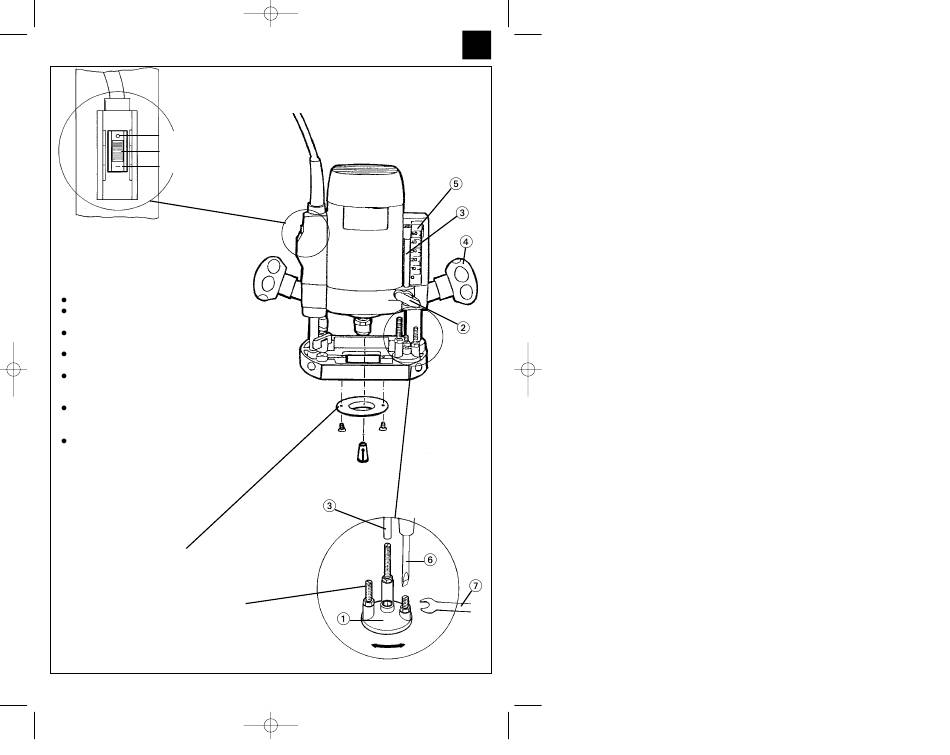

Adjusting the depth of cut

Place the machine on the workpiece.
Pre-set the turret stop (1) as
required.
Undo the thumb screw (2) of the
depth stop (3).
Undo the right-hand locking handle
(4) for fixing the depth.
Lower the machine slowly until the
cutter touches the workpiece and
secure it with the locking handle.
Set the depth stop in accordance
with the scale (5) and clamp in place
with the thumb screw (2).
Fine adjustments can be made by
readjusting the respective screws on
the turret stop with a screwdriver (6)
and a spanner (7).
Important! Never make adjustments
when the router is running.
Fitting the guide bush
The guide bush is fastened to the routing base from the
bottom using 2 screws.
The screws on the turret stop enable 3 depth
settings simply by turning.
Seite 11
Pull out the power plug before making any
alterations to the machine.
