Important!
For the sake of your health,
always use the dust extractor.

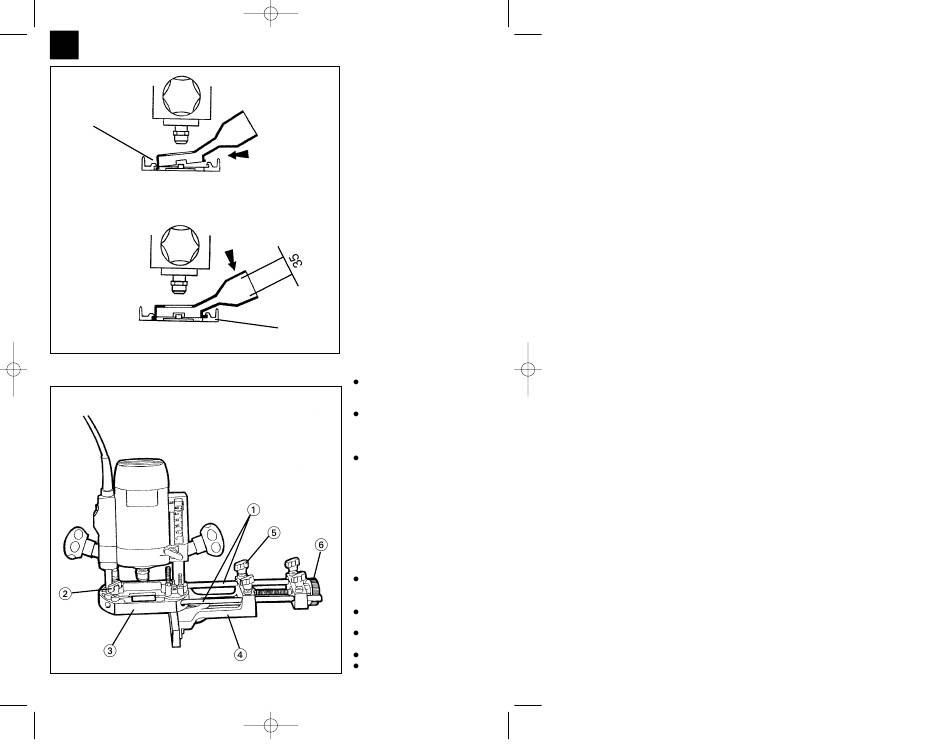

Fitting and dismantling
the dust extractor
A Insert the extractor socket in
channel 'A' of the routing base.
The extractor socket is suitable
for dust extractors with a
suction hose diameter
of 35 mm.
B Press the extractor socket
down and forward until it
latches into channel 'B'.
Dismantle in reverse order.
B
Adjusting the parallel
stop
Fasten the guide shafts (1) to
the routing base (3) using the
two thumb screws (2).
Adjust the parallel stop (4) to
the required distance and
clamp in place with the thumb
screws (5).
Fine adjustments are possible
by slackening the thumb screws
(5), adjusting the knurled nut (6)
and securing it again with the
screws (5). One revolution of
the knurled nut (6) equals
1.25 mm.
Important!
Carelessness can result in
damage.
Depending on the material,
deeper cuts should be
performed in several passes.
Use only properly ground
cutters.
Mount cutter with friction
locking.
Wear goggles.
Always use the dust extractor.
