Installation and electrical connection

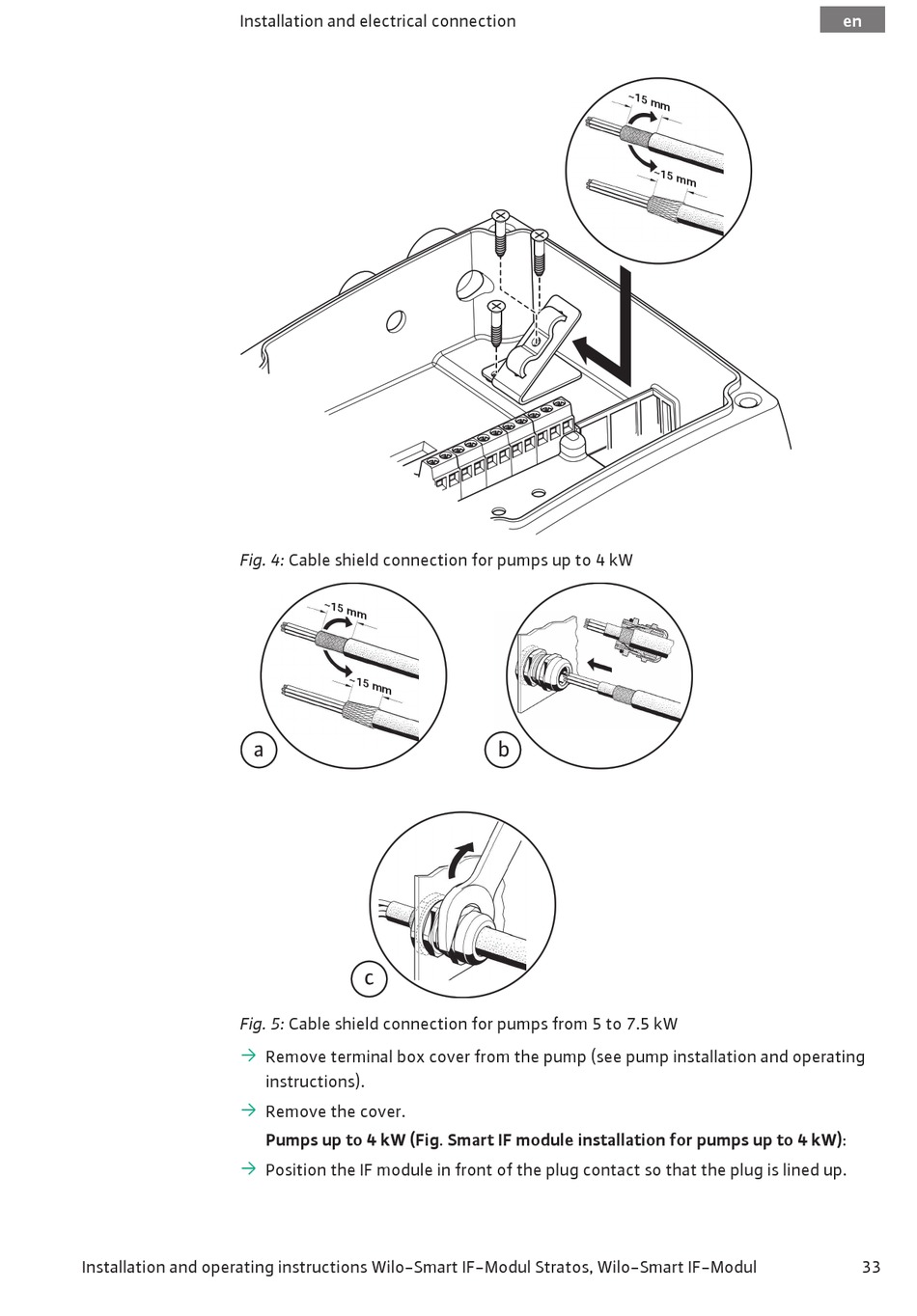

Fig. 4: Cable shield connection for pumps up to 4 kW
Fig. 5: Cable shield connection for pumps from 5 to 7.5 kW
ƒ
ƒ
ƒ
Installation and operating instructions Wilo-Smart IF-Modul Stratos, Wilo-Smart IF-Modul
Remove terminal box cover from the pump (see pump installation and operating
instructions).
Remove the cover.
Pumps up to 4 kW (Fig. Smart IF module installation for pumps up to 4 kW):
Position the IF module in front of the plug contact so that the plug is lined up.
