Installation and electrical connection
7.1

Stratos Smart IF module installation

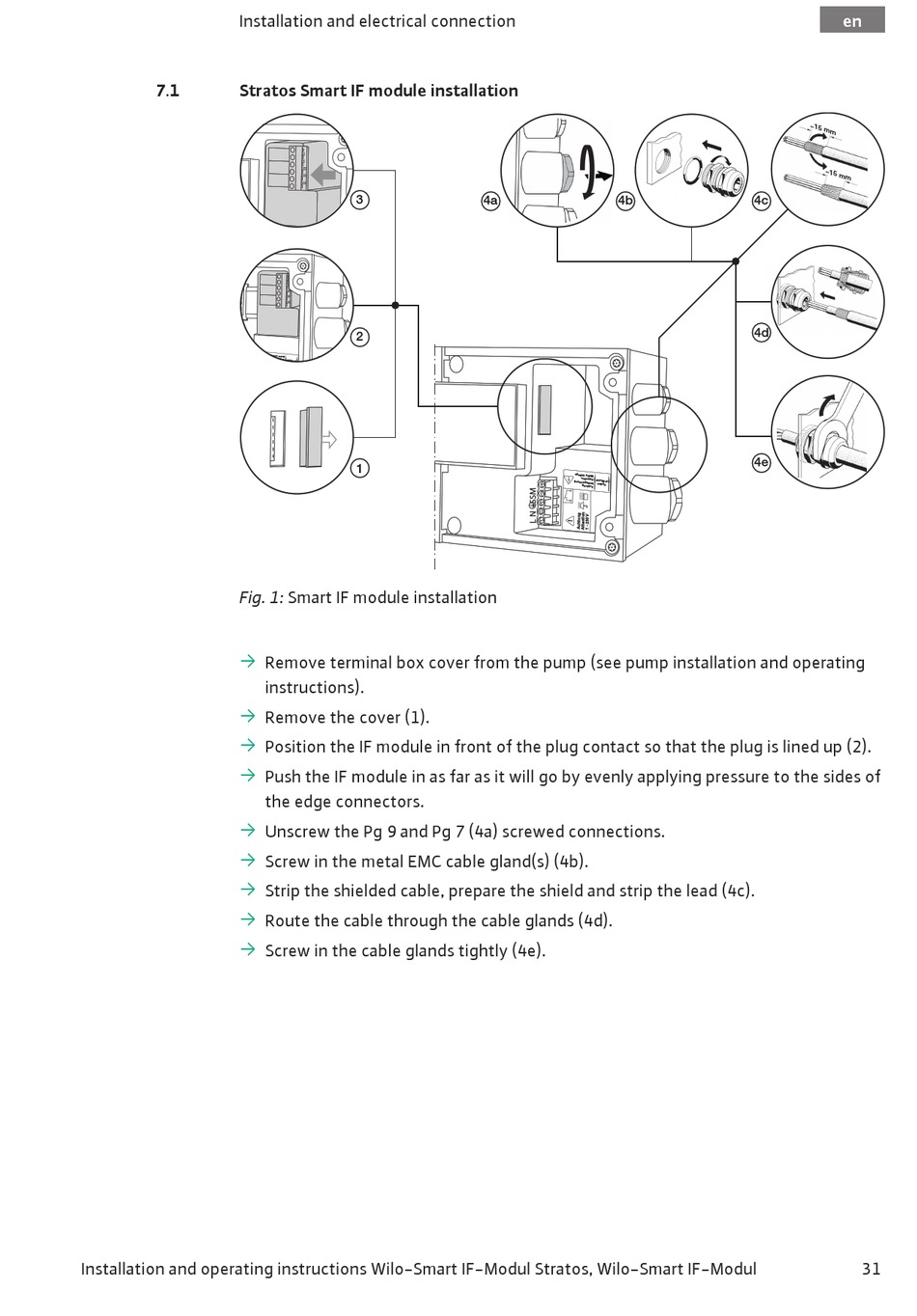

Fig. 1: Smart IF module installation
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
Installation and operating instructions Wilo-Smart IF-Modul Stratos, Wilo-Smart IF-Modul
3
2
1
Remove terminal box cover from the pump (see pump installation and operating
instructions).
Remove the cover (1).
Position the IF module in front of the plug contact so that the plug is lined up (2).
Push the IF module in as far as it will go by evenly applying pressure to the sides of
the edge connectors.
Unscrew the Pg 9 and Pg 7 (4a) screwed connections.
Screw in the metal EMC cable gland(s) (4b).
Strip the shielded cable, prepare the shield and strip the lead (4c).
Route the cable through the cable glands (4d).
Screw in the cable glands tightly (4e).
