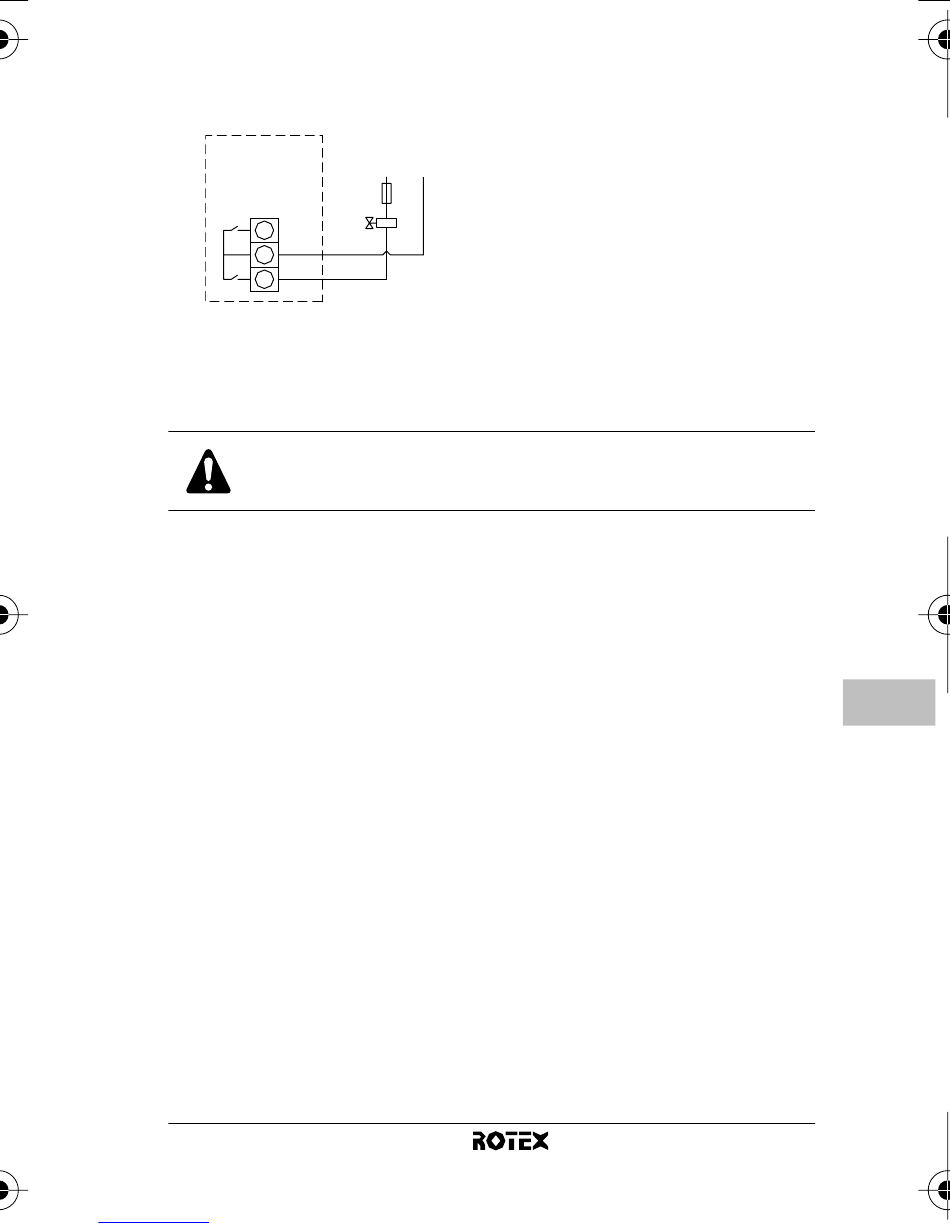

7b When connected to the motorized valve, wire the motorized
8
9
10 Close the thermostat cover.
11 Remove the protective film from the LCD.
RKRTW
Room thermostat
4PW50082-1
Downloaded from www.Manualslib.com
valve and the thermostat as shown below (for heating-only
applications).
RKRTW 1N~50 Hz 230 VAC
X1M
C
com
H
The output relays (H and C are voltage-free contacts) can
handle a maximum load of 5 A - 230 VAC.
Fasten the thermostat with the supplied screws.
Be careful not to pinch the wiring when fastening.
Put the transparent cable protection back into place and fix
the cable protection with the screw.
manuals search engine
L N
Installation manual
4
