SENSORS/MODULES CONNECTIONS EXPLAINED

Telemetry module FS-CPD02
Speed recognition module
Version 1:
Version 2:
Procedure:
1. Connect the 3-pin connector to the "Sens" port on the receiver
or, if using more than one telemetric module, to the "IN" port on
another module.
2. The sensor must be arranged on a flat surface next to a rotating
part such as the main gearwheel or motor pinion or on the
drive shaft. A line should be drawn on the rotating part using
a waterproof black or white pen to identify the sensor. (Note:
Telemetry module FS-CTM01
Temperature recognition module
Procedure:
1. Connect the 3-pin connector to the "Sens" port on the receiver
or, if using more than one telemetric module, to the "IN" port on
another module.
2. Attach the temperature sensor in a desired location (e.g. motor
or ESC). You are advised to secure this through direct contact
with a strip of adhesive tape.
GB // 46
Downloaded from www.Manualslib.com

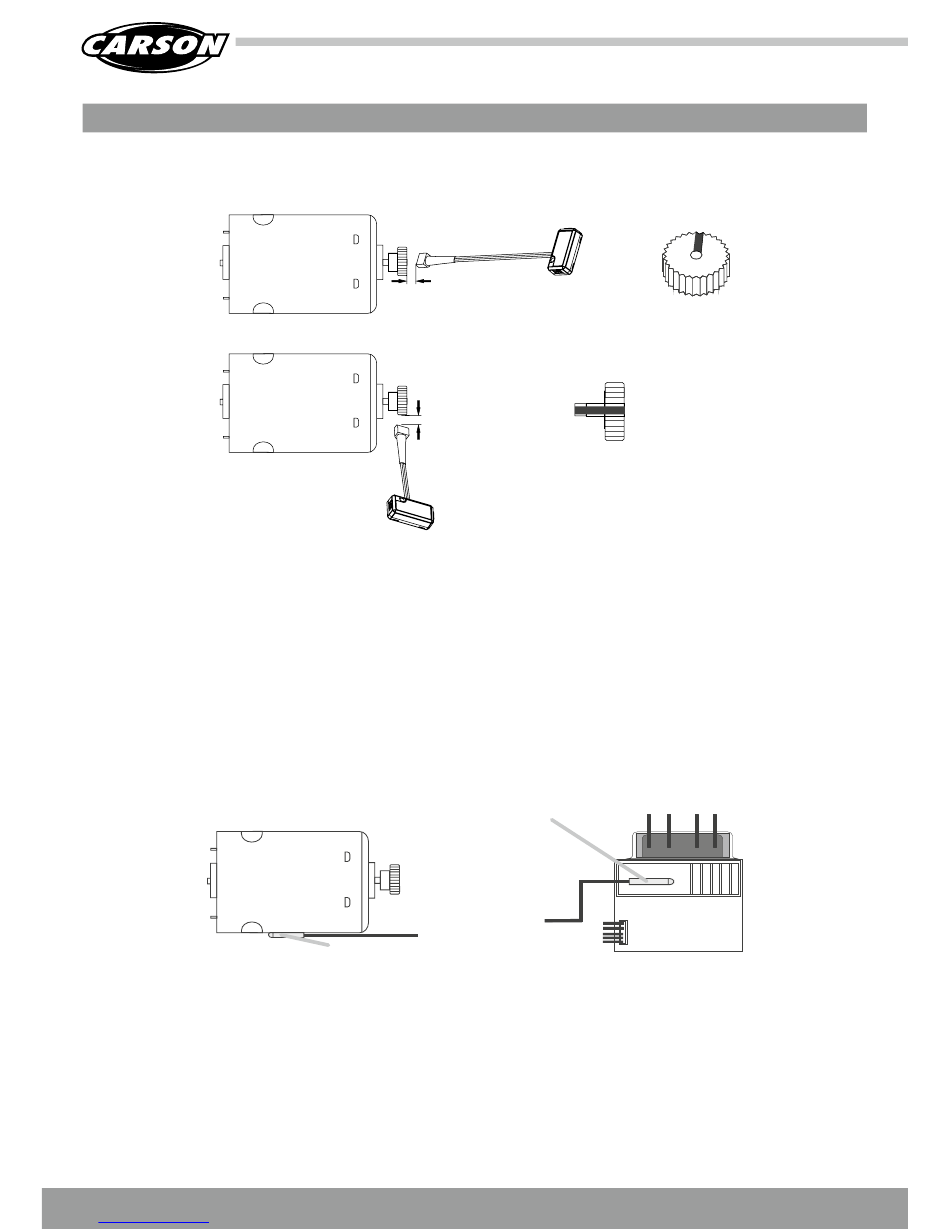

max 10 mm
Temperature sensor for motor
manuals search engine
Align the sensor with the
motor pinion
Align the sensor directly with
the grub screw
max 10 mm
Marker
The greater the colour contrast between identifying line and
rotating part, the better the result). The distance between
sensor and rotating part should be no greater than 1cm.
3. Switch on the transmitter and the model (receiver). "Motor
Speed 2: 0 Upm" will now be displayed on the main screen.
The speed shown indicates the revolutions per minute of the
rotating vehicle part on which the sensor is installed.
Temperature sensor for speed
controller
3. Switch on the transmitter and the model (receiver).
"Temperature 1: 25 0?" will now be displayed on the main
screen. The value shown indicates the temperature of the
vehicle part on which the sensor is installed.
Marker
ESC
