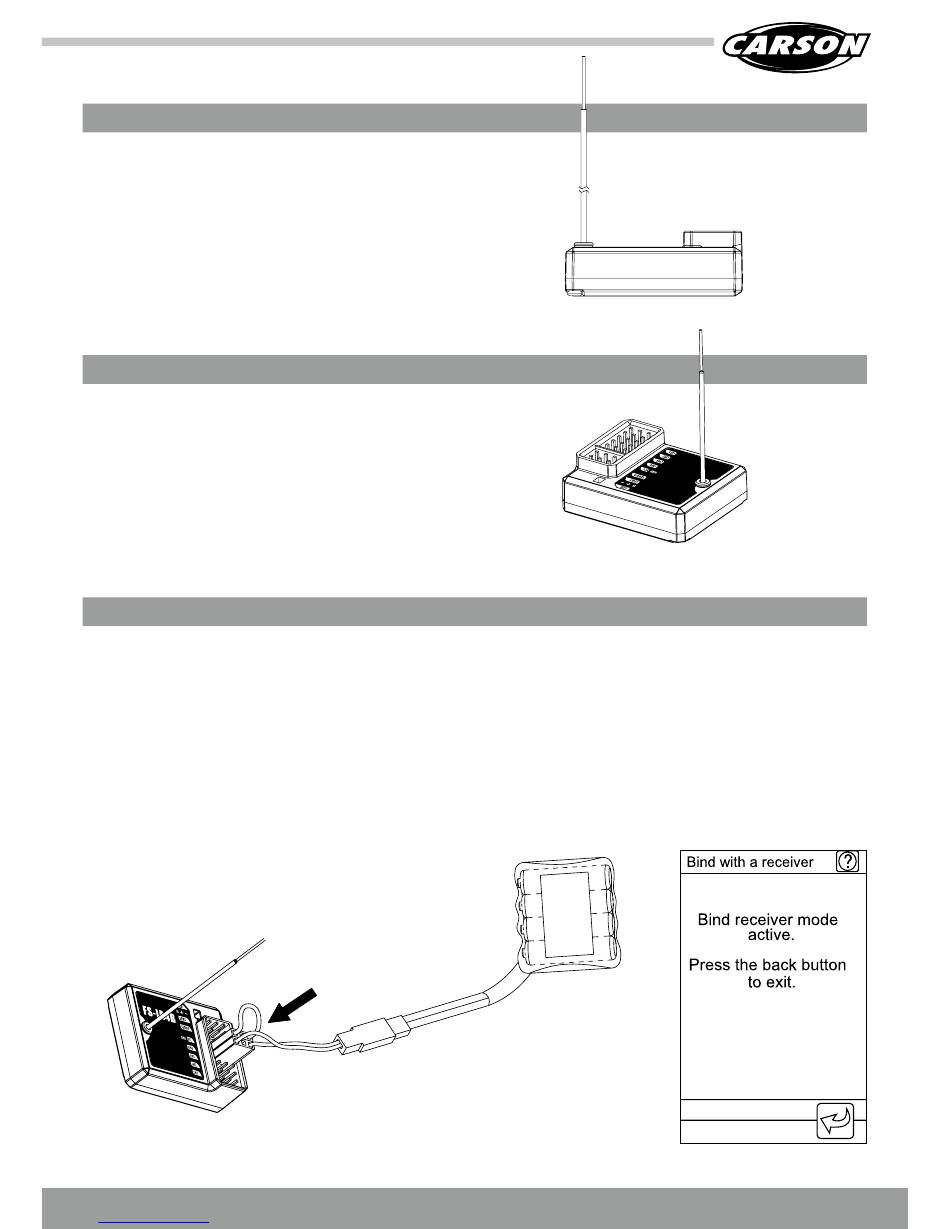

RX AERIAL

Advice
To obtain a better range, the RX aerial must be installed
perpendicularly, away from metallic components.

RECEIVER CONNECTIONS EXPLAINED

CH1-CH4: Connection to the relevant channel (servo/ESC, etc.)
BIND, VCC: Connection for binding connector and power supply.
SERVO: i-bus connection for outgoing PPMS data signals and for
connecting the serial bus module to extend the channels
further.
SENS: Connection for all types of sensors.

BINDING

The receiver supplied is already bound to the transmitter. If you
would like to bind a new receiver to the system, please proceed
as follows:
1. Install the battery in the transmitter and switch on the remote
control.
2. Open the main menu and select the "RX Set-up" function on the
second menu page and then press "Bind with a receiver" to start
the binding procedure.
3. Insert the binding cable into the RX connection "B/VCC".
Downloaded from www.Manualslib.com
Binding connector
Receiver
manuals search engine
Antenna cable
Receiver
4. Connect a 6V battery to any channel from CH1 to CH4. Ensure
correct polarity. The receiver LED will start to flash.
5. The transmitter will end the bind mode automatically once the
receiver has been successfully connected to the transmitter.
6. Unplug the binding cable and reconnect the receiver to the
battery. Please connect the servos and sensors to the receiver
and check all the functions.
7. If the functions should fail to work properly, you will need to
repeat the above steps again.
RX battery
45 // GB
