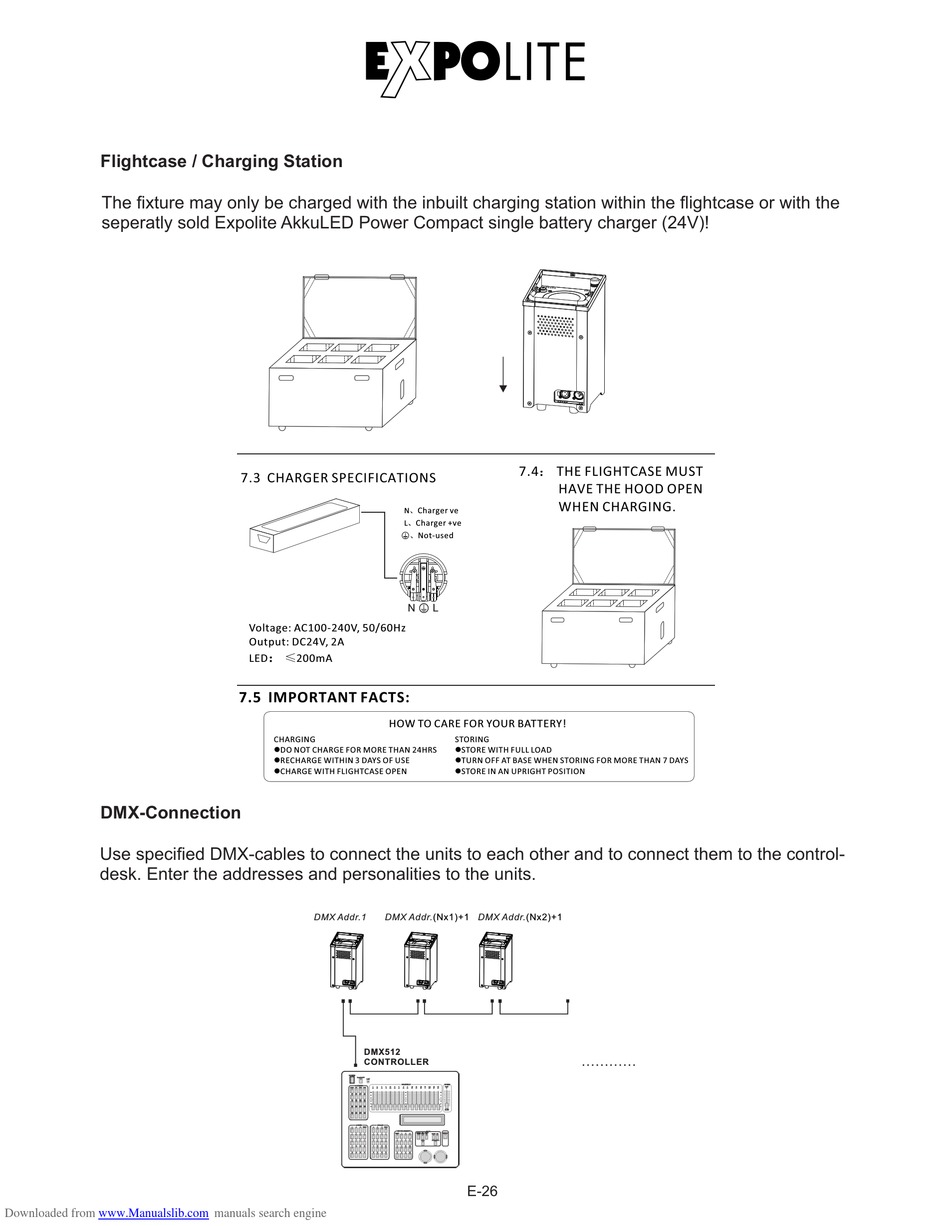

Flightcase / Charging Station
The fixture may only be charged with the inbuilt charging station within the flightcase or with the
seperatly sold Expolite AkkuLED Power Compact single battery charger (24V)!

DMX-Connection

Use specified DMX-cables to connect the units to each other and to connect them to the control-
desk. Enter the addresses and personalities to the units.
Downloaded from www.Manualslib.com
7.3 CHARGER SPECIFICATIONS
Voltage: AC100-240V, 50/60Hz
Output: DC24V, 2A
：
≤200mA
LED
7.5 IMPORTANT FACTS:
HOW TO CARE FOR YOUR BATTERY!
CHARGING
lDO NOT CHARGE FOR MORE THAN 24HRS
lRECHARGE WITHIN 3 DAYS OF USE
lCHARGE WITH FLIGHTCASE OPEN
DMX Addr.1 DMX
DMX512
CONTROLLER
manuals search engine
7.4： THE FLIGHTCASE MUST
HAVE THE HOOD OPEN
WHEN CHARGING.
N、 Charger ve
L、 Charger +ve
、 Not-used
N L
STORING
lSTORE WITH FULL LOAD
lTURN OFF AT BASE WHEN STORING FOR MORE THAN 7 DAYS
lSTORE IN AN UPRIGHT POSITION
Addr.(Nx1)+1 DMX Addr.(Nx2)+1
. . . . . . . . . . . .
E-26
