In the menu AUTO the automatic programs stored in the device are activated. The programs AT01 to
AT10 are permanently stored in the device. The speed of these programs can be adjusted from
0 - 255 (P.0-255).
The programs Pr01 to PR10 are editable. This is described under Edit User Programs. Automatic
programs are transmitted as master to connected slave devices. For master-slave operation, signals
are sent via the DMX line. This may disturb other devices on the same line.
Choose Run Mode
MENU
The operating mode is set in menu RUN. For operation on a DMX-controller DMX needs to be
set. SLAV sets the fixture into slave mode.
Edit User Programs
MENU
In the menu EDIT the user programs PR.01 to PR.10 can be edited. Every program can have up to
30 steps (scenes). Every step persists of the parameter colours RED, Green (GREN), BLUE,
Amber (AMBR), Strobe (STRB) „0-20Hz", Time (TIME) and Fade (FADE). User programs can be
transfered to other fixtures (see master/slave).
Step-by-step programming of the custom stand-alone programs with up to 30 different steps.
NOTE: For less than 30 steps the TIME and FADE of the last step needs to be set to 0.
With EKY 1-6 the EFFECT-buttons 1-6 on the remote control can be programmed with either the auto
programs AT.01 - AT.10 or the custom programs PR.01 - PR.02.
With CKY 1-6 the colors of the COLOR-buttons 1-6 on the remote control can be programmed by
using the parameter RED, Green (GREN), BLUE, Amber (AMBR) and Strobe (STRB).
Additional functions of the remote control are explained under Functions of the Remote Conrol.
Downloaded from www.Manualslib.com
PERSON RUN HSIC DMX
HSIC SLAV
HSIC EDIT PR.01
PR.02
o
o
o
PR.10
EKY 1
EKY 2
o
o
o
EKY 6
CKY 1
CKY 2
o
o
o
CKY 6

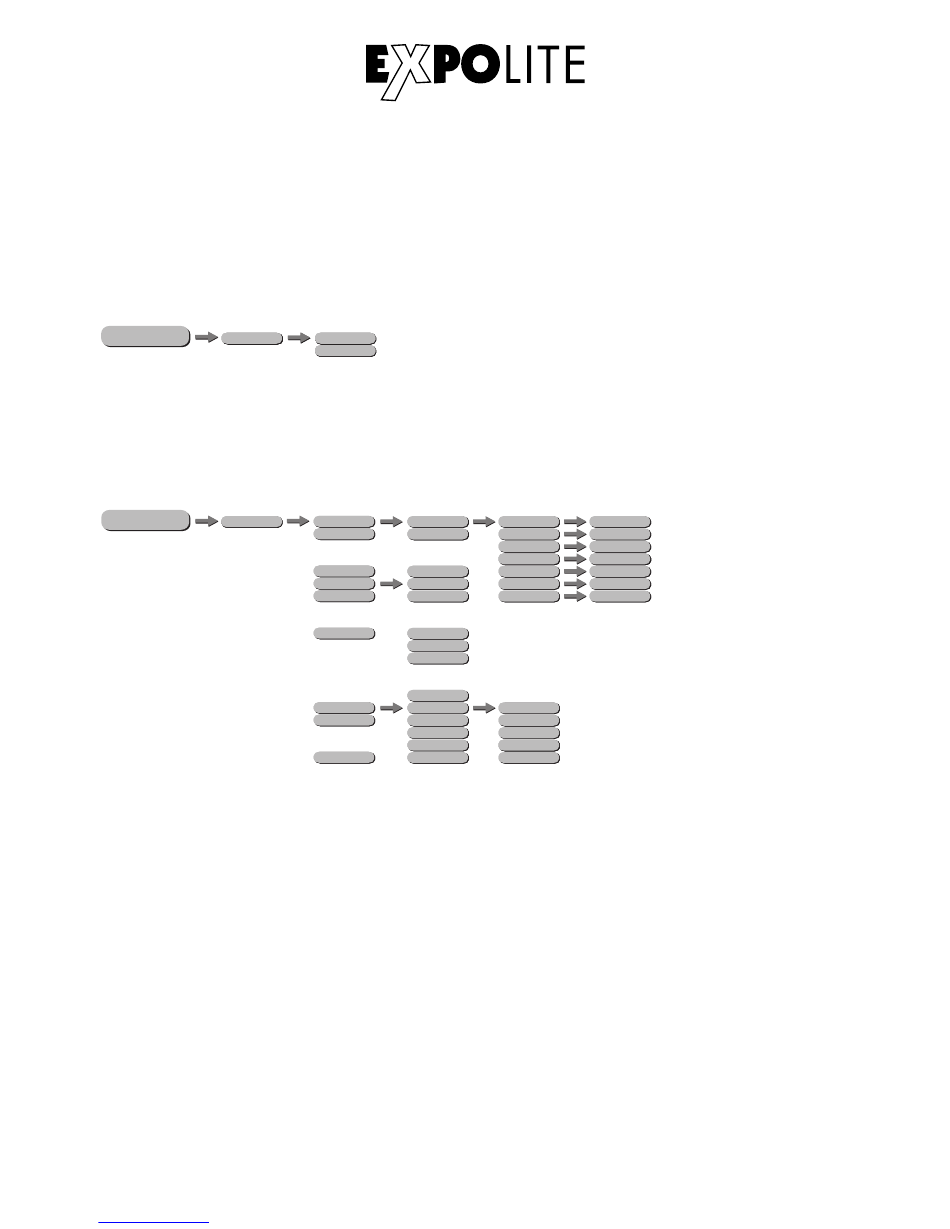

Example for time settings of a stand-alone programm with 3 steps:
