Setting DMX-Address
MENU
The DMX start address of the fixture is set in the menu ADDR. This is retained even when changing
the personality.
Setting DMX-Personality
MENU
The personality is set in the menu PERS. There are eight different modes which can be choosen:
TOUR (10 channels), TR16 (15 channels), ARC.1 (3 channels), AR1.D (4 channels), ARC.2
(4 channels), AR2.D (5 channels), AR2.S (6 channels) and HSV (3 channels).
Edit Static Colours
MENU
Static colours for stand-alone operation are set in STAT. These are mixed using the DMX value scale
0-255 for Red (RED), Green (GREN), Blue (BLUE) and Amber (AMBR), as well as the strobe value
0-20Hz (STRB).
Activating Auto Programs
MENU
In the menu AUTO the automatic programs stored in the device are activated. The programs AT.01 to
AT.10 are permanently stored in the device. The speed of these programs can be adjusted from
0 - 255 (P.0-255).
The programs PR.01 to PR.10 are editable. This is described under Edit User Programs. Automatic
programs are transmitted as master to connected slave devices. For master-slave operation, signals
are sent via the DMX line. This may disturb other devices on the same line.
Downloaded from www.Manualslib.com

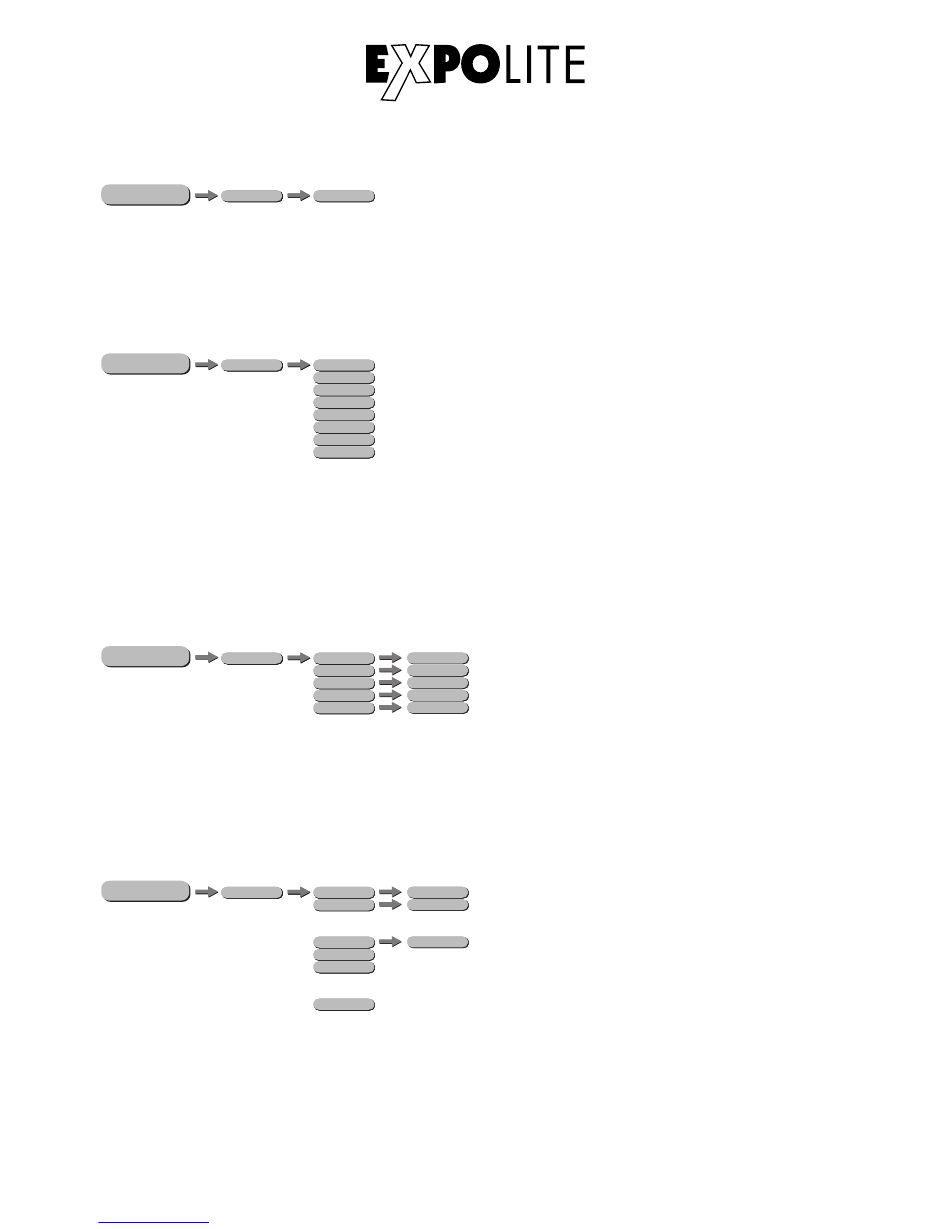

D.(001 - 512)
