The charger parameters can be set individually. More information can be found in the
"Configuration mode" section of the battery charging system Operating Instructions. En-
sure that the battery to be charged matches the configuration of the battery charging sys-
tem.
Plug in the charging plug
2
The charger detects that the battery is connected and starts charging. If start-up delay is
activated, then charging will start at the end of the set delay time. More information can be
found in the "Display" chapter, "Configuration mode" section of the battery charging system
Operating Instructions.

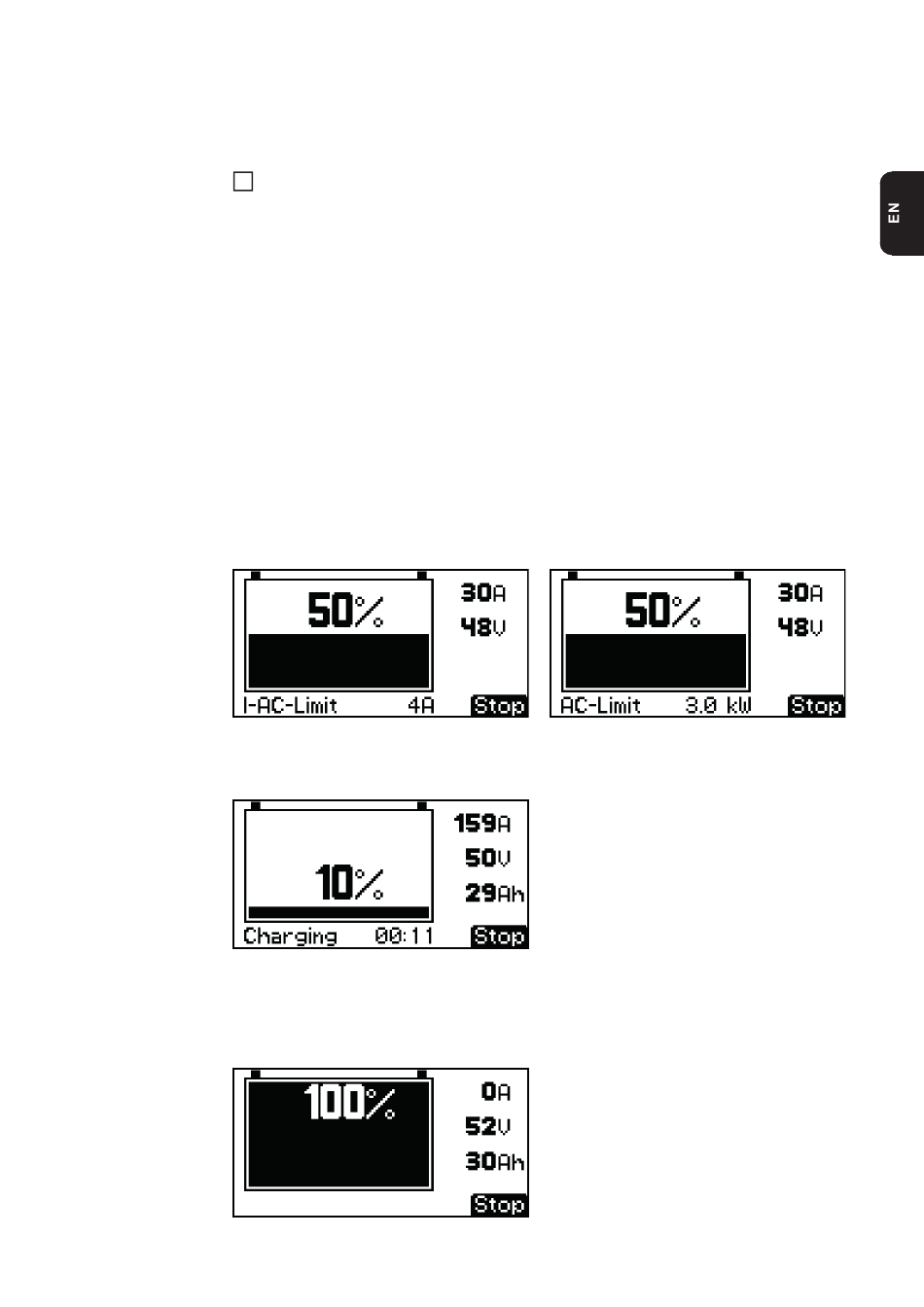

During the charging process the display shows the following values:
- Current charging current (A)
- Current charging voltage (V)
- The ampere hours (Ah) already charged
- Current state of charge (%)
- The time (hh:mm) since charging started
- If set:
Primary current limit (A)
Power limitation through calendar setting (kW)
When the primary current limit or calendar-based power limitation are enabled, the respec-
tive limit value is shown on the display while charging is in progress. If both functions are
enabled at the same time, the lower limit is shown.
If the blue indicator is set to "state of charge" (see "Additional functions" in the "Display"
chapter), the blue indicator lights up once the state of charge exceeds a defined % value.
The battery symbol indicates the current state of charge. The battery state of charge is stat-
ed as a percentage.
If the charging process is interrupted because the "Stop / Start" button was pressed, the
display shows that the charging process has been stopped.
Once charging has completely finished, the
green LED lights up. The battery voltage
and the charged ampere hours up to
unplugging the battery are shown.
