Display
History mode History mode provides information about the parameters for all the stored charging pro-
cesses. In order to show changing or different displays, two versions of the display window
are shown below:

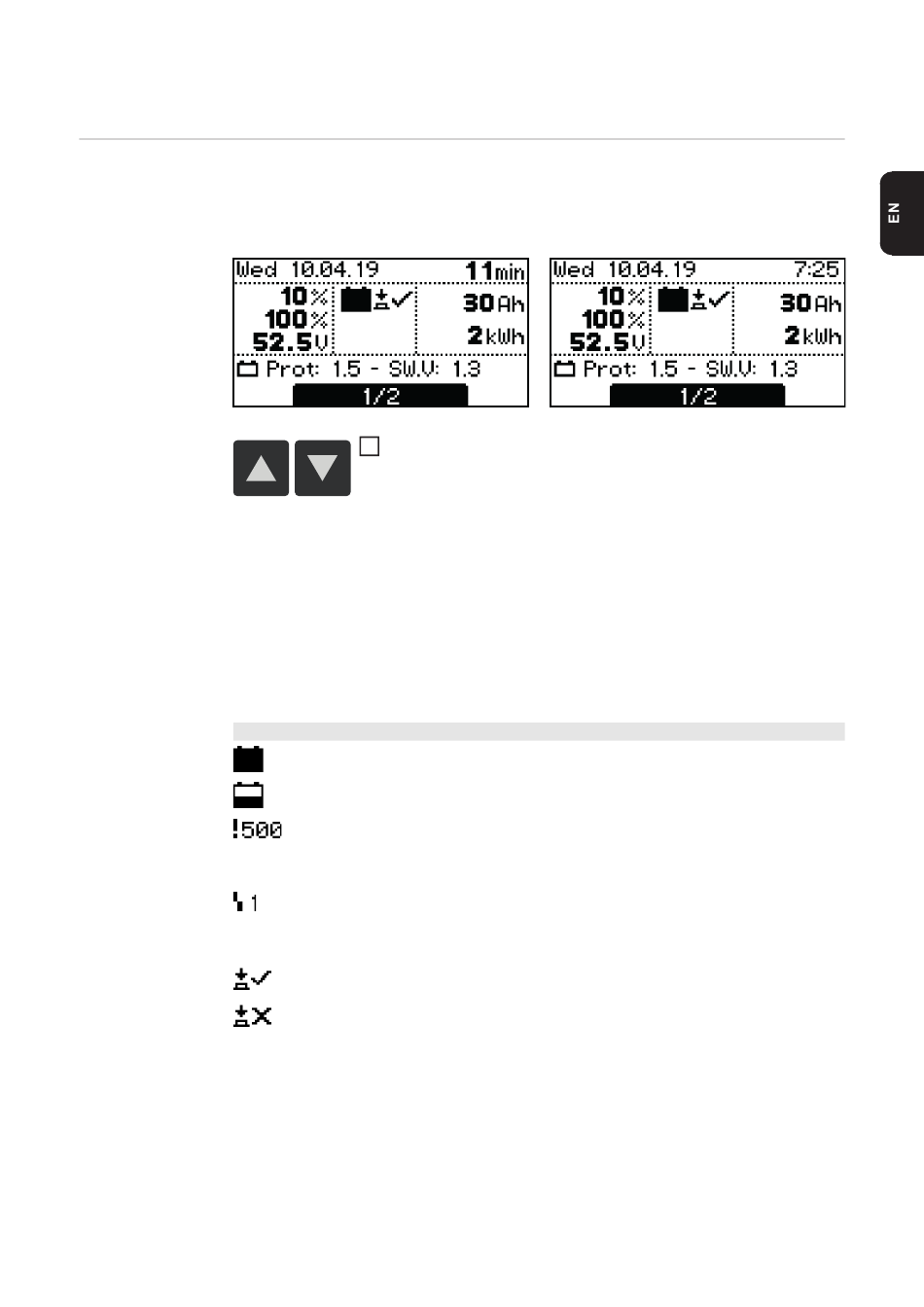

Text content of the display window:
-
-
-
-
-
-
-
-
-
Symbols shown
Use the "Up/Down" keys to switch between the pages for each
1
stored charging process
Start date of charge, e.g. Wednesday, 10.04.19
Duration of charge, e.g. 11 min or time charging started, e.g.: 7:25
State of charge at when charging starts, e.g. 10%
State of charge when charging ended, e.g. 100%
Voltage at charge end, e.g. 52.5 V
Consumed Ah, e.g. 30 Ah
Consumed kWh, e.g. 2 kWh
Protocol version used, e.g.: V1.5
Battery software version, e.g.: V1.3
- Full battery:
Charging has been completed
- Flat battery:
Charging has not been completed
- Exclamation mark with number:
Warning has been output with the corresponding status code. More informa-
tion can be found in the "Status codes" section of the battery charging system
Operating Instructions.
- Symbol with number:
Error has been output with the corresponding status code. More information
can be found in the "Status codes" section of the battery charging system Op-
erating Instructions.
- Key symbol with a tick:
Charging was stopped properly using the "Stop/Start" key
- Key symbol with a cross:
Charging was stopped without using the "Stop/Start" key
