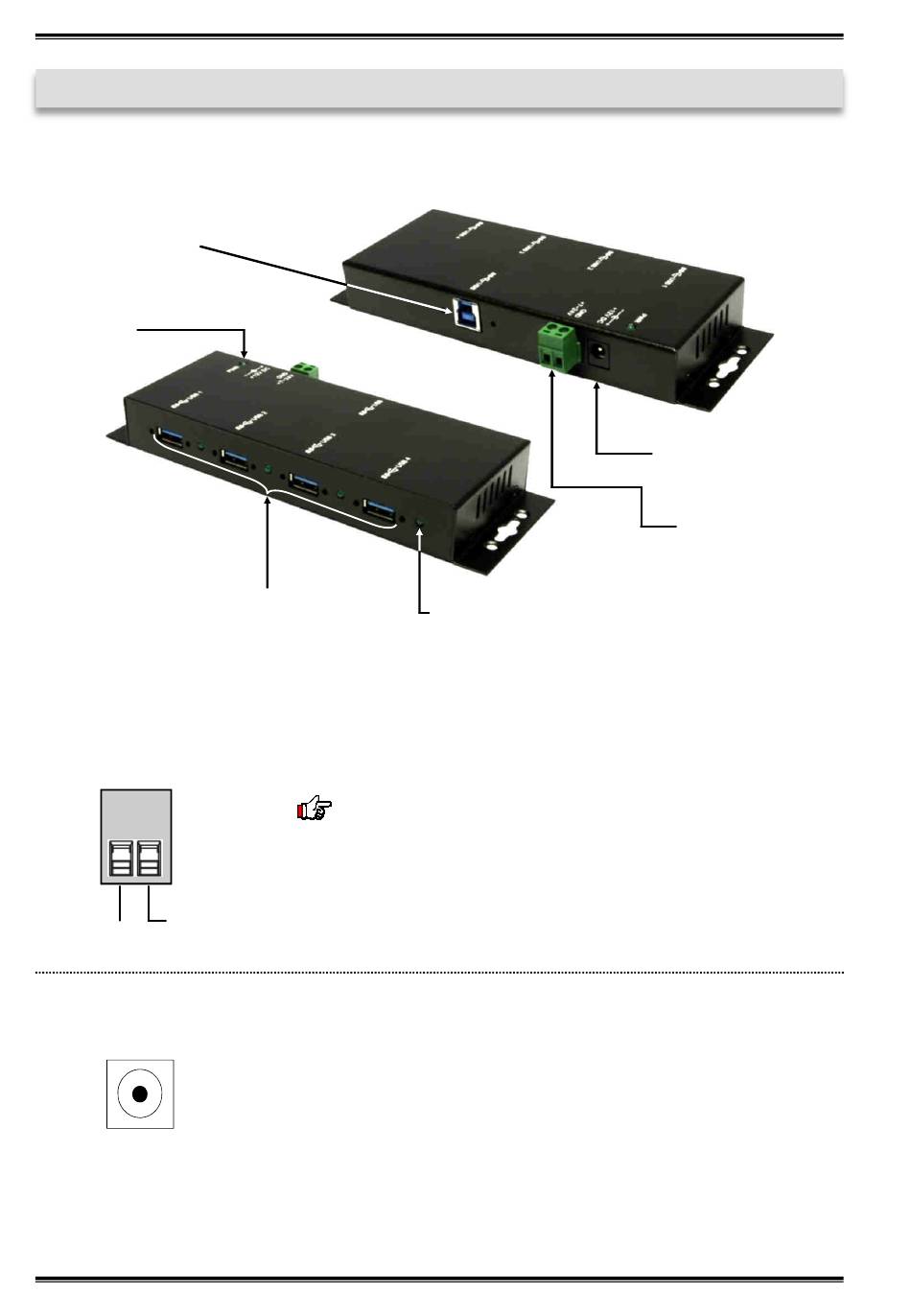

3. Layout, Connections & Jumper Settings

3.1 Layout

1x USB 3.1 (Gen1)
Upstream B-Port
Power LED
4x USB 3.1 (Gen1)
Downstream A-Port
3.2 Connections
+7V - 24V T-Block:
GND (Ground)
+7V - 24V
12V Connector:
© Copyright 2019 by EXSYS Vertriebs GmbH. All Rights Reserved
for each Port
ATTENTION!!
Never connect power to GND, it will destroy
your Hardware!!!
ATTENTION!!!
Use only with optional Power Supply!
10
Status LED
EX-1184HMV-22
12V DC Connector for
optional Power Supply
7-24V T-Block
for optional external
Power Supply
