4. Installation

Insertion:
Push fully in
Signal
Cold water and
lead
sparkling water
Downloaded from
www.Manualslib.com

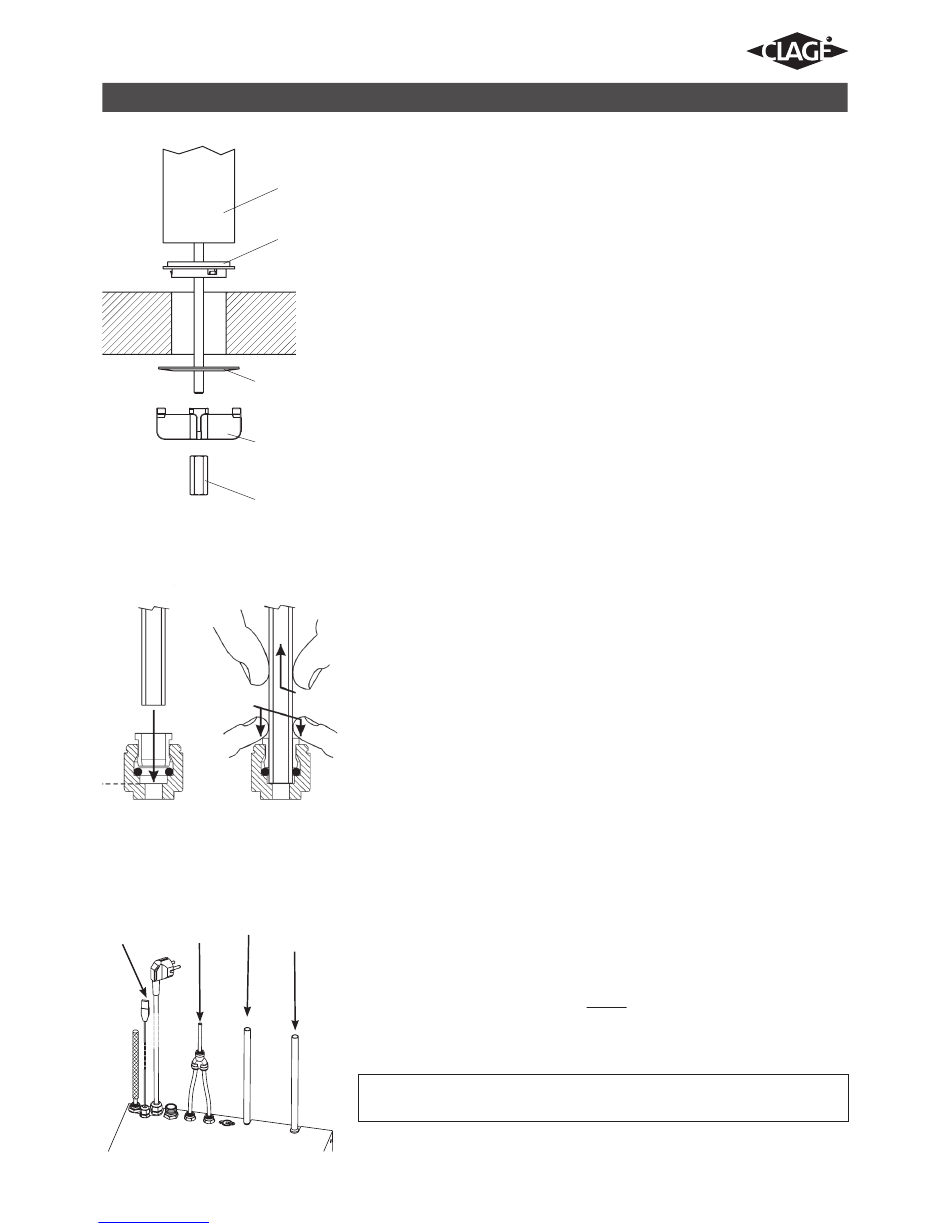

Installing the tap

Note: The tap must not be installed more than 900 mm above the base of the
undersink unit. Failure to do this may result in poor water delivery.
Tap
Note: Under no circumstances should the tap be twisted after the installation is
complete.
Spacer
1. Make sure that the tap location will allow water from the tap to fall into a sink or
other basin fitted with a drain to drain away.
2. Cut a 35 mm diameter hole in the worktop / sink at the place where the tap is to be
installed.
3. Push the black spacer on to the tap from underneath and ensure it remains in
position. A light smearing of silicone sealant on the underside of the spacer will
ensure a watertight fit.
S/S washer
4. Pass the hoses down through the 35 mm hole in the worktop / sink and locate the tap
head on its mounting location.
5. From the underside, push the stainless steel washer over the hoses and then push the
Spider clamp
spider clamp on to the threaded rod of the tap fitting. Secure the spider clamp with
the fastening nut. Check the tap head is in the correct position before tightening up
the nut.
Fixing nut

Installing the undersink unit

Note: An air gap of at least 50 mm at the left and right of the unit must
be provided for adequate ventilation. If the unit is to be operated inside a
Removal:
cupboard, the silicone buffers supplied should be affixed to the inside edge of
the cupboard doors. The 4 mm air gap thus created provides a minimum fresh
air supply.
Note: Additional ventilation must be ensured if the temperature in the base
unit exceeds 35°C.
1. Position the undersink unit as close to the tap as possible.
Pull
Press collet
2. Connect the water inlet to the angle valve (not supplied). Use the flexible hose
tube
supplied to make this connection.
3. Connect the tap hoses to the undersink unit. Ensure there is a constant fall from the
tap down to the undersink unit. Trim the hoses to avoid loops and kinks. The hoses
must not be lengthened. Use the spring clamps supplied to fasten the silicone hoses
in place.
a. Connect the red marked silicone hose to the boiling water connection.
b. Connect the unmarked silicone hose to the steam connection.
c. Connect the Y adapter to the steel connecting pipe of the tap.
d. Connect both the cold water connection and the sparkling water connection of the
Steam
Boiling
water
4. Connect the signal leads of the tap and the undersink unit. Attach the plug
connection at a location away from any water splashes.
5. Position the carbon dioxide gas bottle upright against a wall within reach of the gas
connection hose.
6. Install the gas bottle holder at the location where the carbon dioxide bottle is to
stand so that it can be secured against toppling over.
Please note that the room where a carbon dioxide gas bottle is placed must
have a minimum room volume of 38 m
7. Secure the gas bottle in an upright position to the gas bottle holder.
manuals search engine
undersink unit to the free ends of the Y adapter. First trim the plastic hoses to the
required length and fit the pipe insulation over them.
21
for every kg of bottle capacity.
