1. Planning installation and networking

Installation circuits and capacity

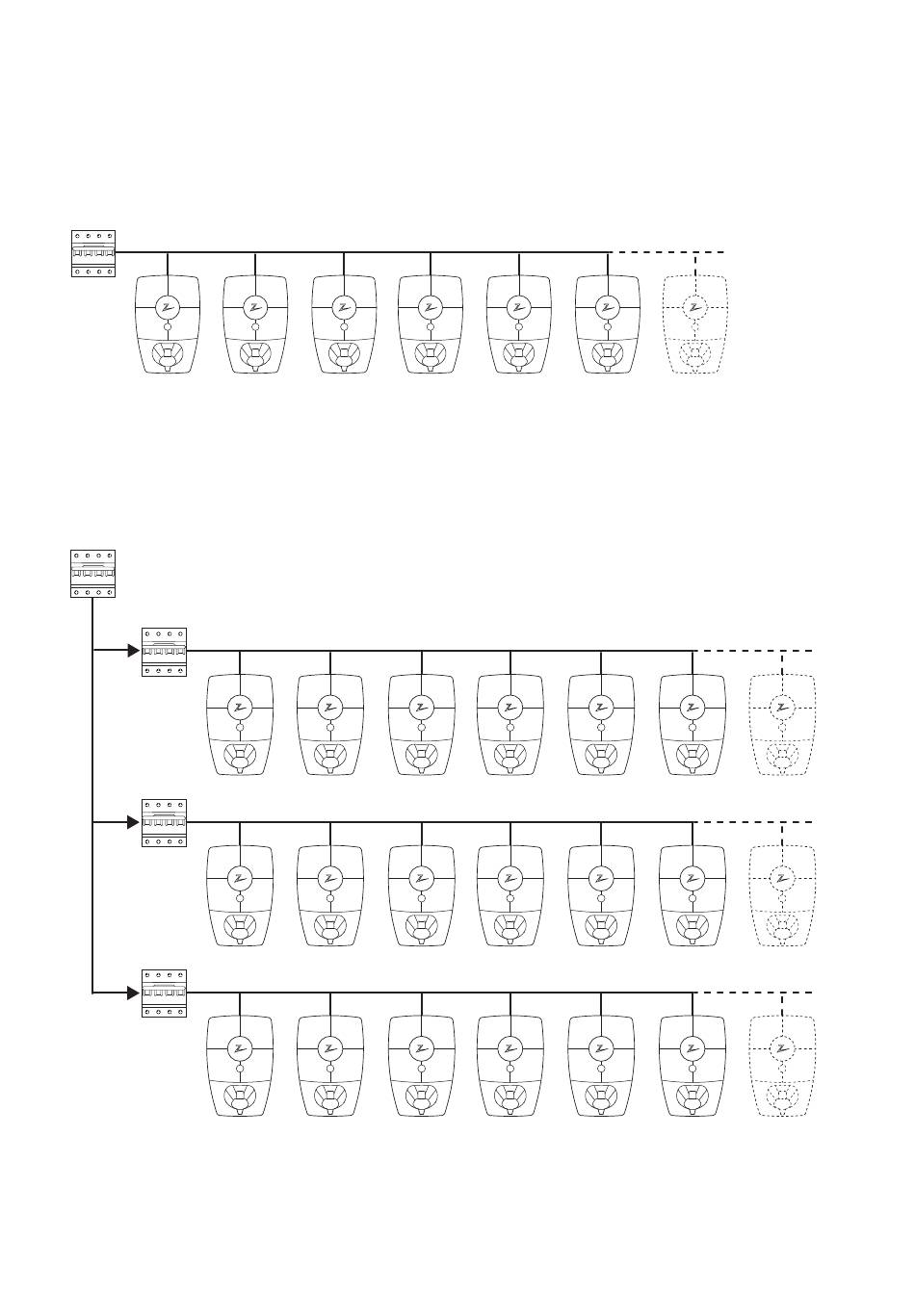

ZAPTEC Pro can have a protection device not exceeding 63A connected in series.
Max 63A fuse
When using rail systems with higher conduction, for example, a fuse is installed before the charging station.
The fuse must not exceed 63A.
ZAPTEC Portal permits a system that takes into account the limitations at every level, such as a fuse not exceeding 125A.
125A fuse (for example)
Max 63A fuse
Max 63A fuse
Max 63A fuse
In some cases, it will be necessary to select a value for a protection device connected in series that is lower than the physical
protection of the charging system. This is indicated in ZAPTEC Portal and is used as a limitation for the permitted power
consumption from the charging system.
If you use a three-phase IT network for installation, we recommend that you use a four-conductor cable in case you want to
install a transformer at a later date for better charging performance. This will allow you to make the neutral connection in the
fuse box rather than at each individual charging station, which will make upgrading easier in the future.
