10

Anhang

10.1

Technische Daten

10.1.1

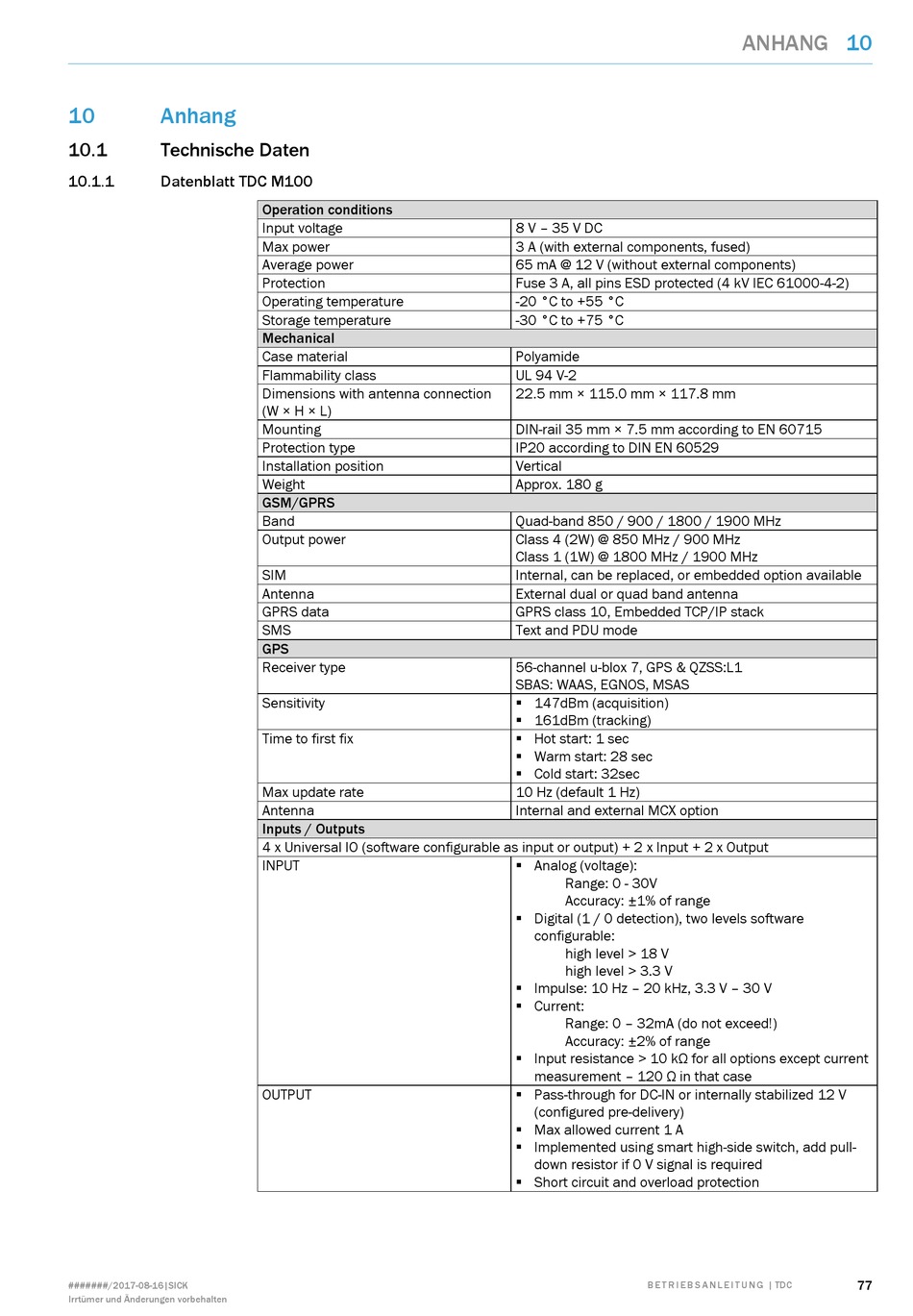

Datenblatt TDC M100

#######/2017-08-16|SICK
Irrtümer und Änderungen vorbehalten
Operation conditions
Input voltage
Max power
Average power
Protection
Operating temperature
Storage temperature
Mechanical
Case material
Flammability class
Dimensions with antenna connection
(W × H × L)
Mounting
Protection type
Installation position
Weight
GSM/GPRS
Band
Output power
SIM
Antenna
GPRS data
SMS
GPS
Receiver type
Sensitivity
Time to first fix
Max update rate
Antenna
Inputs / Outputs
4 x Universal IO (software configurable as input or output) + 2 x Input + 2 x Output
INPUT
OUTPUT
8 V – 35 V DC
3 A (with external components, fused)
65 mA @ 12 V (without external components)
Fuse 3 A, all pins ESD protected (4 kV IEC 61000-4-2)
-20 °C to +55 °C
-30 °C to +75 °C
Polyamide
UL 94 V-2
22.5 mm × 115.0 mm × 117.8 mm
DIN-rail 35 mm × 7.5 mm according to EN 60715
IP20 according to DIN EN 60529
Vertical
Approx. 180 g
Quad-band 850 / 900 / 1800 / 1900 MHz
Class 4 (2W) @ 850 MHz / 900 MHz
Class 1 (1W) @ 1800 MHz / 1900 MHz
Internal, can be replaced, or embedded option available
External dual or quad band antenna
GPRS class 10, Embedded TCP/IP stack
Text and PDU mode
56-channel u-blox 7, GPS & QZSS:L1
SBAS: WAAS, EGNOS, MSAS
 147dBm (acquisition)
 161dBm (tracking)
 Hot start: 1 sec
 Warm start: 28 sec
 Cold start: 32sec
10 Hz (default 1 Hz)
Internal and external MCX option
 Analog (voltage):
Range: 0 - 30V
Accuracy: ±1% of range
 Digital (1 / 0 detection), two levels software
configurable:
high level > 18 V
high level > 3.3 V
 Impulse: 10 Hz – 20 kHz, 3.3 V – 30 V
 Current:
Range: 0 – 32mA (do not exceed!)
Accuracy: ±2% of range
 Input resistance > 10 kΩ for all options except current
measurement – 120 Ω in that case
 Pass-through for DC-IN or internally stabilized 12 V
(configured pre-delivery)
 Max allowed current 1 A
 Implemented using smart high-side switch, add pull-
down resistor if 0 V signal is required
 Short circuit and overload protection
