Appendix
51.5 mm
157 mm
175 mm
1

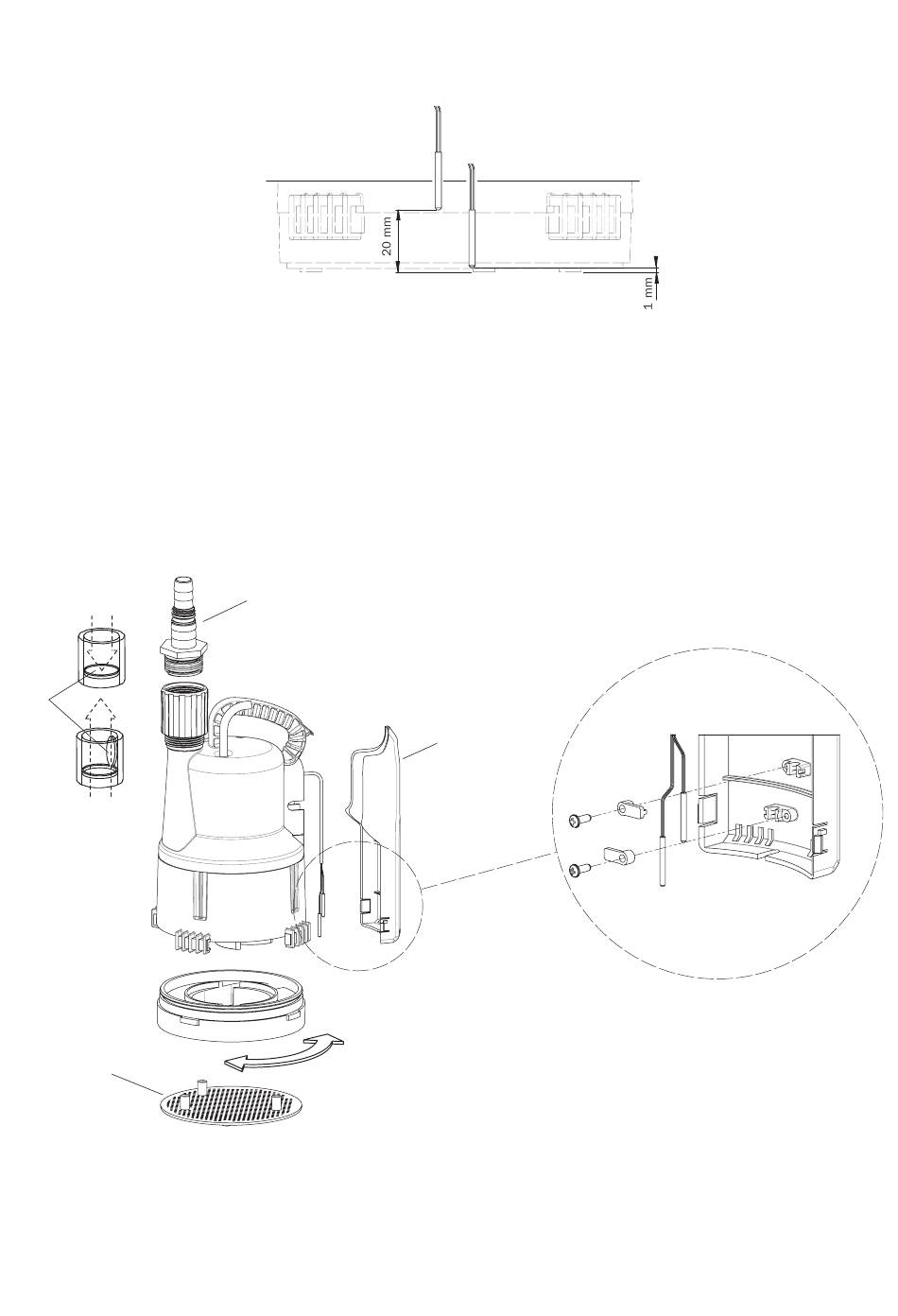

Assembly illustration
2
4
Moisture sensor switching levels
A = On sensor, B = Off sensor
157 mm
175 mm
3
1. Hose adaptor
1
2. Non-return valve
3. Sensor cover
4. Inlet screen
7
A
B
Figure 3
3
Attention:
Take care if separating the sensors from
the cover immediately after the pump is
switched off as they become hot when
in use (approx 60 °C).
