5.3 Installation

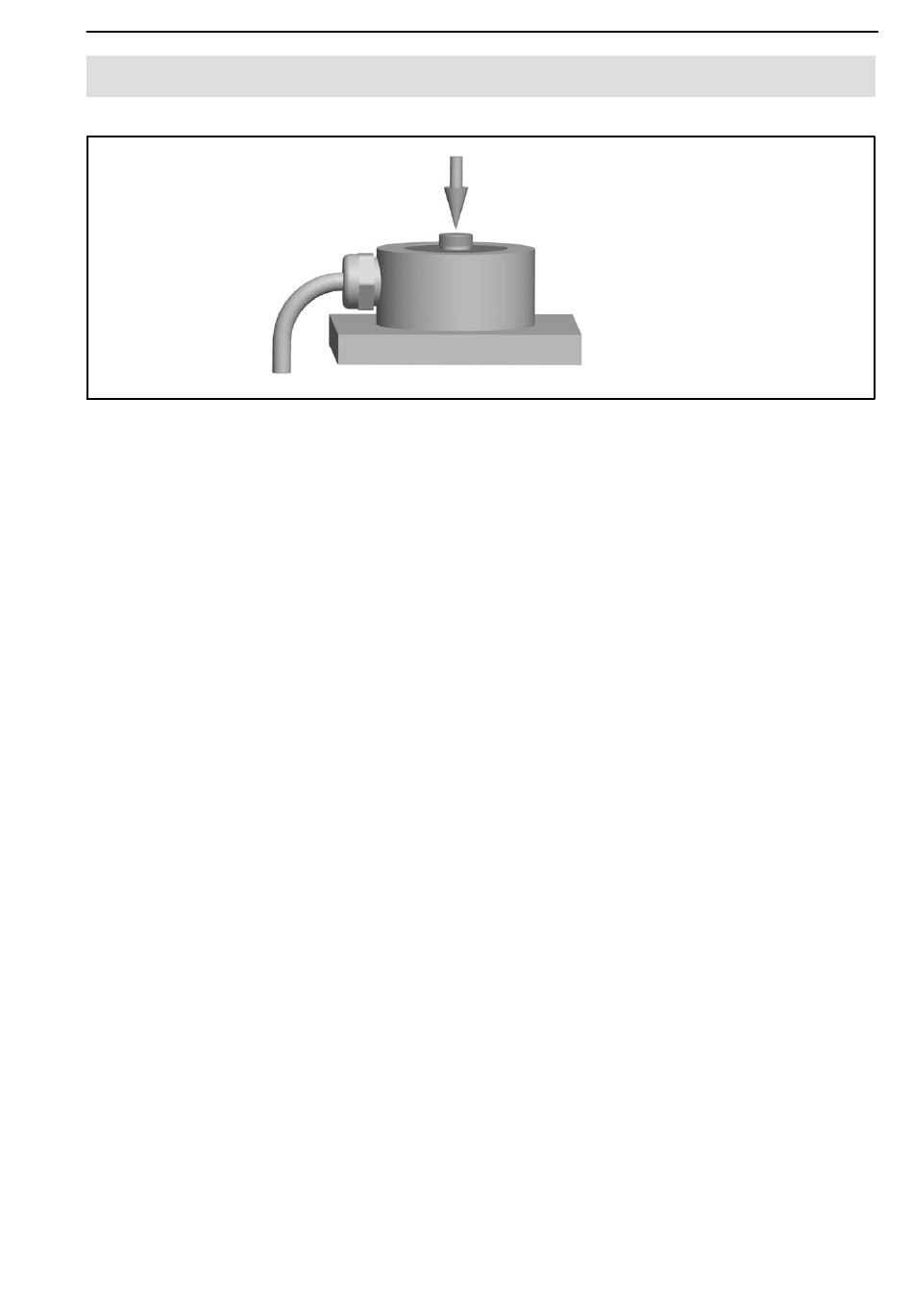

Fig 5.1: Force application
Force application is implemented via the ball‐shaped load button on the top of
the transducer (Fig 5.1).
The component that transfer the force to the ball‐shaped load button must be
clean and ground. Recommended hardness: 43 HRC.
