– PCI-Adapterkarte Typ 1
PCI-Adapterkartenbaugruppe

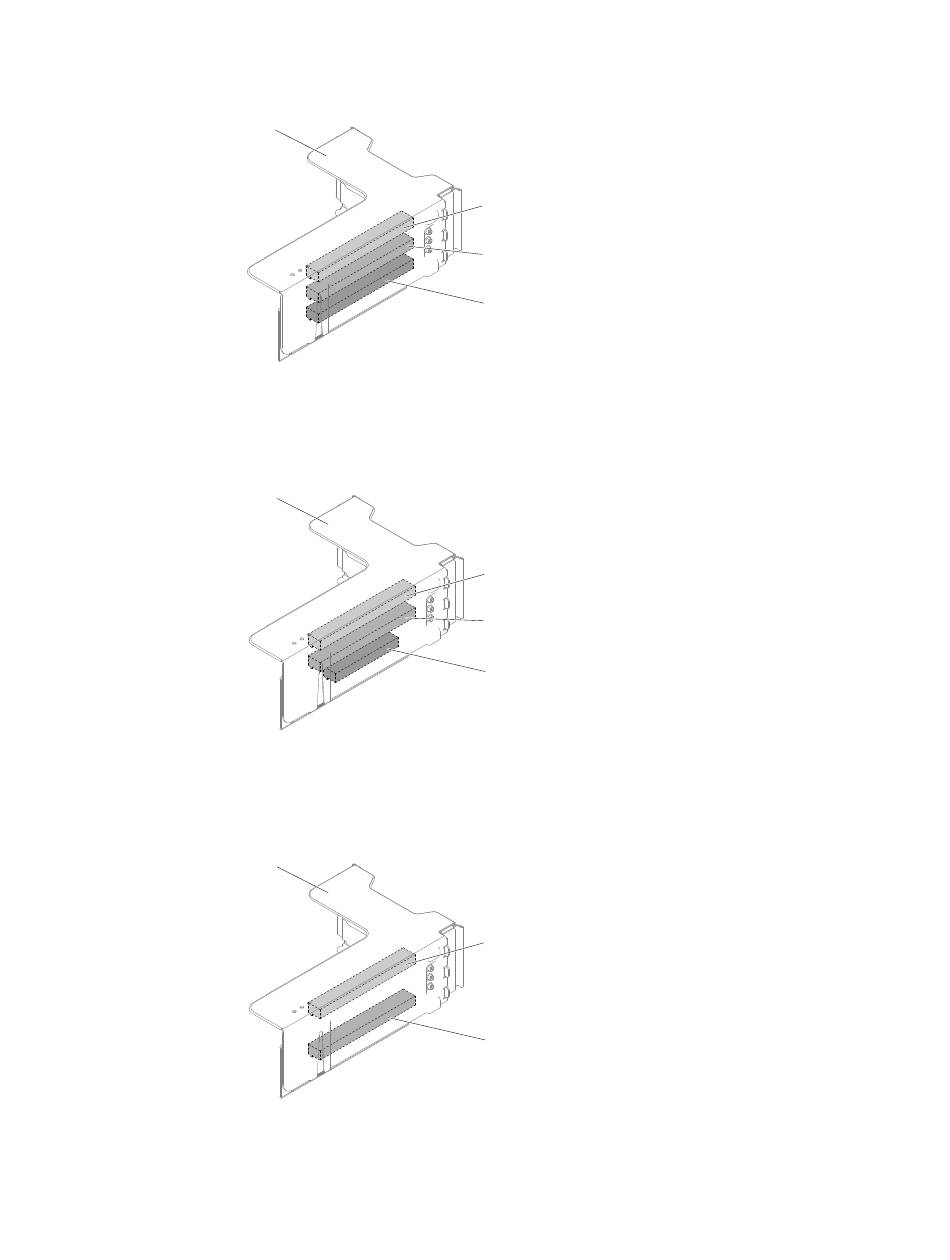

Abbildung 32. PCI-Adapterkarte Typ 1
– PCI-Adapterkarte Typ 2
PCI-Adapterkartenbaugruppe
Abbildung 33. PCI-Adapterkarte Typ 2
– PCI-Adapterkarte Typ 3
PCI-Adapterkartenbaugruppe
Abbildung 34. PCI-Adapterkarte Typ 3
– PCI-Adapterkarte Typ 4
38
Installations- und Servicehandbuch zu Lenovo Storage DX8200
Steckplatz 1, PCIe x8
Steckplatz 2, PCIe x8
Steckplatz 3, PCIe x8
Steckplatz 1, PCIe x8
Steckplatz 2, PCIe x8
Steckplatz 3, ML2
Steckplatz 1, PCIe x16
Steckplatz 3, PCIe x8
