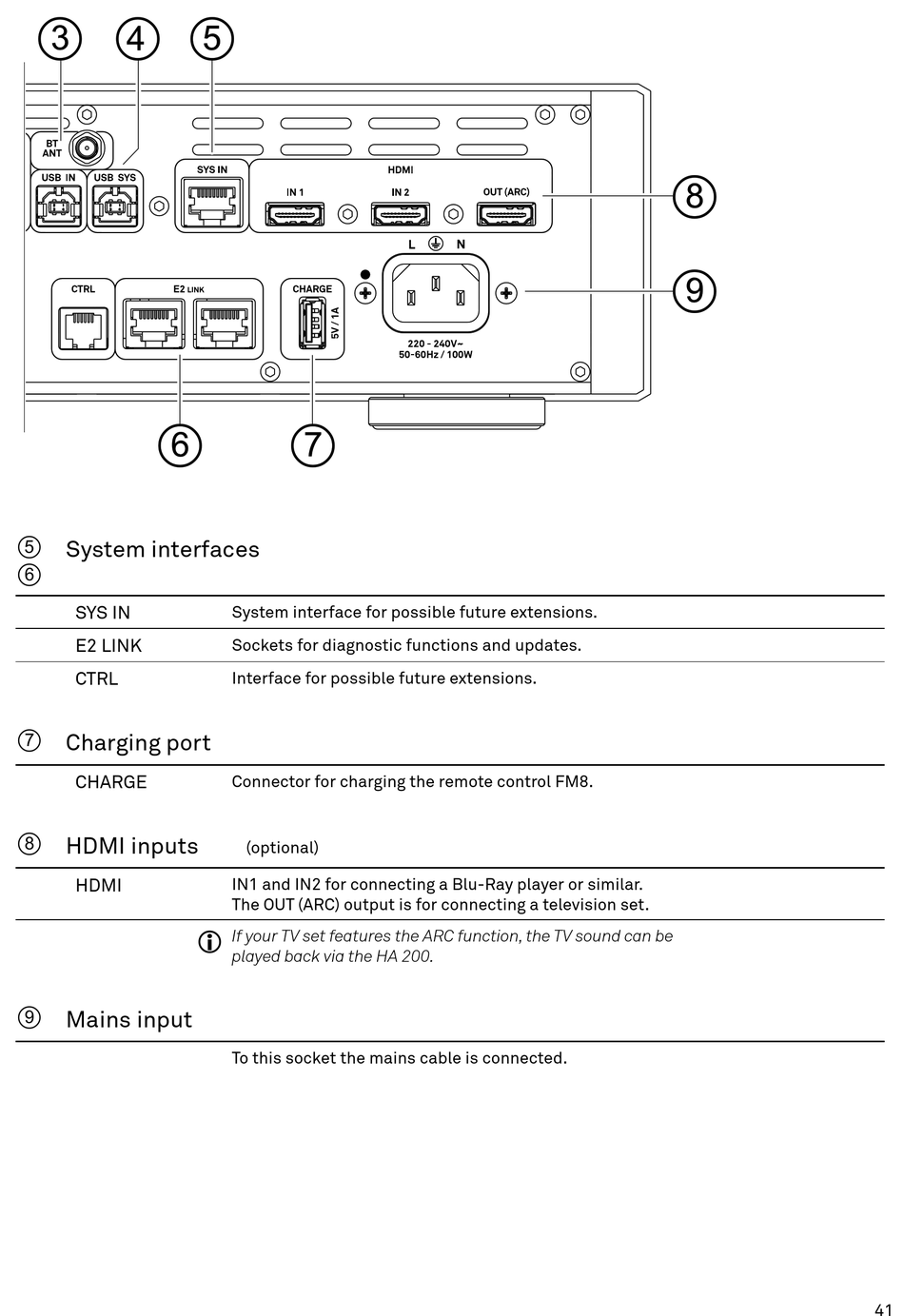

5
System interfaces
6
SYS IN
E2 LINK
CTRL

7 Charging port

CHARGE

8 HDMI inputs

HDMI

9 Mains input

System interface for possible future extensions.
Sockets for diagnostic functions and updates.
Interface for possible future extensions.
Connector for charging the remote control FM8.
(optional)
IN1 and IN2 for connecting a Blu-Ray player or similar.
The OUT (ARC) output is for connecting a television set.
If your TV set features the ARC function, the TV sound can be
j
played back via the HA 200.
To this socket the mains cable is connected.
41
