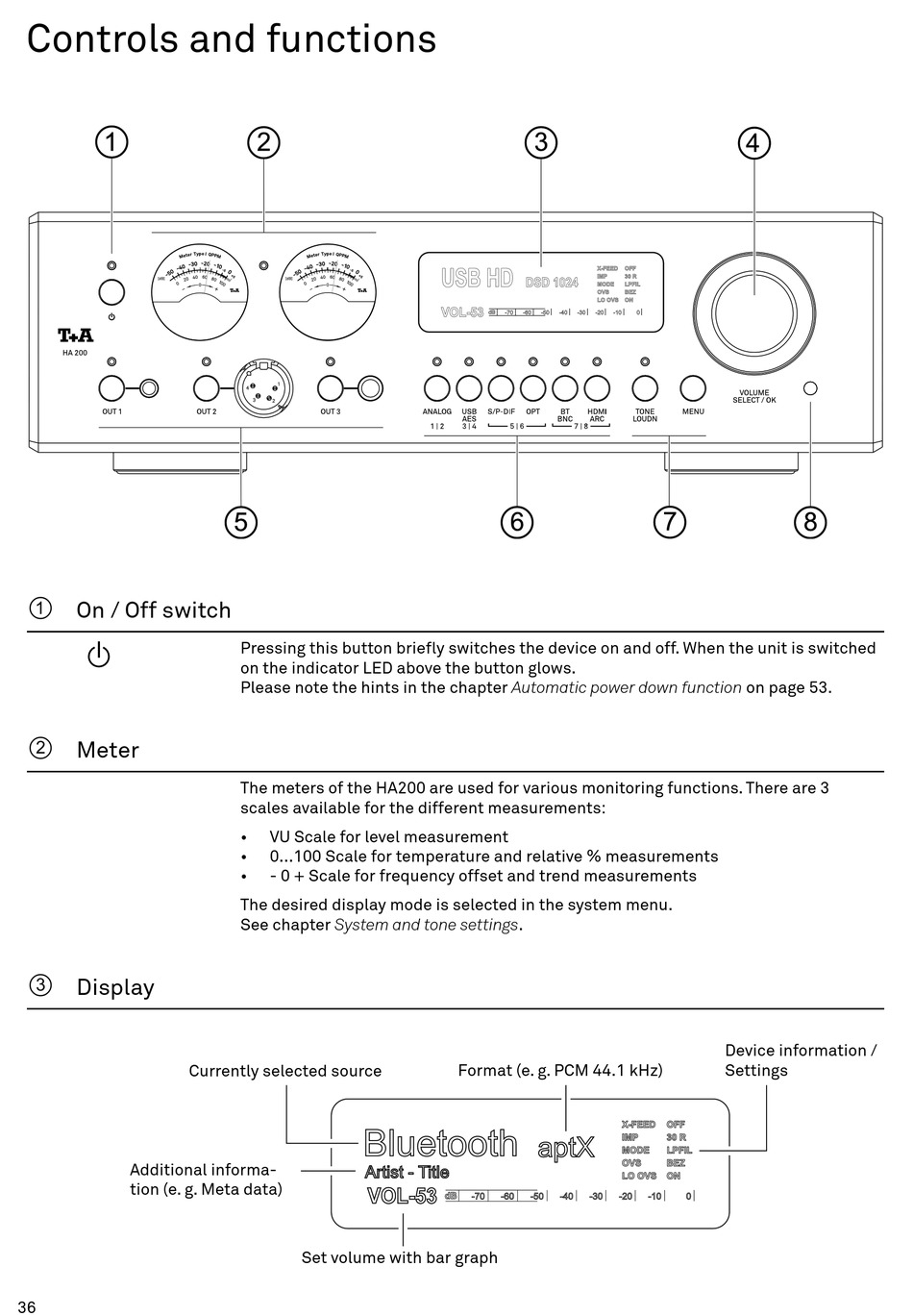

Controls and functions

1 On / Off switch

2

Meter

3

Display

Currently selected source
Additional informa-
tion (e. g. Meta data)
36
Pressing this button briefly switches the device on and off. When the unit is switched
on the indicator LED above the button glows.
Please note the hints in the chapter Automatic power down function on page 53.
The meters of the HA200 are used for various monitoring functions. There are 3
scales available for the different measurements:
• VU Scale for level measurement
• 0...100 Scale for temperature and relative % measurements
• - 0 + Scale for frequency offset and trend measurements
The desired display mode is selected in the system menu.
See chapter System and tone settings.
Set volume with bar graph
Format (e. g. PCM 44.1 kHz)
Device information /
Settings
