Connection to the Pump

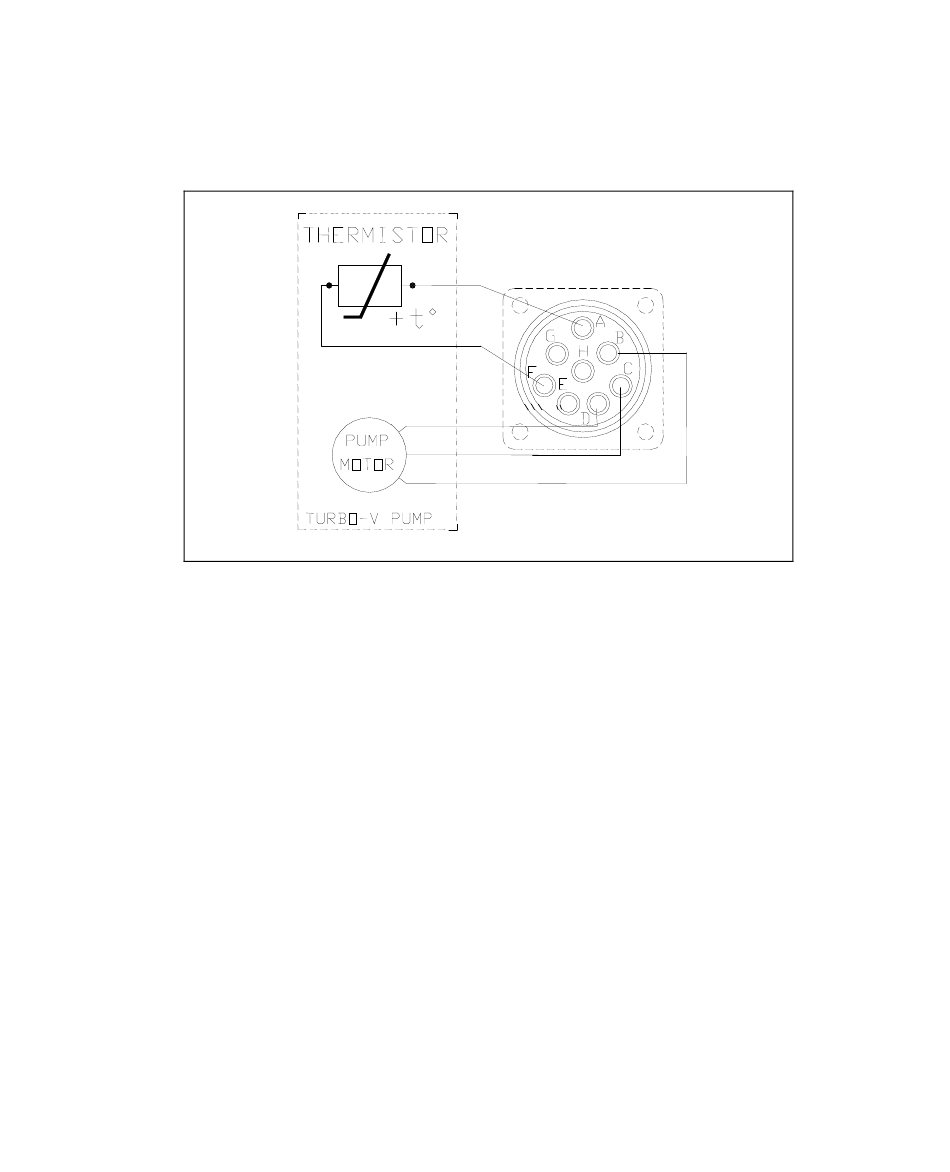

Figure 26
The turbopump is connected to the controller through an 8-pin connector. Pins
B, C and D are the 3-phase supply to the motor, pins A and F are connected to
the temperature sensor (NTC type, 30 KΩ resistance at 25 °C) and pins E, G
and H are not connected.
If the temperature sensor is disconnected, the pump will not start. To prevent
damage to the pump when the temperature exceeds 60 °C, the sensor
automatically cuts out the power supply.
Turbo-V 903 Pumping System User Manual / 87-901-016-01
Technical Information

Connection to the Pump

(A)
