Description of the TV 903 Pumping System

The TV 903 Pumping System is composed by a pump with an envelope with
fins and a shroud with two fans and a dedicated integrated controller (969-
6500).
The pump is equipped with a custom ISO 160 F high vacuum flange.

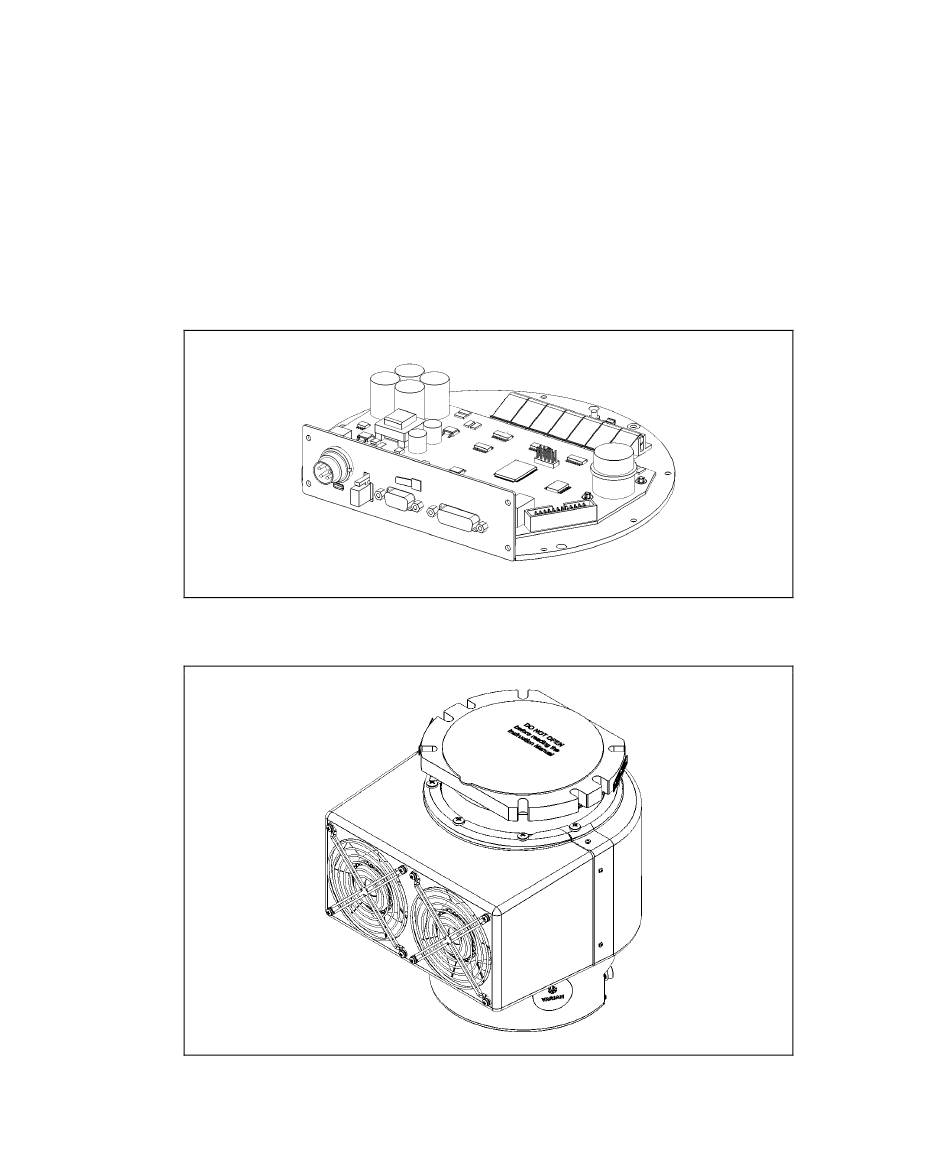

The following pictures show the pump and the controller.
Figure 2
Figure 3
Turbo-V 903 Pumping System User Manual / 87-901-016-01

Description of the TV 903 Pumping System

Controller model 969-6500
Pumping System model 969-8811
